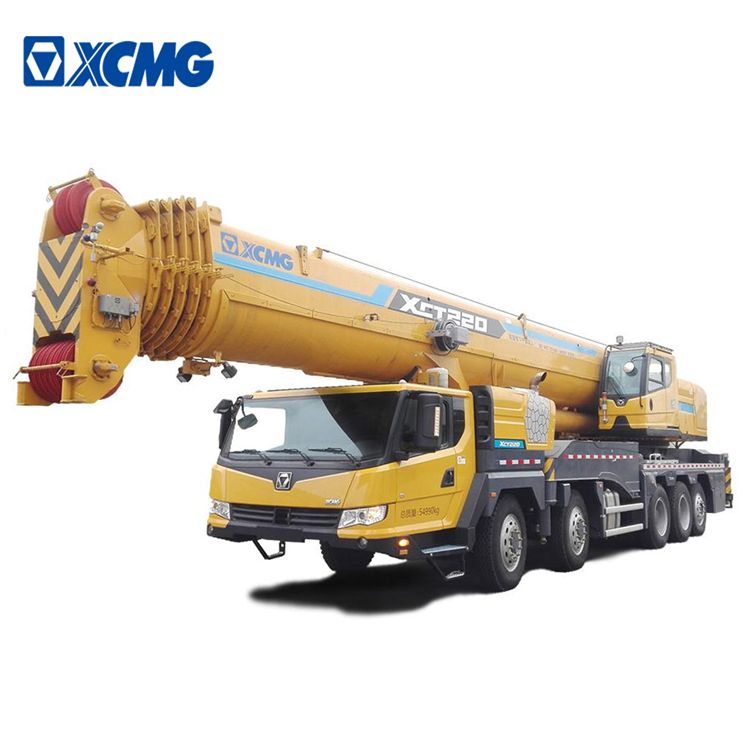

XCMG Official 220 Ton New Mobile Crane XCA220 All Terrain Cranes for Sale
.jpg)
Summary
- Model Number:XCA220
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Span:7.6m
- Max. Lifting Height:73.5m
- Rated Lifting Moment:7393kN.m
- Rated Loading Capacity:220t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:220000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Red
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 220 Ton New Mobile Crane XCA220 All Terrain Cranes.

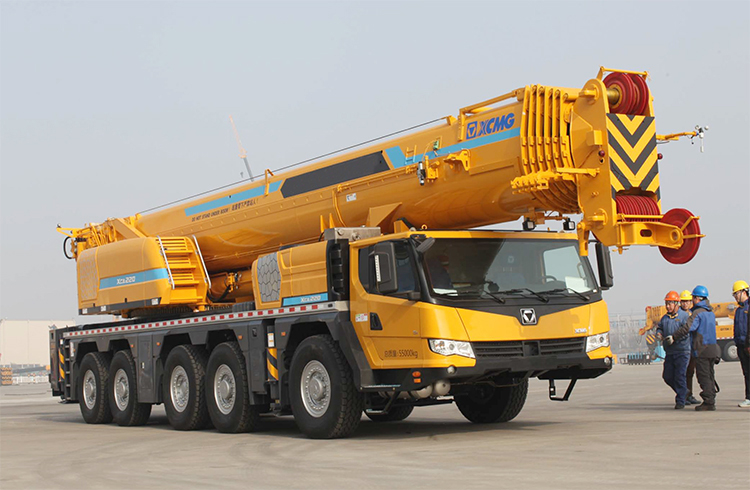

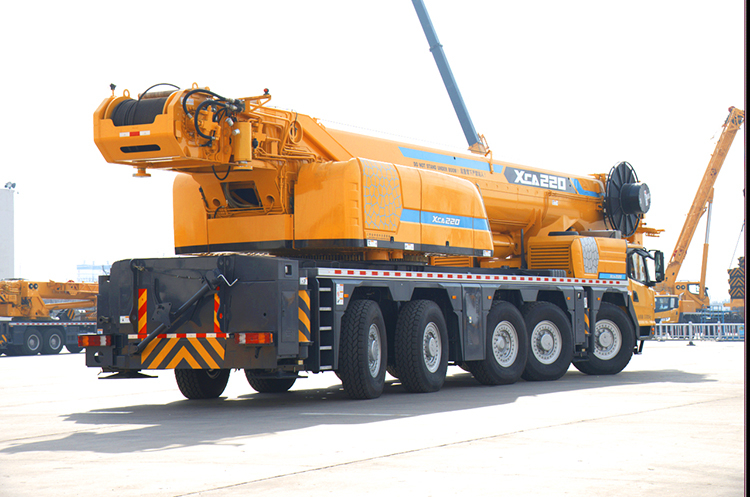

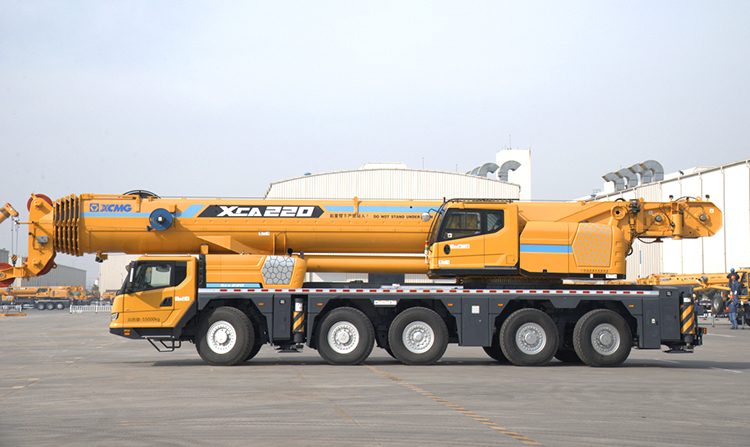

The crane is a five-axle 220 t All Terrain Crane with leading lifting performance.
1. Power and traveling performance * Rated power 360kw, max. torque 2200N.m. * Max. travel speed 84Km/h, Max. grade ability 67%.
2. Large tonnage crane's mono-engine system * The whole vehicle shares the chassis engine. The power is transferred via the mechanic transmission to the upper body and supplies it with the power.
* Maintenance is to be carried out only on the mono-engine chassis system thus reducing the workload of maintenance. The annual maintenance cost of dynamic system is saved for more than 40%.
3. New highly efficient energy-saving hydraulic system * Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly. * Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.
4. Manoeuvrable All-axle steering, small turning radius and free changeover of 6WD/8WD are available. 6WD is used to drive on roads, which is economic. 8WD is suitable for off-road travel and jobsite transfer. Max. grade ability is 67%, taking the lead in the industry.
|
Item |
Parameter |
Unit |
|
Whole length |
15500 |
(mm) |
|
Full width of the whole machine |
2980 |
(mm) |
|
Whole machine high |
3930 |
(mm) |
|
Wheelbase |
2650+1650+2500+1650 |
(mm) |
|
Tread |
2590 |
(mm) |
|
General quality of running state |
55000 |
(kg) |
|
Axle load |
12000×3+9500×2 |
(kg) |
|
Engine rated power |
361.1/1800 |
(kw/(r/min)) |
|
Engine rated torque |
2200/1300 |
(N.m/(r/min)) |
|
Maximum travel speed |
84 |
(km/h) |
|
Minimum stable running speed |
1~1.5 |
(km/h) |
|
Minimum turning diameter |
18.5 |
(m) |
|
Minimum turning diameter |
22.5 |
(m) |
|
Maximum climb |
67 |
(%) |
|
Minimum ground clearance |
280 |
(mm) |
|
Approach angle |
18 |
(°) |
|
Departure angle |
14 |
(°) |
|
Maximum rated total weight |
220 |
(t) |
|
Minimum rating |
3 |
(m) |
|
Maximum lifting torque of the basic arm |
7393 |
(kN·m) |
|
Turning radius |
5030 |
(mm) |
