- Brand Name:XCMG
- Place of Origin:China
- Product Name:G5BEF7E4D77E23
- Display online time:2019-11-11
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:3 Months
- Moving Type:other
- Rated lifting capacity:9000kg
- Max. lifting height :21450mm
- Max. lifting speed:675mm/s
- Max. travel speed:30km/h
- Engine rated power:164/2300kW /(r/min)

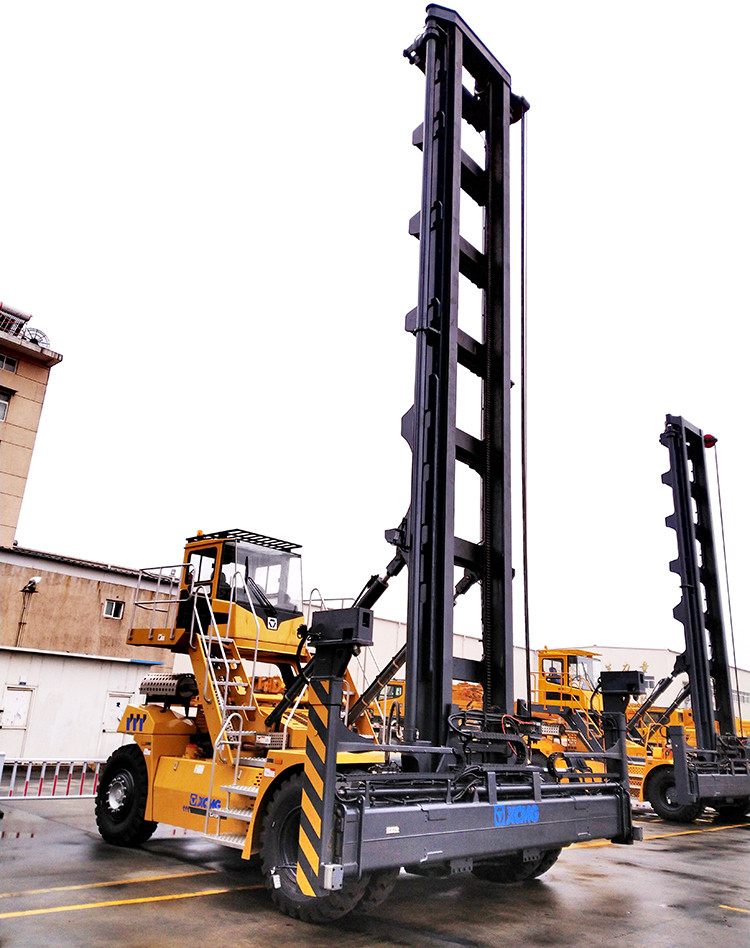

9 t empty container handler with highest operation efficiency. Unique low speed large torque optimal transmission chain matched and high power performance contribute to high job site transfer efficiency; with innovative intelligent mast technology, the spreader height can be positioned by "one-key" operation, resulting in working efficiency 18% higher than the competitive products in the industry; three energy-saving measures, such as multi-body dynamic optimization matching technology, flow self-adaptive load sensitive hydraulic system and mast potential energy recovery technology, lead to more fuel-saving.
(1) Intelligent and efficient
Unique low speed large torque optimal transmission chain, high power performance and max. travel speed of 30 km/h contribute to manoeuver ability and quick job site transfer.
With innovative intelligent mast technology, the spreader height can be positioned by "one-key" operation, resulting in 18% improvement in working efficiency, leading in the industry.
(2) Safe and free from worry
With accumulation of experience for 75 years in crane safety control and the technologies developed for empty container handlers, such as overturning prevention, driving safety active protection, detection of driver in place, the active safety of the machine during driving and lifting operation are improved to the greatest extent.
(3) Energy-saving and economical
With multi-body dynamic optimization matching technology, flow self-adaptive load sensitive hydraulic system and mast potential energy recovery technology integrated, light weight, low energy loss and energy saving of 5% ~ 20% are available.
(4) Comfortable driving
Ten humanization-oriented designs, such as panorama driver's cab,man-machine interactive system for providing abundant information, high-power air conditioning and perfect lighting system, etc. offer more comfortable driving and operating environment.
Note: due to the continuous modification and improvement of products, we reserve the rights to modify product model, parameters and configuration without any notice.
|Rated lifting capacity||kg||9000|
|Max. lifting height||mm||21450|
|Max. lifting speed||mm/s||675|
|Max. travel speed||km/h||30|
|Engine rated power||kW /(r/min)||164/2300|
