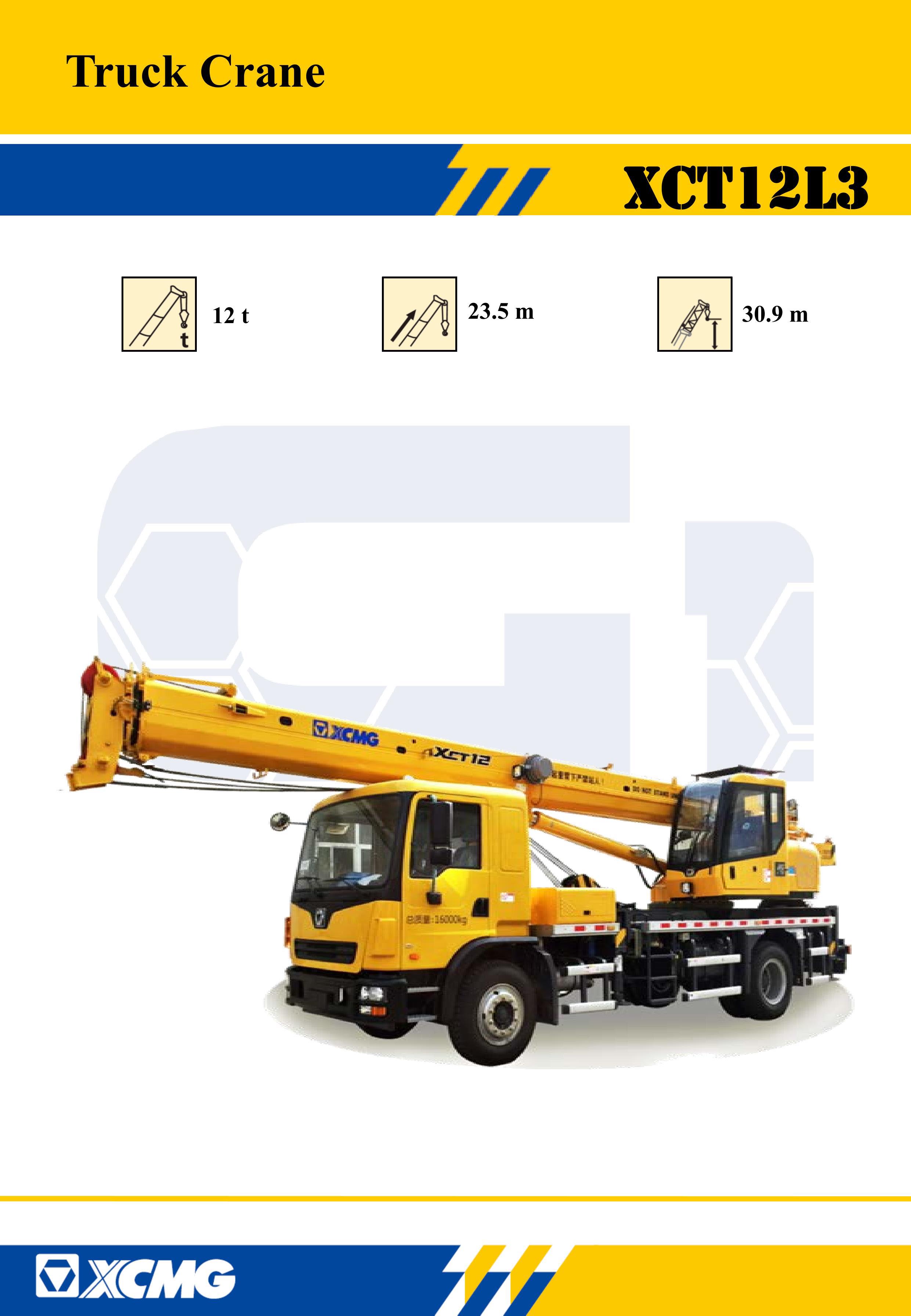

- Model Number:XCT12L3
- Brand Name:XCMG
- Place of Origin:China
- Max. Lifting Height:30.9mm
- Max. Lifting Load:12t
- Application:Construction Industry
- Moving Type:Wheel
- Overall length:10850mm
- Overall width:2500mm
- Overall height:3550mm
- Total weight in travel:16000kg
- Engine Model:SC7H230Q5
- Engine rated power:170/2300
- Engine rated torque:900Nm/1200-1600rpm
- Driving speed(km/h):2～90
- Min. turning diameter:18m
- Min. ground clearance:250mm
- Base boom:9.4m
- Max. main boom:23.5m
Designed and manufactured by XCMG, with all covered walking surface, anti-torsion box structure, made of imported high strength steel.
Designed and manufactured by XCMG; Full- covered walking platform, made of high-strength steel
4 outriggers, H-shaped arrangement,
lateral and vertical outrigger controlled
by the hydr-aulic control. Both sides of
the chassis equip-ed with electronic
control console, the console installed
with luminous level, lighting and speed
buttons; outrigger cylinders equipped
with one-way valve, and the vertical
outrigger has two-way hydraulic lock.
Float...(p350mmOutrigger reaction force at max. lifting capacity... 189KN
Variable pump driven by chassis engine, used for hoisting, elevating, telescoping and slewing operation. Imported electro-hydraulic direction valve, matching perfectly stably. Air-cooled hydraulic oil cooler, which may effectively reduce the temperature of oil in the system, suction filter and return filter.
SC7H230Q5 , WP6.220E50 , in-line
six-cylinder water-cooled EFI diesel engine, manufactured by Daimler, rated power170/2300,162/2300 , max. torque 900/1200-1600,850/1200-1600„the national V emission standards.
Fuel tank capacity : 200L
Mechanical transmission with synchronizer from Shanxi Gear, 6 forward gears and 2 reverse gear
Main winch system
Driven by a hydraulic motor, with built-in planetary gear reducer and constant closed brake fitted, Drum with Lebus-type grooving, non-rotating wire rope.
2-axle chassis, 2nd axles fbr driving, 1st axle for steering, high strength load bearing axles designed by foreign advanced technology, with reliable performance.
1st axle: single tire, for steering;
2nd axle: double tire, for driving.
Single-row roller slewing ring with external teeth may continuously slew 3600 after being driven by single-slewing gear arranged at its right side. Each planetary gear slewing reducer is actuated by a hydraulic motor.Power control and free-sliding function are available, and speed may be infinitely regulated.
Hydro-pneumatic suspension is adopted for all axles, providing good shock absorbing effect. Functions of automatic leveling, susp-ension lifting, elastic/rigid state switch-over, etc. are available.
Single-cylinderwith a self-compensating electronic- proportional control balance valve equipped.
10.00R20 ( Optional)
Ergonomic cab design, with swing-out doors, safety glass, sun visor, adjustable seatsand protective rails equipped. Fan is standard and air-conditioner is optional.
Double circuit, air braking, drum brake.
Service brake: double-circuit air pressure brake, acting on all wheels.
Parking brake: spring energy brake.
Auxiliary brake: engine retarded brake, engine exhaust brake, safe and reliable, which prolongs the service life of brake friction disc.
Hydraulic counterbalance valve;
Hydraulic relief valve; Double-way hydraulic valve;LMI;Spring return system of control levers;Lowering limiter for preventing wire rope from over-releasing;Anti-two block at boom head for preventing wire rope from over-winding.
Mechanical steering system with hydraulic boost.
Total weight of 0.9t.
Equipped with four-point connecting
structure, thenew full driver's cab of
steel has open car doors on both sides.
The main drivers can adjust height
automatically. With double seats, the
passenger's seats can be used as simple
sleeper for temporary rest of drivers.
Safe glass with electric lift contributes
to good heat-proof effect. Automatically
adjustable rearview mirror is safe and
convenient. The steering wheel can
adjust the height and angle, which is
suitable for operators of different
heights. LCD, bus control, centralized
information show; and the layout of
center console with new combination is
safe and reasonable which adopts arc
design and represents humanization.
Fixed wiring harness connector save the
space of driver's cab with fixed plug-in
components. Integrated central
distribution box enhances the reliability
of electric system in driver's cab. The
application of PLC control system
improves the stability of chassis electric
and the efficiency of error
self-diagnosis. It is equipped with
standard CD player and
air-conditioner both for cooling and
Driven by a hydraulic motor, with built-in planetary gear reducer and constant closed brake fitted.
Drum with Lebus-type grooving, non-rotating wire rope.
24V DC, negative grounding, two 12V batteries inseries. Output voltage of generator is 28.5 ± 0.3 V output current is 70A.
made of high strength steel. The singlecylinder plus ropes system is used as telescoping system.Boom length8m〜25.5m
air conditioner in Operator's cab is optional
Single pulley, fitted on boom head, used
for single line operation.Its lifting
performance is the same as that for
boom, but could not exceed 2100Kg
Lattice welding structure, with 0° jib offset angles available.
Jib length 7m.
Product parts list is as mentioned above, please refer to the product quotation for specific parts.
No. of lines
Single hook ,Standard
Single hook ,Optional
Max. single line pull
Rope diameter/ length
0-130 m/min, single line,4th layer
Approx. 38s for boom elevation from -2° to 80°
Approx. 58s for boom extension from 9.4m to 23.5m
