- Summary
- Details
- Dimension(L*W*H):14640×5585×6430/15940×5585×6160mm
- Weight:125000kg
- Model Number:XE1300C
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Crawler Excavator
- Certification:CE/ISO9001
- Product Name:XE1300C
- Display online time:2019-11-07
- weight:125000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:crawler
- Operating weight:125000Kg
- Bucket capacity:5.0/5.8/6.7m³
- Rotating speed:4.8r/min
- Ground pressure:156kPa
- Max. digging height:13340/13390mm
- Max. dumping height:8580/8800mm
- Max. digging depth:7340/8700mm
- Max. digging reach:14090/15350mm

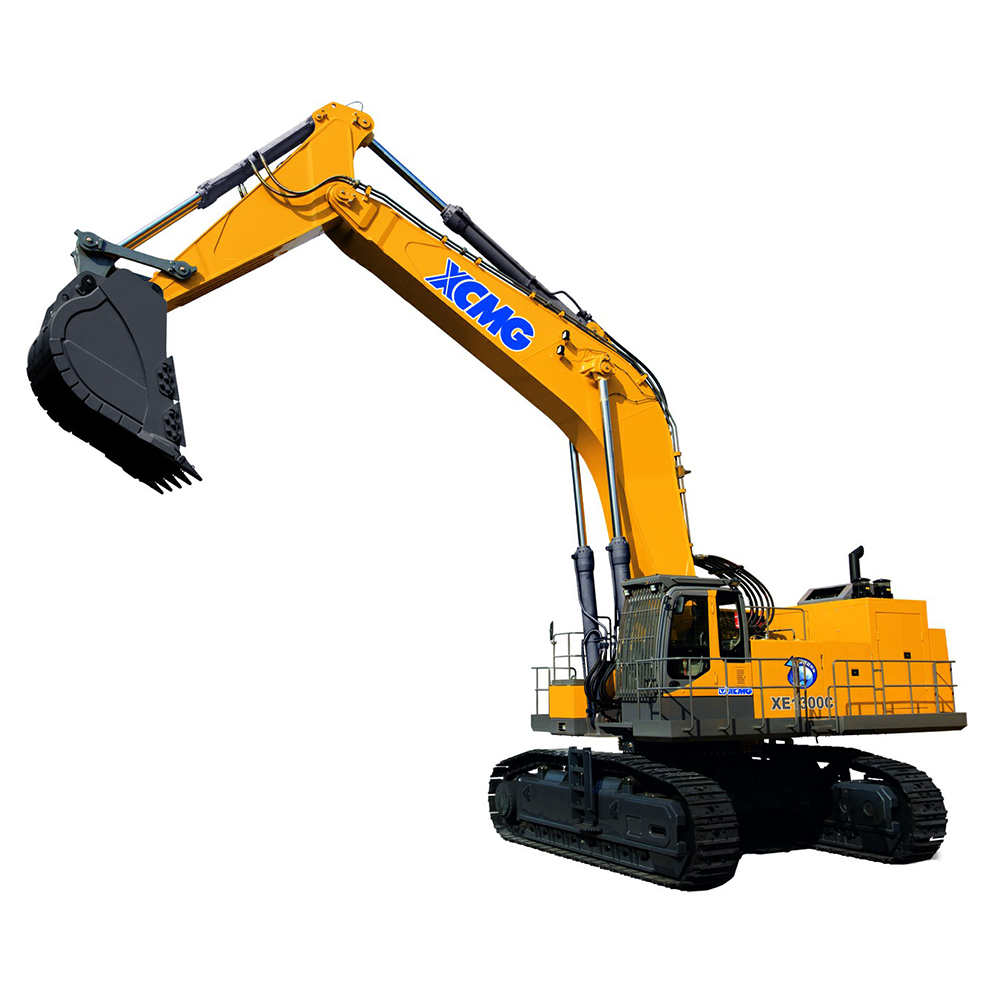

XE1300C Crawler Excavator
1、The overall layout and the axle load distribution are
more reasonable to achieve better traveling stability and the maximum traveling
speed is up to 40km/h to realize faster site transfer speed.
|
Description |
Unit |
Parameter value |
||
|
Operating weight |
kg |
125000 |
||
|
Bucket capacity |
m³ |
5.0
-6.7 |
||
|
Engine |
Model |
Engine |
QSK23-C760 |
|
|
Style |
Direct injection |
--- |
√ |
|
|
Four strokes |
--- |
√ |
||
|
Water cooling |
--- |
√ |
||
|
Turbo-charging |
--- |
√ |
||
|
Air to air intercooler |
--- |
√ |
||
|
No. of cylinders |
--- |
6 |
||
|
Output power |
kW/ r/min |
567/1800 |
||
|
torque/speed |
N.m |
3468/1350 |
||
|
Displacement |
L |
23.15 |
||
|
|
Travel speed（H/L) |
km/h |
2.7/1.6 |
|
|
Gradeability |
% |
70 |
||
|
Rotary
speed |
r/min |
4.8 |
||
|
Ground pressure |
kPa |
156 |
||
|
Hydraulic system |
Main pump |
-- |
3 |
|
|
Rated flow of main pump |
L/min |
3×531 |
||
|
Pressure of travel system |
MPa |
34.3 |
||
|
Pressure of pilot system |
MPa |
3.9 |
||
|
Oil Capacity |
Fuel tank capacity |
L |
1485 |
|
|
(Standard configuration 7.8m boom) |
Overall length |
mm |
14640 |
|
|
Overall width |
mm |
6430 |
||
|
Overall height |
mm |
5585 |
||
|
Track gauge |
mm |
4000 |
||
|
Track width |
mm |
700 |
||
|
Minimum ground clearance |
mm |
740 |
||
|
Track height |
mm |
1674 |
||
|
Track length |
mm |
6500 |
||
|
Wheel base of track |
mm |
5050 |
||
|
Ground clearance of counterweight |
mm |
1885 |
||
|
Distance from the tail to the rotary center |
mm |
4740 |
||
|
Swing radius of rear-end |
mm |
4870 |
||
|
(Standard configuration 9.1m boom) |
Overall length |
mm |
15940 |
|
|
Overall width |
mm |
6160 |
||
|
Overall height |
mm |
5585 |
||
|
Track gauge |
mm |
4000 |
||
|
Track width |
mm |
700 |
||
|
Minimum ground clearance |
mm |
740 |
||
|
Track height |
mm |
1674 |
||
|
Track length |
mm |
6500 |
||
|
Wheel base of track |
mm |
5050 |
||
|
Ground clearance of counterweight |
mm |
1885 |
||
|
Distance from the tail to the rotary center |
mm |
4740 |
||
|
Swing radius of rear-end |
mm |
4870 |
||
|
(Standard configuration 7.8m boom) |
Max. digging height |
mm |
13340 |
|
|
Max. dumping height |
mm |
8580 |
||
|
Max. digging depth |
mm |
7340 |
||
|
Max. vertical wall digging depth |
mm |
5670 |
||
|
Max. ground digging radius |
mm |
13640 |
||
|
(Standard configuration 9.1m boom) |
Max. digging height |
mm |
13390 |
|
|
Max. dumping height |
mm |
8800 |
||
|
Max. digging depth |
mm |
8700 |
||
|
Max. vertical wall digging depth |
mm |
8570 |
||
|
Max. ground digging radius |
mm |
7640 |
||
