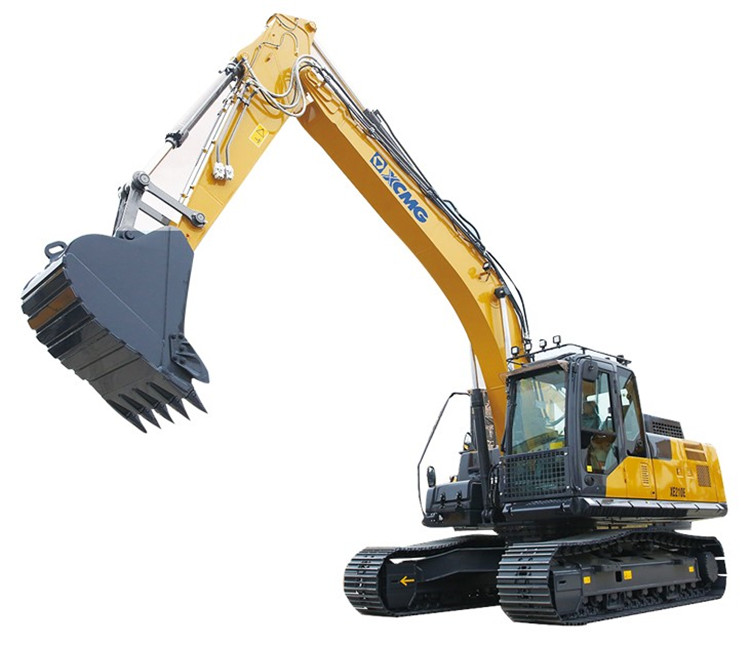

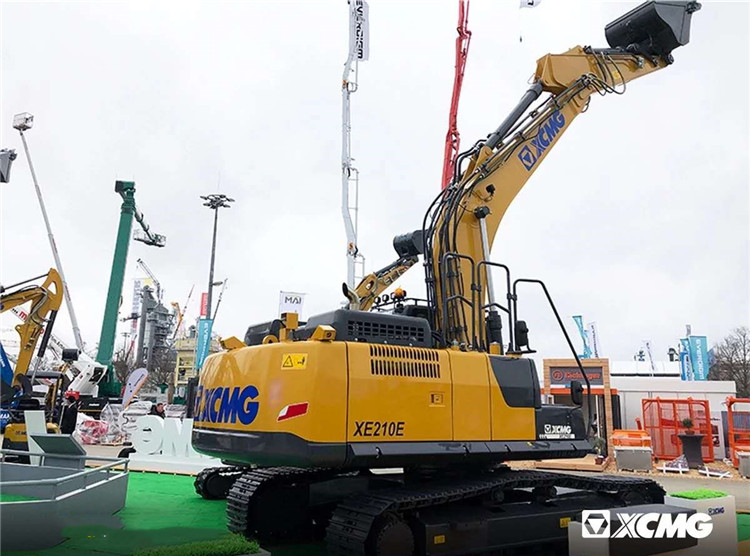

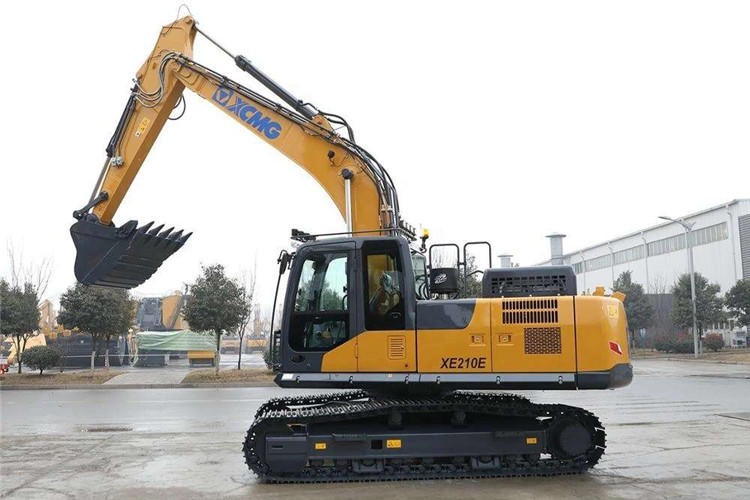

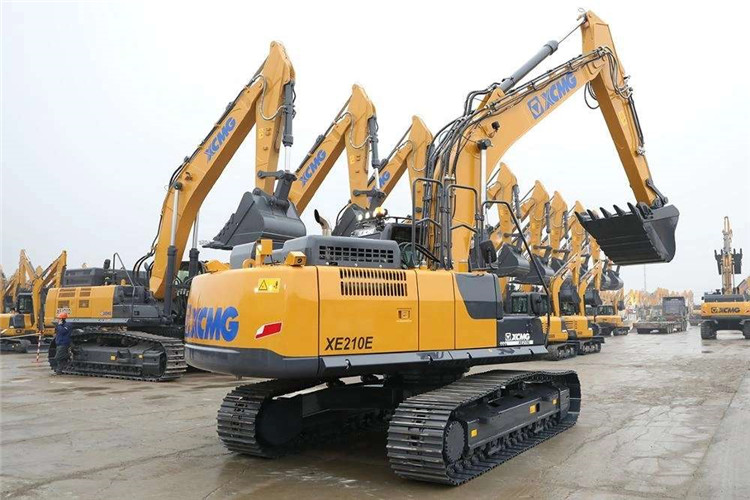

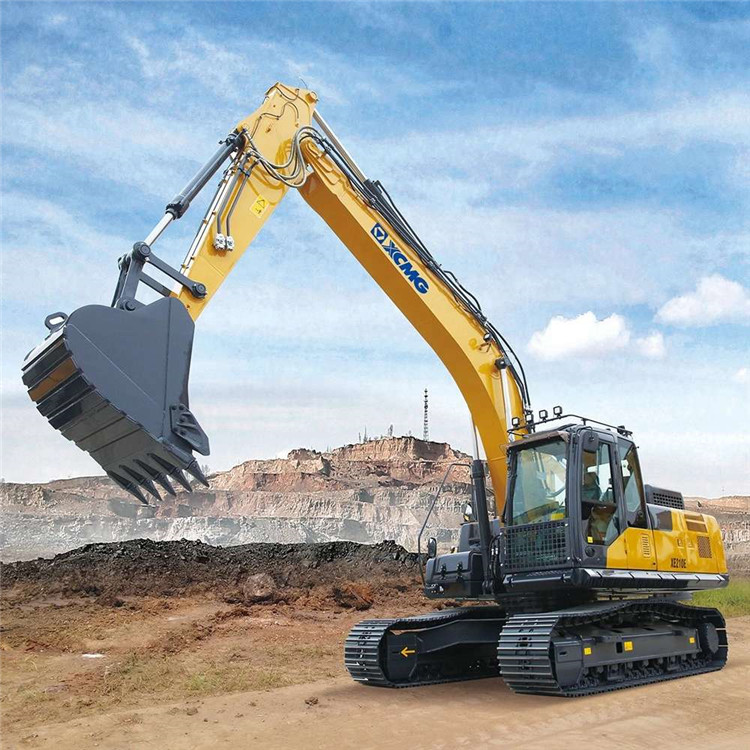

XCMG Excavator Digger 20 Tons Crawler Excavators XE210E Meets North America EPA Tier 4F Emissions
Summary
- Rated Speed:11.8r/min
- Max Digging Radius:9940mm
- Machine Weight:21000kg
- Maximum Digging Depth:6680mm
- Maximum Digging Height:9620mm
- Bucket capacity:1.2m3
- Operating Weight:21000kg
- Model Number:XE210E
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:21000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Excavator Digger 20 Tons Crawler Excavators
XE210E Meets North America
EPA Tier 4F Emissions.
1. Excellent performance of
high-end configuration
* With high pressure
common-rail electronic injection engine that meets EURO Ⅳemission regulations,
nitrogen oxides and particle emissions of engine decreases 90% compared with
that of Tier3. It achieves the best fuel injection control, improve combustion
efficiency, and is more energy-saving and environmentally friendly.
* Equipped with a new large diameter multi-way control
valve, hydraulic system is quick and efficient; Valve element is further
optimized to reduce internal pressure loss of the channel, improve
maneuverability and efficiency of the composite operation.
2. High quality driving experience
* High-performance silicone oil shock absorber with internal damping spring
will effectively isolate shock waves in specific frequency bands for improved
comfort.
* The new cab is complemented by luxurious interiors. The
panoramic sunroof has a wider view and operation buttons are centrally arranged
to fully upgrade the driving experience.
3. More reliable and durable
* Adopt a large number of special manufacturing process
and high-strength and wear-resistant steel to R&D and manufacture
structural parts; Strength and service life of products are greatly improved,
and various severe working conditions can be easily handled.
* Equipped with full-size heavy-duty reinforced chassis
structure and sprocket, idler, carrier roller, track roller and track, and reinforced
working equipment, it can ensure the stability of the whole machine while
satisfying the powerful digging force.
|
Sales model |
Unit |
XE210E |
|
|
Operating weight |
Kg |
21000-23000 |
|
|
Bucket capacity |
m³ |
0.9-1.2 |
|
|
Engine |
Model |
/ |
QSB6.7 |
|
No. of cylinders |
/ |
6 |
|
|
Rated power |
kw/rpm |
129/2100 |
|
|
Maximum
torque/speed |
N.m/rpm |
800/1500
|
|
|
Displacement |
L |
6.7 |
|
|
Main performance |
Travel speed |
km/h |
5.6/3.5 |
|
Swing speed |
r/min |
11.8 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
45 |
|
|
Bucket digging
force |
kN |
149 |
|
|
Arm digging
force |
kN |
111 |
|
|
Maximum tractive
force |
kN |
184 |
|
|
Hydraulic system |
Rated flow of
main pump |
L/min |
2×225 |
|
Main safety
valve pressure |
MPa |
34.3/37 |
|
|
Travel system
pressure |
MPa |
34.3 |
|
|
Swing system
pressure |
MPa |
27.5 |
|
|
Pilot system
pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank
capacity |
L |
420 |
|
Hydraulic tank
capacity |
L |
240 |
|
|
Engine oil
capacity |
L |
24 |
|
|
Appearance size |
A Overall length |
mm |
10220 |
|
B Overall width |
mm |
2990 |
|
|
C Overall height |
mm |
3180 |
|
|
D Width of
platform |
mm |
2830 |
|
|
E Track length |
mm |
4455 |
|
|
F Overall width
of chassis |
mm |
2990 |
|
|
G Track width |
mm |
600 |
|
|
H Wheel base of
crawler |
mm |
3647 |
|
|
I Track gauge |
mm |
2390 |
|
|
J Counterweight
clearance |
mm |
1056 |
|
|
K Min. ground
clearance |
mm |
485 |
|
|
L Min. tail
swing radius |
mm |
2985 |
|
|
M Track height |
mm |
810 |
|
|
Working scope |
A Max. digging
height |
mm |
9620 |
|
B Max. dumping
height |
mm |
6780 |
|
|
C Max. digging
depth |
mm |
6680 |
|
|
D Maximum depth
cut for 2240mm(8 ft) level bottom |
mm |
6500 |
|
|
E Max. vertical
wall digging depth |
mm |
5715 |
|
|
F Max. digging
radius |
mm |
9940 |
|
|
G Min. swing
radius |
mm |
3530 |
|
|
Standard |
Length of boom |
mm |
5680 |
|
Length of arm |
mm |
2910 |
|
|
Bucket capacity |
m³ |
1.05 |
|
|
Optional |
Length of boom |
m³ |
/ |
|
Length of arm |
m³ |
2710 |
|
|
Bucket capacity |
m³ |
1.3 Earthwork
bucket 0.93/1.0 Strengthened
bucket |
|
