XCMG official 26.5ton hydraulic crawler excavator XE265C china crawler excavator equipment price
Summary
- Rated Speed:11.3r/min
- Max Digging Radius:10240mm
- Machine Weight:25500kg
- Maximum Digging Depth:6895mm
- Maximum Digging Height:9662mm
- Bucket capacity:1.05~1.25m3
- Operating Weight:25500kg
- Model Number:XE265C
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- weight:25500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
26.5ton hydraulic crawler excavator XE265C china crawler
excavator equipment.
XCMG XE265C hydraulic excavator boasts strong power,
sufficient sturdiness, reliable durability, low fuel consumption, able to
provide users with excellent driving and control experience based on "cab
low-frequency noise analysis control", "improvement on excavator's
sound vibration comfortableness", "impact prevention of the control

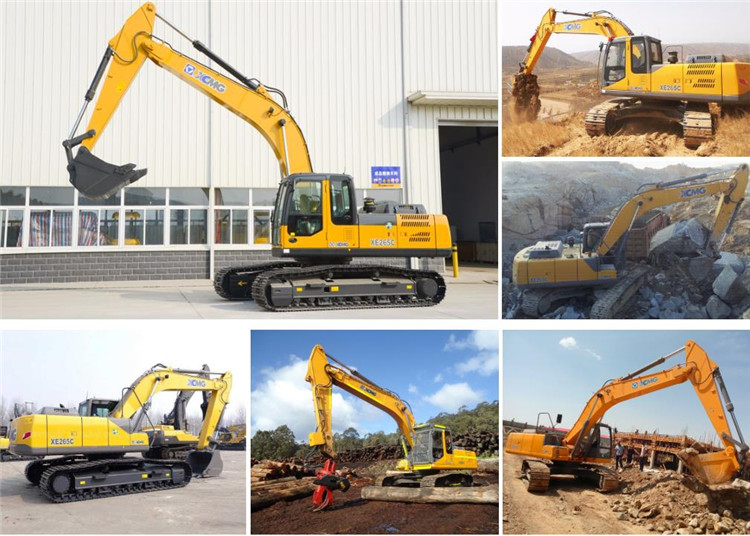

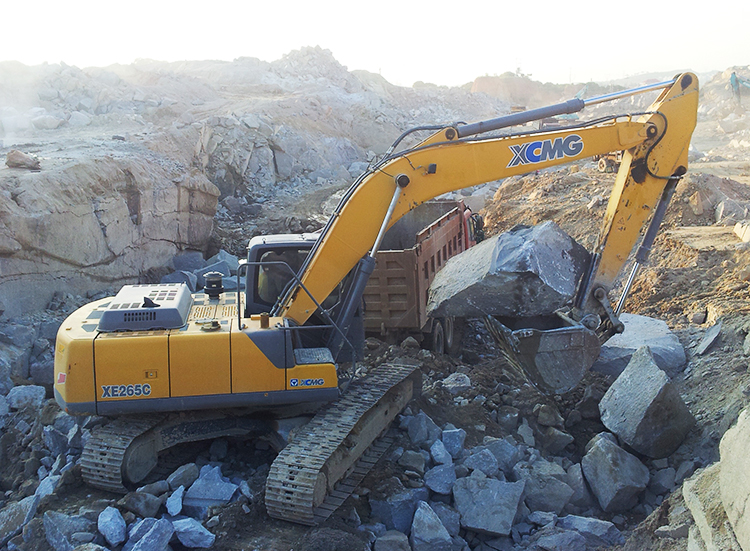

system" and other advanced technology. This product can be used in road
engineering, construction of farmland water conservancy, port construction and
other earthwork and mining engineering.
1. Ecological and economical
* ISUZU 128 5kW high-power engine is more fuel saving.
* New Japan Kawasaki main pump can ensure high efficiency
and reduced leakage.
* Efficiency main valve increases relief pressure and
reduces pressure loss.
* Smart matching technology ensures higher operating efficiency
and lower fuel consumption.
2. Multiple application
* Different boom, stick and bucket combinations maximize
utilization in different conditions.
* Multi-functional ielligent work tool control system can
meet different operating requirements such as digging, breaking and
dismantling.
* Instantaneous boost function copes with complex working
conditions.
3. Comfortable and safe
* Air Conditioner and Heater with Double stage air filter
ensure the appropriate temperature.
* Silicone rubber shock absorber is adopted in the cab.
* Air-suspension seat equipped with electric heating
function.
* Integrated control panel and large display screen
provide multiple information.
* ROPS and FOPS Cab can improve cab safety.
|
Operating
weight |
kg |
25500 |
|
|
Bucket
capacity |
m³ |
1.05~1.25 |
|
|
Engine |
Model |
Engine |
ISUZU |
|
CC-6BG1TRP-05 |
|||
|
No. of
cylinders |
--- |
6 |
|
|
Output power |
kW/ r/min |
135.5/2150 |
|
|
torque/speed |
N.m |
637/1800 |
|
|
Displacement |
L |
6.494 |
|
|
Main
performance |
Travel
speed(H/L) |
km/h |
5.9/4.0 |
|
Rotating speed |
r/min |
11.3 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground
pressure |
kPa |
50.1 |
|
|
Bucket digging
force |
kN |
179 |
|
|
Arm digging
force |
kN |
125 |
|
|
Maximum
traction |
kN |
194 |
|
|
Hydraulic
system |
Main pump |
-- |
2 |
|
Rated flow of
main pump |
L/min |
2×256 |
|
|
Pressure of
prime valve |
MPa |
34.3/37 |
|
|
Pressure of
travel system |
MPa |
34.3 |
|
|
Pressure of
swing system |
MPa |
28 |
|
|
Pressure of
pilot system |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank
capacity |
L |
400 |
|
Hydraulic tank
capacity |
L |
240 |
|
|
Engine oil
capacity |
L |
25 |
|
|
Appearance
size |
Overall length |
mm |
10160 |
|
Overall width |
mm |
3190 |
|
|
Overall height |
mm |
3100 |
|
|
Width of
platform |
mm |
2830 |
|
|
Length of
crawler |
mm |
4640 |
|
|
Overall width
of chassis |
mm |
3190 |
|
|
Width of
crawler |
mm |
600 |
|
|
Wheel base of
crawler |
mm |
3842 |
|
|
Crawler gauge |
mm |
2590 |
|
|
Working scope |
Min. ground
clearance |
mm |
485 |
|
Min. tail
swing radius |
mm |
2985 |
|
|
Max. digging
height |
mm |
9662 |
|
|
Max. dumping
height |
mm |
6810 |
|
|
Max. digging
depth |
mm |
6895 |
|
|
Max. digging
depth at the range of level 8 feet |
mm |
6750 |
|
|
Max. vertical
wall digging depth |
mm |
5480 |
|
|
Max. digging
reach |
mm |
10240 |
|
|
Min. swing
radius |
mm |
3850 |
|
