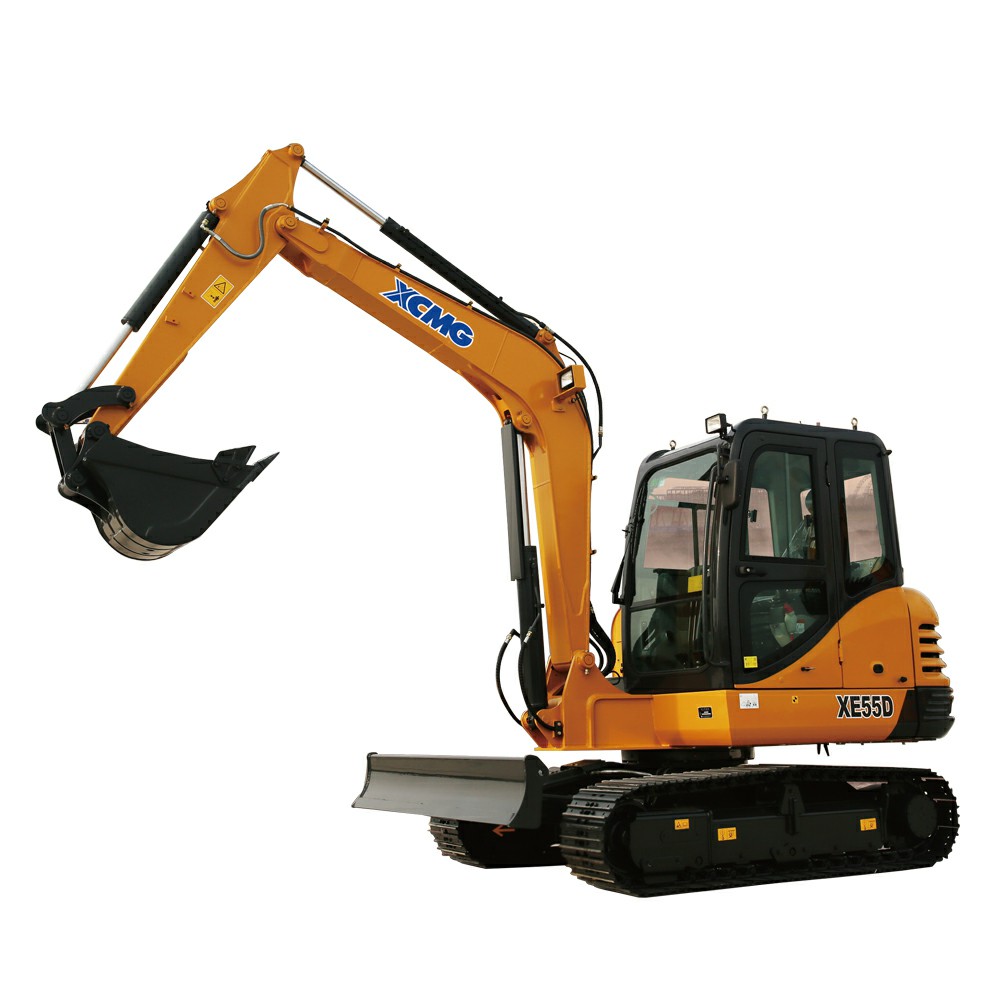

XCMG Official XE55D Crawler Excavator for sale
Summary
- Dimension(L*W*H):5860×1950×2585mm
- Weight:5700kg
- Model Number:XE55D
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Crawler Excavator
- Certification:CE/ISO9001
Specifications
- Weight:5700.000kg
- Condition:New
- Moving Type:Crawler
- Operating weight:5700Kg
- Bucket capacity:0.2m³
- Rotating speed:10r/min
- Ground pressure:31kPa
- Bucket digging force:48.3kN
- Max. digging height:5630mm
- Max. dumping height:3945mm
- Max. digging depth:3830mm
- Max. digging reach:6130mm
- Min. swing radius:2460mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XE55D Crawler Excavator
1、The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2、The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3、The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4、The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
|
Description |
Unit |
Parameter value |
||
|
Operating weight |
Kg |
5700 |
||
|
Bucket capacity |
m³ |
0.2 |
||
|
Engine |
Model |
/ |
4TNV94L-BVXG |
|
|
Style |
Direct injection |
/ |
√ |
|
|
Four strokes |
/ |
√ |
||
|
Water cooling |
/ |
√ |
||
|
Turbo-charging |
/ |
× |
||
|
No. of cylinders |
/ |
4 |
||
|
Output power |
kw/rpm |
36.2/2100 |
||
|
torque/speed |
N.m |
193.2-210.6/1260 |
||
|
Displacement |
L |
3.054 |
||
|
|
Travel speed（H/L) |
km/h |
4.2/2.2 |
|
|
Rotating speed |
r/min |
10 |
||
|
Gradeability |
° |
35 |
||
|
Ground pressure |
kPa |
31 |
||
|
Bucket digging force |
kN |
48.3 |
||
|
Arm crowd force |
kN |
32.5 |
||
|
Maximum traction |
kN |
50.5 |
||
|
Hydraulic system |
Main pump |
/ |
/ |
|
|
Rated flow of main pump |
L/min |
149.1 |
||
|
Pressure of prime valve |
MPa |
24 |
||
|
Pressure of travel system |
MPa |
24 |
||
|
Pressure of swing system |
MPa |
21 |
||
|
Pressure of pilot system |
MPa |
3.5 |
||
|
Oil Capacity |
Fuel tank capacity |
L |
110 |
|
|
Hydraulic tank capacity |
L |
77 |
||
|
Engine oil capacity |
L |
10 |
||
|
|
Overall length |
mm |
5860 |
|
|
Overall width |
mm |
1950 |
||
|
Overall height |
mm |
2585 |
||
|
Width of platform |
mm |
1780 |
||
|
Length of crawler |
mm |
1920 |
||
|
Overall width of chassis |
mm |
400 |
||
|
Width of crawler |
mm |
1990 |
||
|
Crawler gauge |
mm |
1500 |
||
|
Clearance under counterweight |
mm |
700 |
||
|
Min. ground clearance |
mm |
385 |
||
|
Dozer blade width/height |
mm |
1920/340 |
||
|
Working scope |
Max. digging height |
mm |
5630 |
|
|
Max. dumping height |
mm |
3945 |
||
|
Max. digging depth |
mm |
3830 |
||
|
Max. vertical wall digging depth |
mm |
2680 |
||
|
Max. digging reach |
mm |
6130 |
||
|
Min. swing radius |
mm |
2460 |
||
|
Min. tail swing radius |
mm |
1670 |
||
|
Max.dozer blade hoist height |
mm |
390 |
||
|
Max. dozer blade digging depth |
mm |
560 |
||
|
Standard Congratulation |
Boom Length |
mm |
3000 |
|
|
Arm Length |
mm |
1600 |
||
|
Bucket Capacity |
m³ |
0.2 |
||
