XCMG official 8 ton multifunction mini excavator crawler excavator XE75DA excavator price for sale
Summary
- Rated Speed:4.2km/h
- Max Digging Radius:6260mm
- Machine Weight:7500kg
- Maximum Digging Depth:4020mm
- Maximum Digging Height:7085mm
- Bucket capacity: 0.3 cbm
- Operating Weight: 7460kg
- Model Number:XE75DA
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:7501.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

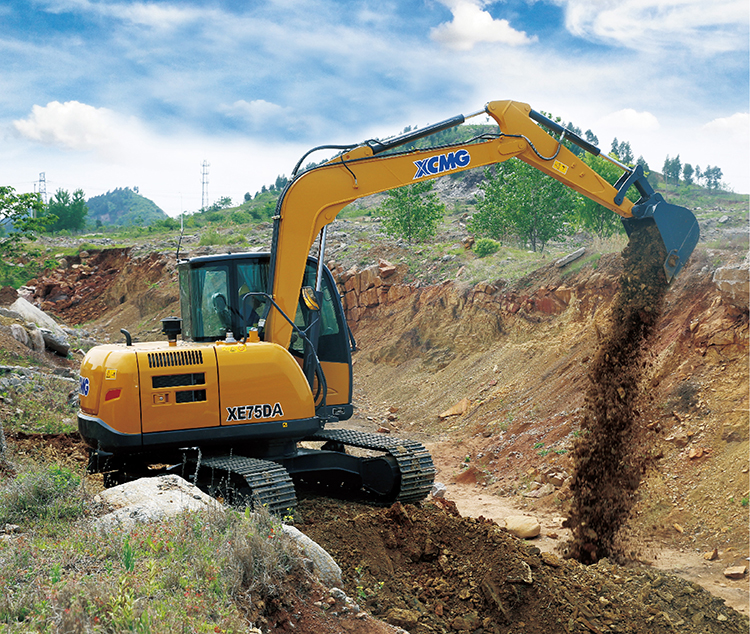

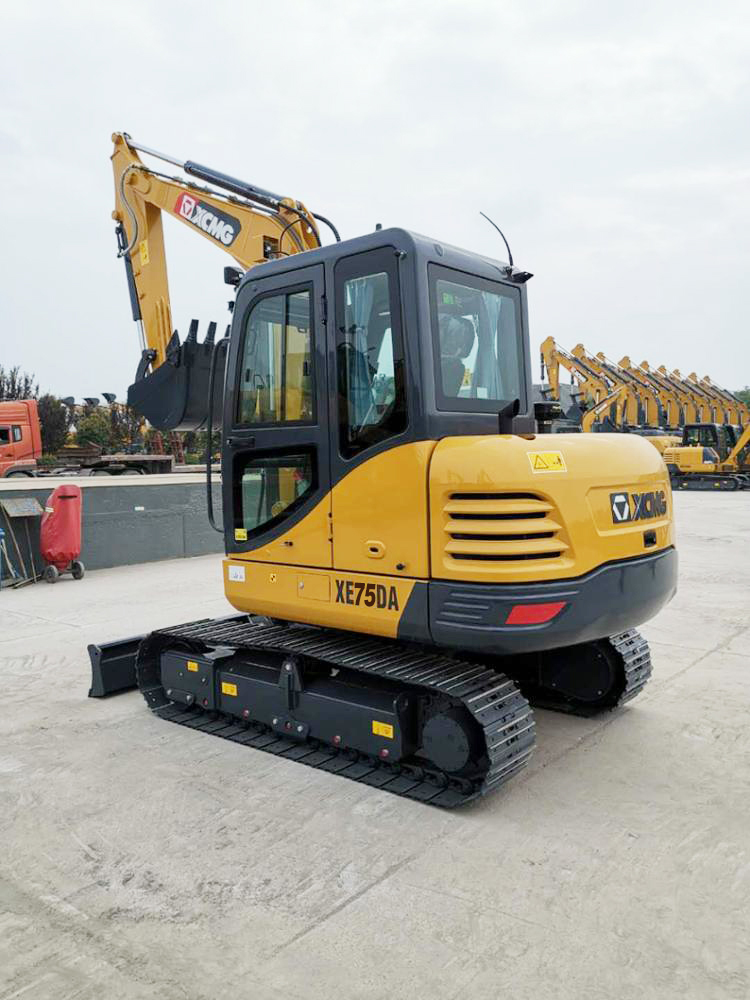

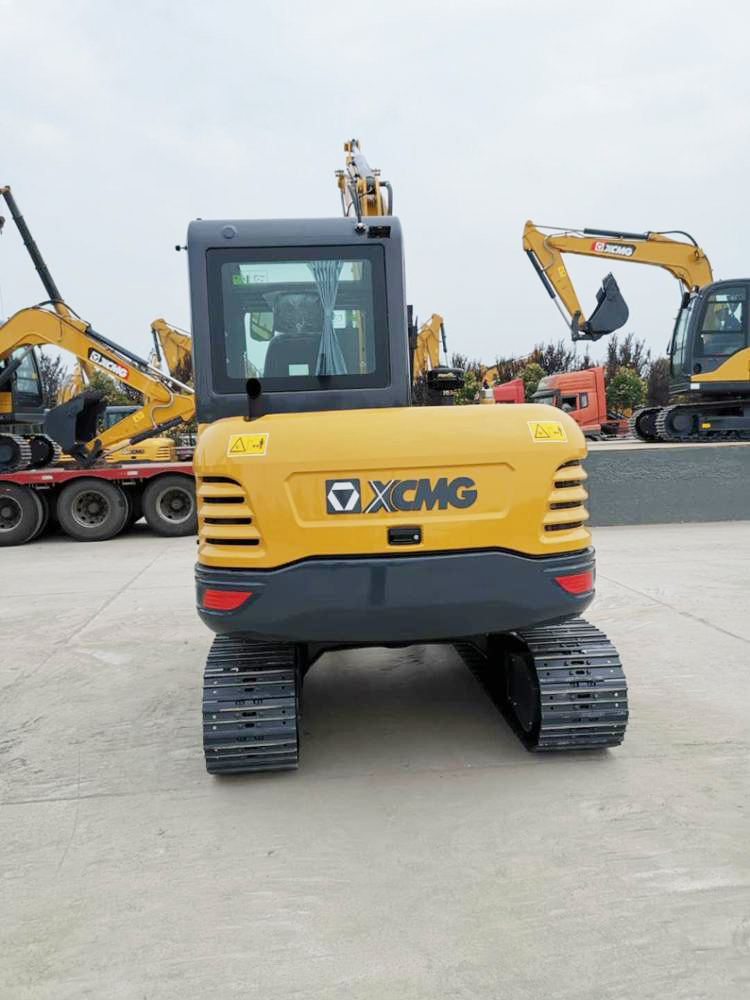

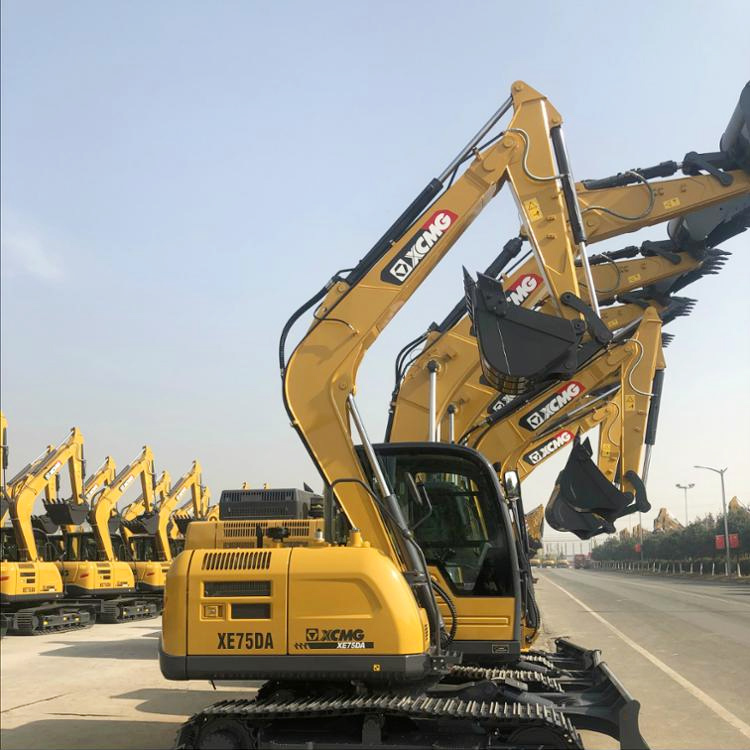

XCMG official 8 ton multifunction mini excavator crawler
excavator XE75DA excavator.
XE75DA
hydraulic excavator can be used for digging, loading, leveling, ditching,
crushing, drilling, clip cutting, lifting and other functions, which has played
an increasingly important role in hydropower, transportation, municipal,
garden, farmland reconstruction, oil pipeline and other small-scale
construction and production field. Especially with the rapid development of
urbanization, a large number of infrastructure projects, such as municipal
maintenance, landscaping, environmental protection, water and electricity
facilities and property management, has created a huge market space. Design
use: suitable for suburban and narrow space; ambient temperature: -15ºC~40ºC;
Working objects: soil below grade III and loose materials.
Main technical performance and characteristics:
1. Ecological and economical
*
Adopting new environmentally friendly Yanmar engine, low speed torque, low fuel
consumption, high operating efficiency, reliable and durable.
*
The advanced load-sensitive control system, low energy consumption.
2.Multiple applications
*
Short tail design and short slewing radius can achieve flexible operation in
confined space.
*
Multiple additional configurations to adapt to a variety of operating
requirements.
3. Comfortable operating experience
*
Fresh air conditioning system to ensure the appropriate temperature.
*
Toughened glass cockpit with good safety view.
*
Detailed design concept improves comfort.
|
Model |
Unit |
XE75DA |
|
|
Operating weight |
Kg |
7460 |
|
|
Bucket capacity |
m³ |
0.3 |
|
|
Engine |
Model engine |
/ |
V2607-DI-TE3B |
|
Injection |
/ |
√ |
|
|
Four strokes |
/ |
√ |
|
|
Water cooling |
/ |
√ |
|
|
Turbo-charging |
/ |
√ |
|
|
No. of cylinders |
/ |
4 |
|
|
Rated power/speed |
kw/rpm |
42.4/2000 |
|
|
Maximum torque/speed |
N.m |
222.5/1600 |
|
|
Displacement |
L |
2.615 |
|
|
Main performance |
Travel speed |
km/h |
5.4/2.9 |
|
Swing speed |
r/min |
10 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
33.5 |
|
|
Bucket digging force |
kN |
57 |
|
|
Arm digging force |
kN |
38 |
|
|
Maximum tractive force |
kN |
68.3 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
160 |
|
Travel system pressure |
MPa |
27.4 |
|
|
Swing system pressure |
MPa |
20.6 |
|
|
Pilot system pressure |
MPa |
3.5 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
130 |
|
Hydraulic tank capacity |
L |
76 |
|
|
Engine oil capacity |
L |
10 |
|
|
Appearance size |
Overall length |
mm |
6150 |
|
Overall width |
mm |
2230 |
|
|
Overall height |
mm |
2685 |
|
|
Width of platform |
mm |
2070 |
|
|
Total width of chassis |
mm |
2200 |
|
|
Track shoe width |
mm |
450 |
|
|
Wheel base of crawler |
mm |
2195 |
|
|
Track gauge |
mm |
1750 |
|
|
Counterweight clearance |
mm |
815 |
|
|
Min. ground clearance |
mm |
380 |
|
|
Working range |
Max. digging height |
mm |
7085 |
|
Max. dumping height |
mm |
5160 |
|
|
Max. digging depth |
mm |
4020 |
|
|
Max. vertical wall digging depth |
mm |
2920 |
|
|
Max. digging radius |
mm |
6260 |
|
|
Min. swing radius |
mm |
1818 |
|
|
Standard |
Length of boom |
mm |
3720 |
|
Length of arm |
mm |
1622 |
|
|
Bucket capacity |
m³ |
0.3 |
|
