XCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom Lift

Chat Now 1 / EA (Min. Order)
Model: XGA16AC
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom Lift

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:6500kg
  • Overall Dimension:6.42*1.75*2m
  • Table Size:1.4*0.7m
  • Max Lifting Height:16m
  • Rated Loading Capacity:227kg
  • Lift Drive / Actuation:Hydraulic
  • Lift Mechanism:Articulated Lift
  • Model Number:XGA16AC
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Certification:CE/ISO9001

Specifications

  • Weight:6500.000kg
  • Condition:New
  • Moving Type:Other

XCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom Lift

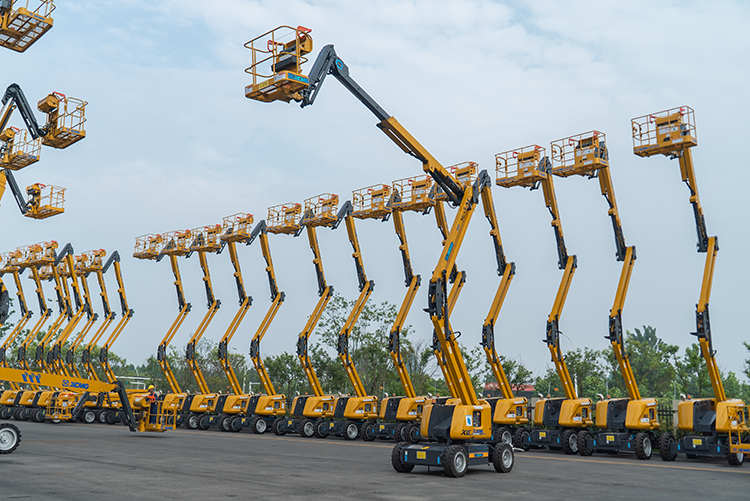

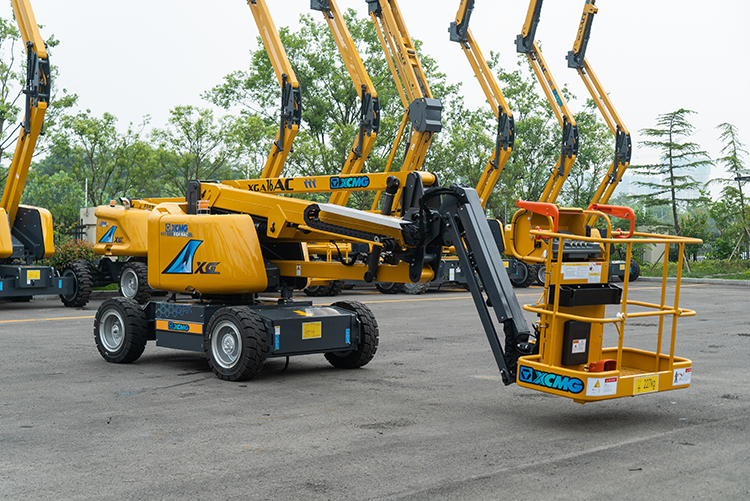

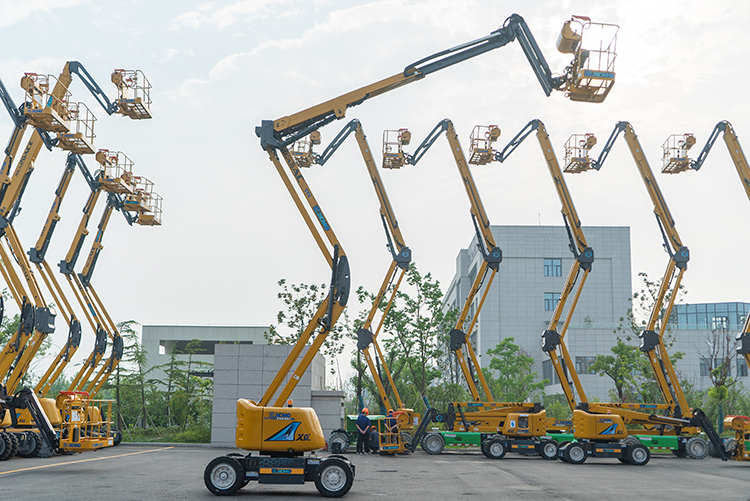

XCMG XGA16AC 16m crank arm articulated electric mobile lifting work platform.



The 16-meter-level electric mobile elevating work platform is easy to operate, safe, reliable, accurate and efficient. It adopts advanced motion optimization control procedures, and uses AC electric drive travel technology and differential travel control technology.



The power matching is accurate, the steering control is sensitive, and the action is smooth. Comfortable to operate. This model can meet the needs of users in various industries such as construction, petrochemical, venues and leasing.



Advantages and highlights:



1. Σ-shaped boom combine and zero tail swing design make it more productive.

2. As small as 3.15m turning radius enables the machine to work in narrow space.

3. Advanced AC motor driven technologies; steering differential control technologies; powerful and steady actions; grade ability up to 30%.

4. DC pump and proportional control technologies are energy-saving and effective, making the work steadier and safer.

5. Environment friendly, zero emission, low noise, traceless traveling, suitable for indoor construction.



Item
Parameter
Parameters of running state
Overall dimensions (L × W × H)
6.42×1.75×2 m
Working platform overall dimensions
1.4×0.7×1.15 m
Max. speed
5.2 km/h
Max. gradeability
≥30%
Min. external turning radius
≤3.15 m
Ground clearance/m (centre)
0.21 m
Wheelbase
2 m
Total mass
6500 kg
Main Operation Performance Parameters
Rated working height
15.5 m
Max. platform height
13.8 m
Max. working range
8 m
Max. net spanning height
7.03 m
Scope of luffing of No. 1 arm
0°~60°
Scope of luffing of No. 2 arm
-8°~75°
Scope of crank arm luffing
-60°~80°
Scope of platform swing
160°
Slewing angle
355°
Slewing radius of turntable
0.875 m
Max. load capacity
227 kg
Max. rearward slewing
0 m
Control system
12V DC proportional control
Tire
250-15 solid tire, optional foam tire 240/55 D17.5
Power parameters
Power source
420 Ah/48 V DC
Power unit
4 kw/48 V DC
Auxiliary power unit
2.2 kw/24 V DC
Traveling motor
3.3 kw/32 V AC



XCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom LiftXCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom LiftXCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom Lift

XCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom LiftXCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom LiftXCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom LiftXCMG XGA16AC 16m Crank Arm Self Propelled Articulated Boom Lift
