Model: XGA5904D3T
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Truck Dumper XGA5904D3T Off Road 6×4 New 90 ton Dumper Trucks 538HP Dumper Trucks For Sale

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XGA5904D3T
Specs & Compare
Details

Specifications

  • Weight:34680.000kg
  • Condition:New
  • Moving Type:Wheel

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China

XCMG Truck Dumper XGA5904D3T Off Road 6×4 New 90 ton Dumper Trucks 538HP Dumper Trucks For Sale

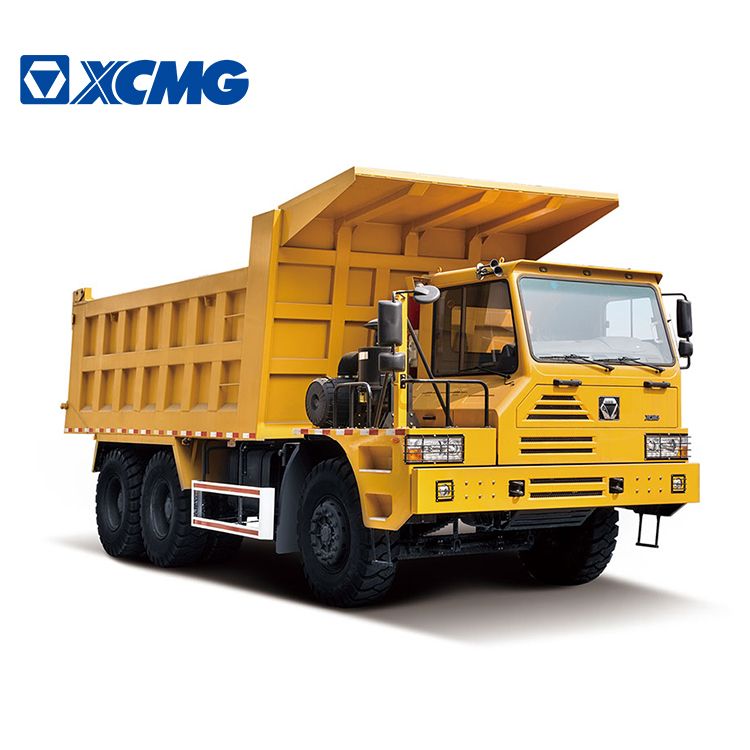

XCMG Official Truck Dumper Off Road 6×4 New 90 ton Dumper Trucks 538HP Dumper Trucks.



* According to each of the engine torque characteristic curve, perfectly match the different types of Fast manual gearbox, Allision automatic gearbox, to protect the most energy rationalization output, the vehicle has an excellent starting ability, climbing ability.



* Optimized arrangement of the traditional system architecture, reducing the loss of energy transfer process to ensure the kinetic energy efficient, rapid transmission.



* Using the unique steering and steering follower, the steering mechanism. Steering light, the failure rate lower.



* Dual-circuit brake system equipped with high pressure geography accumulator volume increases, the brake pressure increasing 25% to 1 Mpa, shorten braking distance.

XCMG Truck Dumper XGA5904D3T Off Road 6×4 New 90 ton Dumper Trucks 538HP Dumper Trucks For Sale



Vehicle model

XGA5904D3T

Mass parameter

Curb weight

34680kg

GVW

91000kg

Performance

Max. speed

44km/h

Min. turning diameter

11.1m

Grade ability

≥78% out of first gear, ≥27% in second gear

Fuel tank

500L

Dimensions

Dimensions

Length

8940mm

Width

3500mm

Height

3960mm

Wheelbase

4700+1600 mm

Wheel tread

Front

2745mm

Rear

2525mm

Min. Clearance

350mm

Approach angle

35°

Departure angle

42°

Cargo size

7400×3300×2100 mm

Cab

Model

3.3m Left dislocation cab

Passengers

1

Engine

Model

WP13G530E310

Displacement

12.54L

Output power

390kW

torque/speed

2300N·m

Transmission

Model

Allison 4800 ORS

PTO

CS10-A1005-J32X

Operation

Electronic control

Forward ratio

7.63/3.51/1.91/1.43/1.00/0.74/0.64

Reverse ratio

4.8

Driven axle

Model

35T

Main Reducer Ratio

17.2

Brake type

Drum

Differential lock

Inter-axle differential lock

Front axle

Model

19T

Brake type

Drum

Wheel

Rim

10.00V-25

Tire

14.00R25

Frame

Model

Box beam

HxW-t

480mm

Frame Width

1150mm

Suspension

Front

Type

Leaf spring

Leaf springs

15

Rear

Type

Balanced suspension

Leaf springs

15

Steering

Model

Φ120

Circulating ball type hydraulic power

Steering ration

23.04

Max pressure of pump

17MPa

Brake System

Rated pressure

1MPa

Service brake system

Dual circuit pneumatic braking

Parking brake system

Spring energy storage air brake

Auxiliary braking system

Engine exhaust brake+Retarder

Electrical system

Voltage

24V

Generator power

2.2kw

Battery voltage/capacitance

2×12V/165Ah
