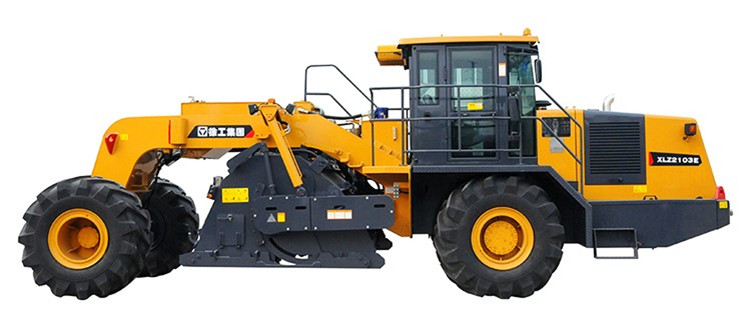

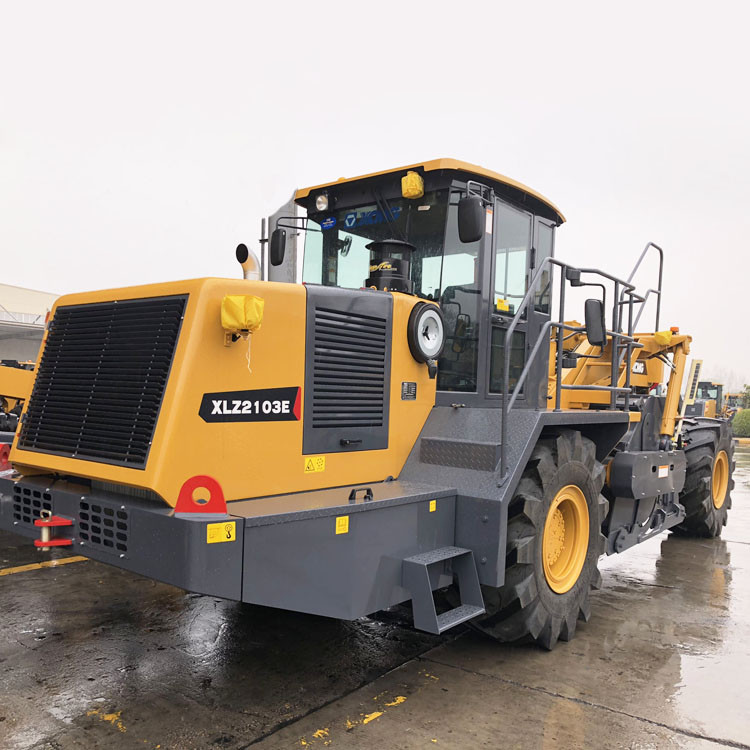

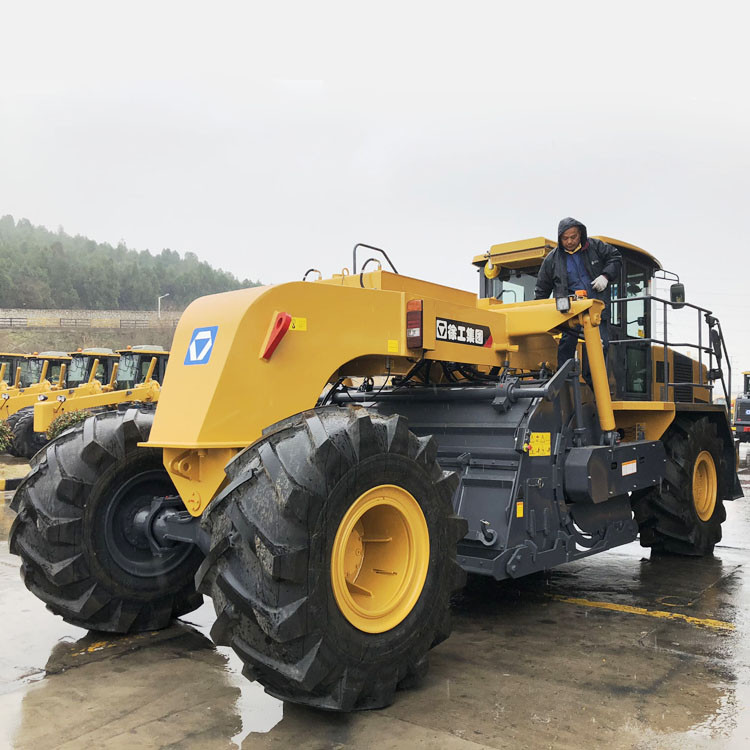

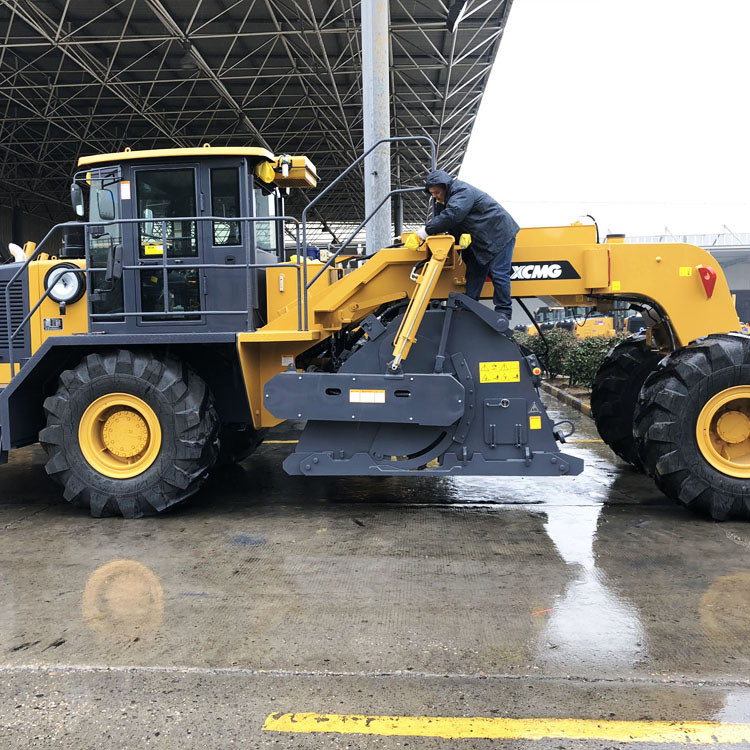

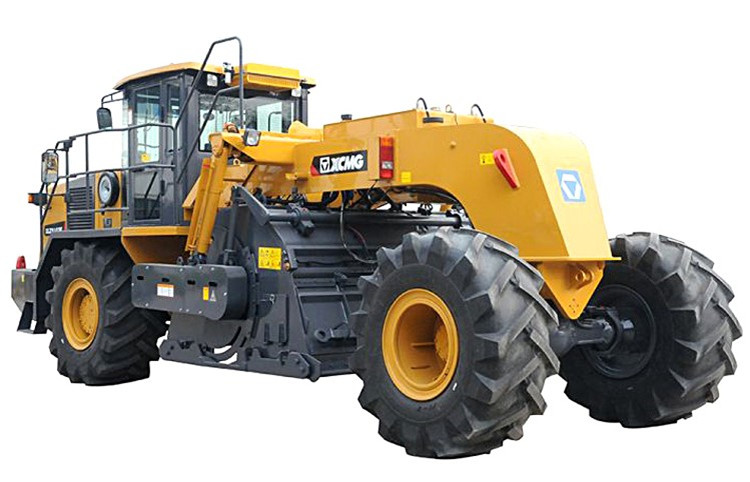

XCMG Road Construction Machines 2m Cold Recycler Soil Stabilizer Machinery XLZ2103E For Sale
Summary
- Rated Power:338kw
- Model Number:XLZ2103E
- Place of Origin:Jiangsu, China
- Rated Speed: 338kw
Specifications
- Weight:21000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Road Construction Machines 2m Cold Recycler Soil Stabilizer Machinery XLZ2103E For Sale.
• It adopts Weichai WP12N engine, which features advanced fuel system and inlet and exhaust system, National III emission standards, strong power and good performance.
• The hydraulic system adopts imported product of world-famous brand, which has the advantages like high allowed pressure, high efficiency, low noise, and complete functions; the pump is integrated with pressure limit valve, high-pressure safety valve, bypass valve and etc, which simplifies the hydraulic system for easy installation and service.
• The working devices can operate near the road shoulder, so that the machine can be widely used; the water spray device with self-suction function is of high measuring accuracy and convenient to operate; the rotor housing of optimized design has small resistance; the specially designed milling and mixing rotor has good quality and strong milling and mixing capability.
• It adopts the Meritor drive axle which has advanced design, reasonable structure, and reliable manufacturing quality.
• The cab is installed at the front which has a wide view; it is equipped with audio system, luxury seat, air conditioner, warm-air blower, and etc. providing a comfortable environment for higher work efficiency.
• The steering system has multiple steering modes like front axle steering, rear axle steering, and combined steering, which increases the effective work time.
|
Milling width |
2300(2100)mm |
|
Maximum milling depth |
0-400mm |
|
Tool spacing |
18(15)mm |
|
Number of tools |
162 |
|
Milling wheel diameter (with tool) |
1380(1350)mm |
|
Cooling method |
Water cooling |
|
Model |
WP12.460N |
|
Number of cylinders |
6 |
|
Rated power |
338kw |
|
Engine speed |
1900rpm |
|
Fuel consumption: full load |
69.86kg/h |
|
Working speed |
0-2.7km/h |
|
Walking speed |
0-18.5km/h |
|
Theoretical Gradeability (Work Block) |
20% |
|
Ground clearance |
350 |
|
Weight / load |
15000 |
|
Front axle load |
6300(6000)kg |
|
Rear axle load |
21300(21000)kg |
|
Shipping weight |
21300(21000)kg |
|
Fuel tank |
650L |
|
Hydraulic tank |
380L |
|
Water tank |
1000L |
|
Electrical system |
24V |
|
Machinery (length×width×height) |
9232×3142×3450mm |
