XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price

  • XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price
  • XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price
  • XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price
  • XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price
  • XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price
  • XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price

Share:
XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price
FOB for Piling Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price
  • Summary
  • Details
Summary
  • Certification:ISO/CE
  • Dimension(L*W*H):8968×4400×22180
  • Weight:76000kg
  • Power(W):242kW
  • Model Number:XR220D
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
  • Power Type:diesel
  • Type:rotary drilling rig
Details
  • Product Name:G5F03CFCB3A968
  • Display online time:2020-07-07
  • weight:76000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other

XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price

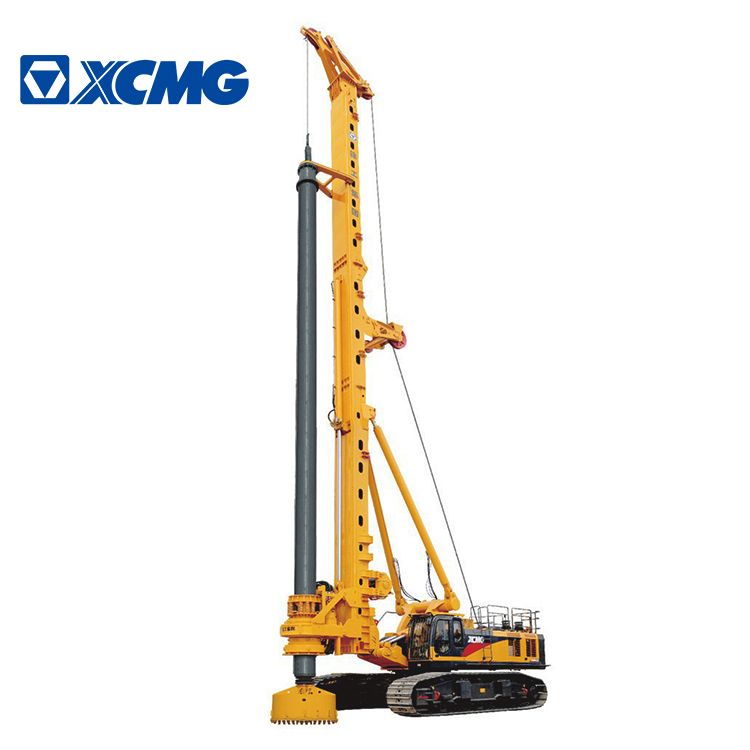

XCMG 220kN XR220D hydraulic rotary drilling rig machine.


1,Withthe special hydraulic telescopic crawler chassis (TDP series) of rotary drill brigand large diameter slewing bearing, it meets strong stability and easy transportation.

2,Withthe electronically controlled and turbocharged engine of Cummins, which is powerful and emissions meet Euro
standards.

3,The hydraulic system adopts the limit of power control and positive flow control, that makes the hydraulic system more energy and efficient.

4,Withthe single rope main winch, it efficiently solves the problem of wire rope wear, and improves the service life of wire rope; a detection device of drilling depth on the main winch, and single rope makes deep inspection more accuracy.

XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price

XCMG provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand.

Description

Unit

Parameter value

Max. drilling diameter

mm

2000

Max. drilling depth

m

67,standard configuration

(5-section friction Kelly bar)

52,optional configuration

(4-section-locking Kelly bar)

Allowable luffing scope (from center of drill rod to slewing center)

mm

3905~4800

Drilling rig dimension in working condition (L × W × H)

mm

8968×4400×22180

Drilling rig dimension in transport condition (L × W × H)

mm

16360×3250×3535

Weight of overall unit (standard configuration, excluding drilling tool)

t

76

Engine

Model

CUMMINS QSL-325

Rated power/speed

kW

242/(2200r/min)

Max. working pressure of hydraulic system

MPa

35

Rotary drive

Max. torque

kN •m

220

Rotational speed(Standard configuration)

r/min

7~25

Crowd cylinder

Max. Pushing force

kN

200

Max. Pulling force

kN

200

Max. stroke

mm

5000

Main winch

Max. pulling force

kN

230

Max. single-rope speed

m/min

70

Diameter of the steel wire rope

mm

30

Auxiliary winch

Max. pulling force

kN

80

Max. single-rope speed

m/min

60

Diameter of the steel wire rope

mm

20

Drilling mast

Left/right inclination of mast

°

1

Front/back inclination of mast

°

43600

Rotary table slewing angle

°

360

XCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine priceXCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine priceXCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine priceXCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine priceXCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine priceXCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine priceXCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine priceXCMG rotary drilling rig 220kN XR220D hydraulic rotary table drilling rig machine price
