Product
Summary
- Weight:12000kg
- Dimension(L*W*H):6150×2300×3200mm
- Power(W):100kW
- Model Number:XS123H
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:30%
- Static Linear Pressure:258N/cm
- Type: Single Drive Vibratory Roller
- Certification:CE/ISO9001
- Travel speed:0-7.3km/h
Details
- Product Name:XS123H
- Display online time:2019-11-04
- weight:12000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:other
- Drive wheel distribution weight:6400kg
- Vibratory drum distribution weight:5600kg
- Vibration frequency:30/35Hz
- Theoretical amplitude:1.8/0.9mm
- Wheel base:3040mm
- Compaction width:2130mm
- Minimum turning radius:6800mm
- Vibratory drum diameter:1513mm
- Minimum ground clearance:431mm
- Engine Model:SC4H135G2
- Vibration system pressure:18MPa
- Steering system pressure:16Mpa

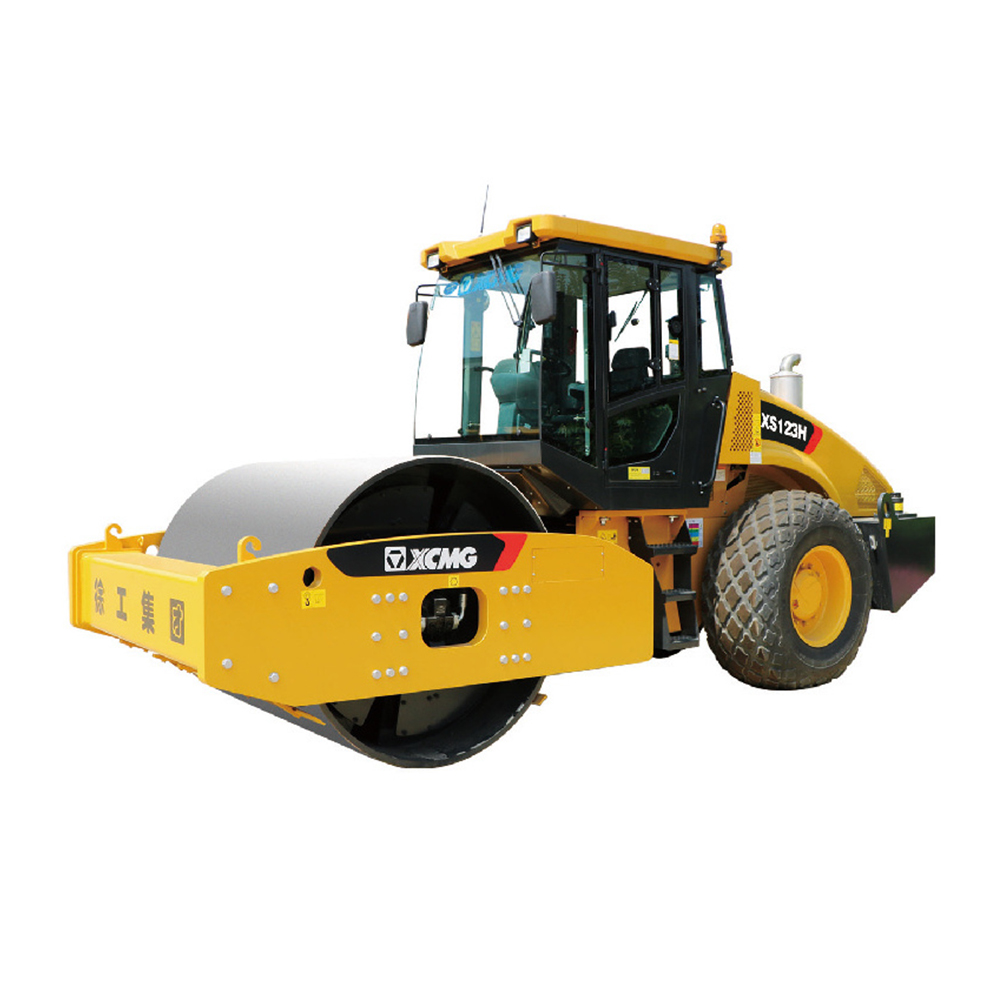

The XS123H fully hydraulicsingle-drivevibratory roller is more comfortable to operate and offerssuperior compactionperformance and efficiency. It is suitable for compactionoperations such asconcrete, stabilized soil, pebbles, sandy soil, and stickysoil. It is an idealcompaction device for the construction of high-gradehighways, airports, ports,and embankments.
Description
Unit
Parameter value
Work weight
kg
12000
Drive wheel distribution weight
kg
6400
Vibratory drum distribution weight
kg
5600
Static line load
N/cm
258
DrVibration frequency
Hz
30/35
Theoretical amplitude
mm
1.8/0.9
Exciting force
kN
240/160
Speed range
km/h
0-7.3
Wheelbase
mm
3040
Compaction width
mm
2130
Theoretical climbing ability
%
30
Minimum turning radius
mm
6800
Vibratory drum diameter
mm
1513
Minimum ground clearance
mm
431
Engine
Model
SC4H135G2
Rated speed
r/min
2200
Rated power
kW
100
Dimensions
mm
6150×2300×3200
Vibration system pressure
MPa
18
Steering system pressure
MPa
16
Description | Unit | Parameter value | ||
Work weight | kg | 12000 | ||
Drive wheel distribution weight | kg | 6400 | ||
Vibratory drum distribution weight | kg | 5600 | ||
Static line load | N/cm | 258 | ||
DrVibration frequency | Hz | 30/35 | ||
Theoretical amplitude | mm | 1.8/0.9 | ||
Exciting force | kN | 240/160 | ||
Speed range | km/h | 0-7.3 | ||
Wheelbase | mm | 3040 | ||
Compaction width | mm | 2130 | ||
Theoretical climbing ability | % | 30 | ||
Minimum turning radius | mm | 6800 | ||
Vibratory drum diameter | mm | 1513 | ||
Minimum ground clearance | mm | 431 | ||
Engine | Model | SC4H135G2 | ||
Rated speed | r/min | 2200 | ||
Rated power | kW | 100 | ||
Dimensions | mm | 6150×2300×3200 | ||
Vibration system pressure | MPa | 18 | ||
Steering system pressure | MPa | 16 |
| |
Response Time : Within 24 hours
Xuzhou Construction Machinery Group Co., Ltd. (XCMG) was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes
