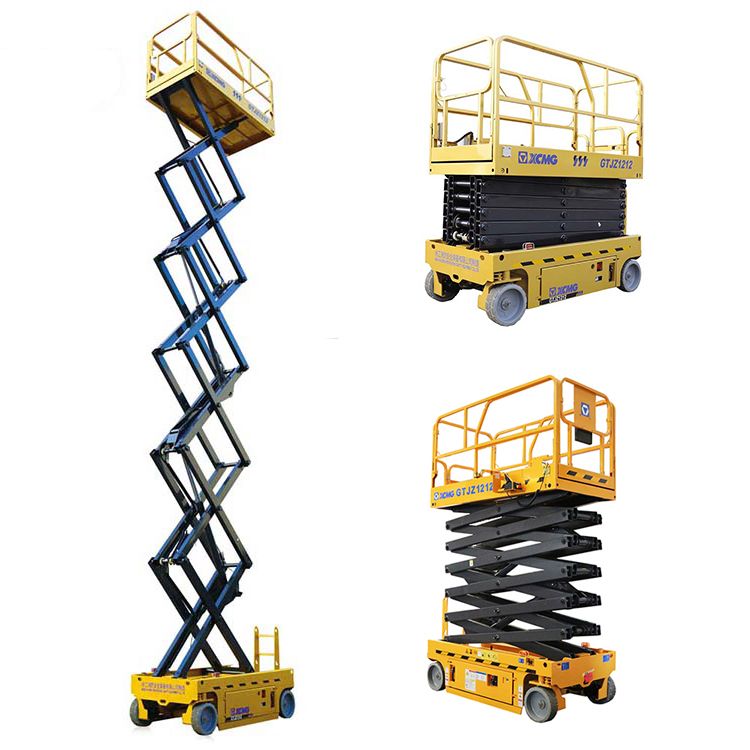

XCMG Official Manufacturer 12m Scissor Lift GTJZ1212

Share:
XCMG Official Manufacturer 12m Scissor Lift GTJZ1212
FOB for Cranes Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official Manufacturer 12m Scissor Lift GTJZ1212
  • Product
  • Summary
  • Details
Product
Summary
  • Brand Name:XCMG
  • Place of Origin:China
Details
  • Product Name:G5BF24BA8E4FA7
  • Display online time:2019-11-07
  • weight:3140.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:3 Months
  • Condition:NEW
  • Moving Type:other
  • Overall Length(mm):2485
  • Overall Width(mm):1190
  • Overall Height(Guardrail folding)(mm):2600(2036)
  • Wheel Base(mm):1877
  • Maximum Working Heigh(m):13.8
  • aximum Platform Height(m):11.8
  • Maximum Load Capacity(kg):320
  • Extension Platform Load(kg):115
  • Platform Size(mm):2276*1120
  • Platform Extension Length(mm):900
  • Lifting Speed of Working Platform(s):60
  • Falling Speed of Working Platform(s):52
  • Total Weight(kg):3140
  • Travel Speed(High Speed)(km/h):3.2
  • Travel Speed(low Speed)(km/h):0.8
  • Max.Travel Platform Height(m):11.8
  • Minimum Ground Clearance(mm):100/20
  • Maximum Grade Ability(%):25
  • ire Specification:381*127


The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.

1、Convenient transportation and stable operation

The telescoping sub-platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.

2、Environmental construction and convenient service

Pure electric drive, zero release,low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.

3、General and modular design

The modular design for the machine guarantees the universality of parts,makes the customers’ repairs and maintenances easier, and achieves more competitive cost.



Itmm

Parameter

Overall Length(mm)

2485

Overall Width(mm)

1190

Overall Height(mm)

2600(2036)

Wheel Base(mm)

1877

Maximum Working Height(mm)

13.8

Maximum Platform

11.8

Maximum Load Capacity

320

Extension Platform Load

115

Platform Size(mm)

2276*1120

Platform Extension

900

Lifting Speed of Working

60

Falling Speed of Working

52

Total Weight(kg)

3140

Travel Speed(high)

3.2

Travel Speed(low)

0.8

Max.travel Platform

11.8

Minimum turning Radius(m)

0

Minimum Ground

100/20

Maximum Grade Ability(%)

25

Tire Specification

381*127

Battery (V/(Ah))

4*12(300)

Charger(A)

30

Warning Angle of Inclinaton

1.5

3
