XCMG official manufacturer GR215 motor grader for sale

  • XCMG official manufacturer GR215 motor grader for sale

Share:
XCMG official manufacturer GR215 motor grader for sale
FOB for Road Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG official manufacturer GR215 motor grader for sale
  • Summary
  • Details
Summary
  • Dimension(L*W*H):8970x2625x3420mm
  • Weight:16500kg
  • Model Number:GR215
  • Brand Name:XCMG
  • Place of Origin:China
  • Reverse Speed(km/h):5/11/23km/h
  • Forward Speed(km/h):5/8/11/19/23/38km/h
  • Certification:Can provide relevant certification
Details
  • Product Name:G5B63C68E1A73B
  • Display online time:2020-05-06
  • weight:16500.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Engine model:6CTA8.3-C215
  • Rated power/speed:160kW/2200rpm
  • Tire specification:17.5-25
  • Ground clearance (front axle):430mm
  • Space of front and rear axles:6219 mm
  • Tractive effort f=0.75:87 kN
  • Working system pressure:16MPa
  • Maximum steering angle of front wheel:±50°
  • Minimum turning radius:7.3m
  • Maximum lift height:450mm
  • Maximum cutting depth:500mm


XCMG official manufacturer GR215 motor grader for sale

1、Using Cummins 6CTA8.3-C215 turbocharged diesel engine, the output torque and power reserve factor is large, and the fuel consumption is low.

2、The gearbox and torque converter are electronically controlled power shifting and fixed shaft gearboxes. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

3、The drive axle is a dedicated XCMG axle.

4、Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.

5、The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.

6、The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.

XCMG official manufacturer GR215 motor grader for sale


XCMG official manufacturer GR215 motor grader for saleXCMG official manufacturer GR215 motor grader for sale

Item

GR215

Basic parameters

Engine model

6CTA8.3-C215

Rated power/speed

160kW/2200rpm

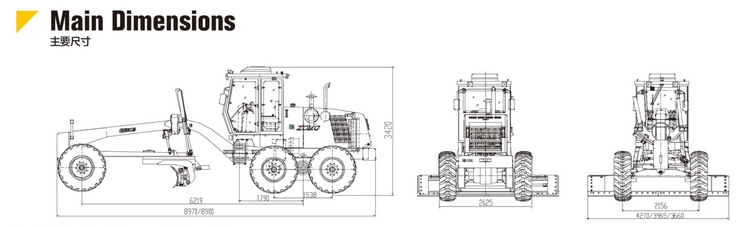

Overall dimension (standard)

8970x2625x3420

Total weight (standard)

16500 kg

Tire specification

17.5-25

Ground clearance (front axle)

430mm

Tread

2156mm

Space of front and rear axles

6219 mm

Space of middle and rear wheels

1538 mm

Performance parameters

Forward velocity

5811192338km/h

Reverse speed

51123km/h

Tractive effort f=0.75

87 kN

Maximum gradeability

20%

Tire inflation pressure

260kPa

Working system pressure

16MPa

Transmission pressure

1.3—1.8Mpa

Working parameters

Maximum steering angle of front wheel

±50°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

±15°

Maximum steering angle of frame

±27°

Minimum turning radius

7.3m

Scrape knife

Maximum lift height

450mm

Maximum cutting depth

500mm

Maximum tilt angle

90°

Cutting angle

28°—70°

Angle of revolution

360°

Length & chord height

4270x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

24L

Transmission

38L

Balancing box

46L

Drive axle

28L

Hydraulic oil

110L

XCMG official manufacturer GR215 motor grader for saleXCMG official manufacturer GR215 motor grader for saleXCMG official manufacturer GR215 motor grader for sale
