XCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for sale

  • XCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for sale
  • XCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for sale

Share:
XCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for sale
FOB for Sanitary Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for sale
  • Summary
  • Details
Summary
  • Overall Dimension(L*W*H):4860×1560×2060 mm
  • Weight:1800 kg
  • Model Number: XZJ5020TYHA5
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
Details
  • Product Name:357636-XZJ5020TYHA5
  • Display online time:2019-11-07
  • weight:1800.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Chassis Model:SC1021GND51
  • Chassis Manufacturer:Chang’an
  • Wheelbase:2700 mm
  • Total Mass:1800 kg
  • Volume of water tank:1720 m³
  • Cleaning Width:1.5 m
  • Model of Low pressure water pump:65QZB-50/110N
  • Continuous Working Hours:70
  • Model of High-pressure water pump:WS1630 type pump imported from Italy
  • Water pressure of High-pressure water pump:16 Mpa
  • Flow of High-pressure water pump:30 L/min
  • Drive mode of High-pressure water pump:Gasoline engine driven by V belt
  • Power of Gasoline engine(electrical starting):GX390(Honda)
  • Model of Gasoline engine(electrical starting):8.2 kW
  • Control mode of Electric control system:All front functions can be controlled in the cab
  • Voltage of Electric control system:12 V(the same as the chassis)
  • Alarm device:Water tank low-level sensor alarm device
  • Monitoring device:Front bottom-view camera; a color LCD is installed in the cab.
  • Mode of water filling:Fire hydrant water filling and faucet hose water filling


XCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for saleXCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for saleXZJ5020TYHA5 Road Maintenance Truck

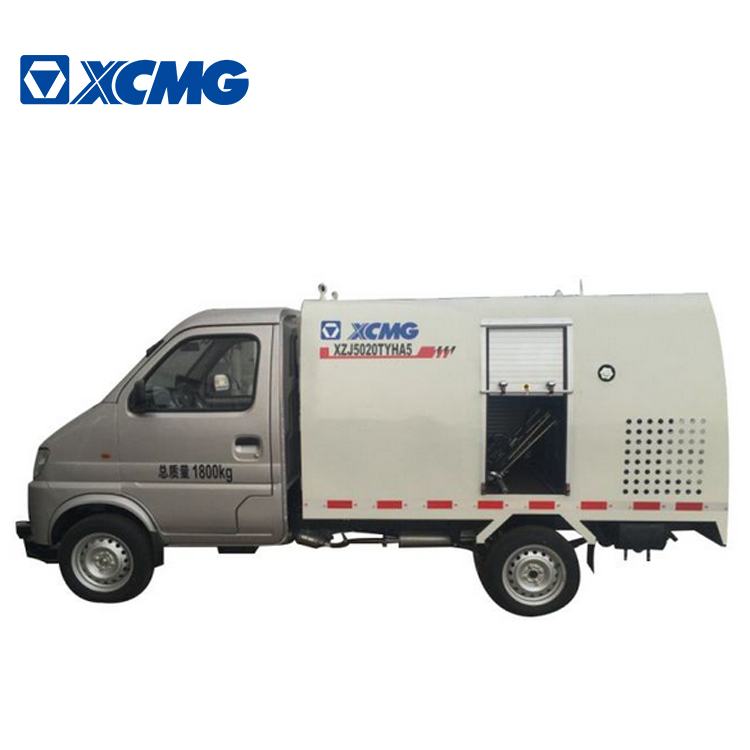

The road maintenance truck is mainly used in city footpath, as well as stalls and small advertising cleaning. It has functions like linear high pressure water curtain cleaning, columnar single point cleaning, manual spray gun cleaning , hand push type nozzle cleaning and so on. It is widely used in narrow streets, sidewalks, pedestrian streets, squares and other places which large vehicles is quite difficult to enter.XCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for saleXCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for saleXCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for sale

Vehicle Model

XZJ5020TYHA5

Chassis

Model

SC1021GND51

Manufacturer

Chang’ an

Overall Dimension

4860×1560×2060mm

Wheelbase

2700mm

Total Mass

1800kg

 Volume of water tank

1720m³

Cleaning Width

1.5m

Continuous Working Hours

70h

High-pressure water pump

Model

WS1630 type pump imported from Italy

Water pressure

16MPa

Flow

30 L/min

Drive mode

Gasoline engine driven by V belt

Gasoline engine (electrical starting)

Model

GX390(Honda)

Power

8.2 kW

Function

1.  Front linear high-pressure water curtain cleaning;

2.  Front electric column single-point cleaning;

3.  Rear manual spray gun;

4.  Hand-push sprayer nozzle cleaning

Electric control system

Control mode

All front functions can be controlled in the cab.

Voltage (V)

12 (the same as the chassis)

Alarm device

Water tank low-level sensor alarm device

Monitoring device

Front bottom-view camera; a color LCD is installed in the cab.

Mode of water filling

Fire hydrant water filling and faucet hose water filling

XCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for saleXCMG Official Manufacturer Road Maintenance Truck XZJ5020TYHA5 for sale
