- Powder Silo volume:16m³
- Spreading width:400～ 2400 mm
- Spreading density:5～ 40 Kg/㎡
- Fuel tank:400 L

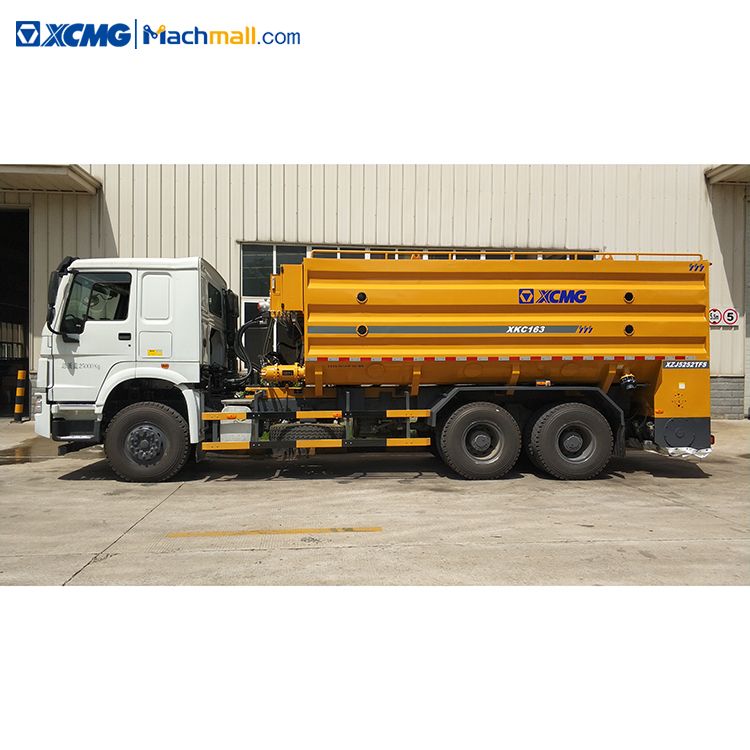

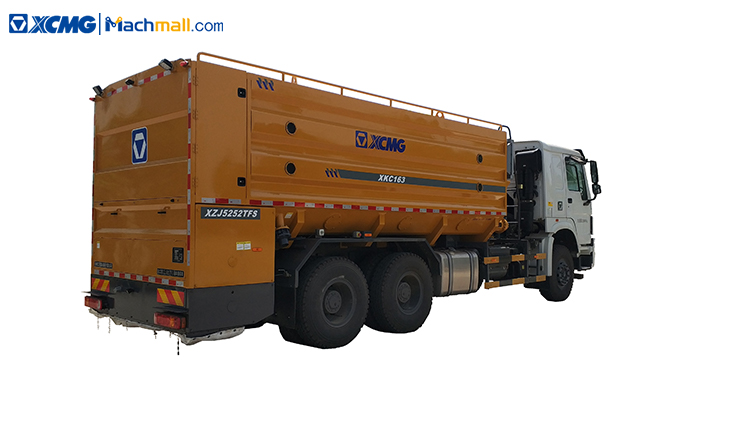

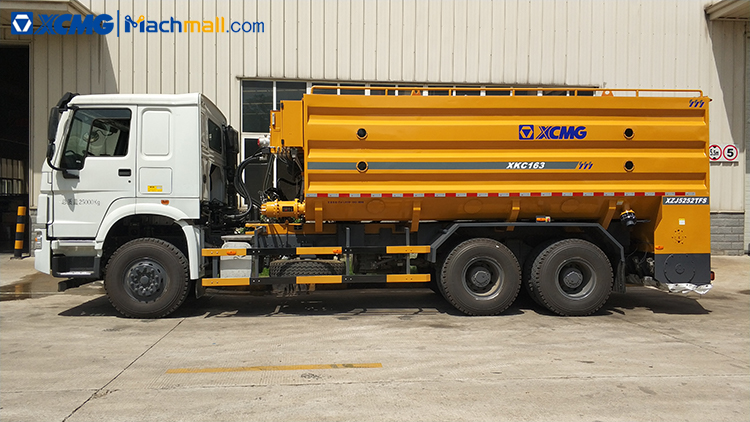

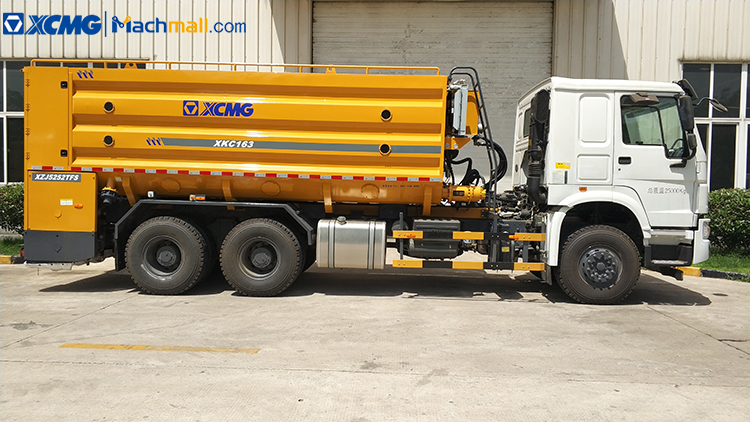

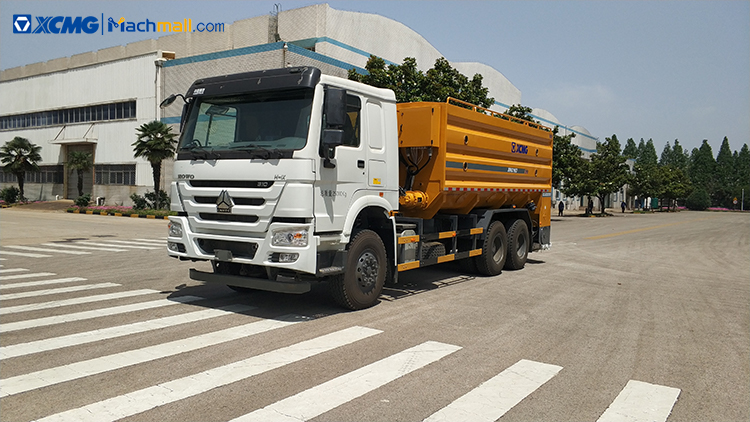

XCMG official powder binder spreader XKC163 6×4 with HOWO chassis.
XCMG official powder binder spreader XKC163 6×4 with HOWO chassis is mainly suitable for distributing powder materials such as cement, lime and fly ash, and used for cement spraying for highway cold regeneration construction, stabilized soil and a variety of adhesives spraying for roadbed, and can also be used for powder material spraying for other working conditions.
Powder binder spreader is key equipment for highway cold-in-place regeneration construction it is special equipment for stabilized soil construction, widely used in highway and municipal construction. With characteristics of high efficiency, environmental protection, simple operation, good construction quality and high reliability.
1.Use Sinotruk HOWO ZZ1257N4347E1 chassis engine, in compliance with 6 x 4 China-Ⅴ emission standards, the total mass of 25 tons and engine models D10.31-50, power 228 kw / 1900 r/min, powerful, high travel speed.
2.The connecting parts of feeding screw, feeding roller, metering roller and powder tank adopt unique sealing structure, which is reliable and maintenance free.
3.The chassis is equipped with the secondary deceleration and PTO knob, and the performance is stable for low-speed construction.
4.The material silo is equipped with a pressure reducing beam, and the resistance of screw feeding is low.
5.The rear hopper is equipped with a feeding roller to ensure the filling efficiency of the metering roller.
6.Variable pitch screw feeding, strong conveying capacity and high reliability.
