XCMG Official Manufacturer Tunnel Roadheader XTR4/180 for sale

  • XCMG Official Manufacturer Tunnel Roadheader XTR4/180 for sale

Share:
XCMG Official Manufacturer Tunnel Roadheader XTR4/180 for sale
FOB for Mining Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official Manufacturer Tunnel Roadheader XTR4/180 for sale
  • Summary
  • Details
Summary
  • Overall Dimension(L*W*H):11870×1700(Main body)
  • Weight:47000 kg
  • Model Number: XTR4/180
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
Details
  • Product Name:357636-XTR4/180
  • Display online time:2019-11-08
  • weight:47000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Weight:47000 kg
  • Undercut max:200 mm
  • Ground clearance:190 mm
  • Height of Cutting cross section:4200 mm
  • Width of Cutting cross section:4300 mm
  • Area of Cutting cross section:18 m²
  • Gantry height:290 mm
  • Max and Economical Cutting Motor:≤80/50 Mpa
  • Climbing capacity:±18°
  • Travelling speed:6.5 m/min
  • Grounding pressure:0.138 Mpa
  • Gross power:285 kW
  • Power of Cutting motor:180/110 kW
  • Power of pump station motor:90 kW
  • Supply voltage:AC1140
  • Frequency of supply:50Hz
  • Crawler width:450 mm
  • Out. width of crawlers:1700 mm
  • Loading ability:Star wheel type/3.0 m³/min
  • Pressure of the spraying system:≥2 MPa
  • Maximum size of nonremovable part:4.8×1.0×1.0 m
  • Maximum weight of nonremovable part:5757 kg


XCMG Official Manufacturer Tunnel Roadheader XTR4/180 for saleXCMG Official Manufacturer Tunnel Roadheader XTR4/180 for saleXTR4/180 Tunnel Roadheader

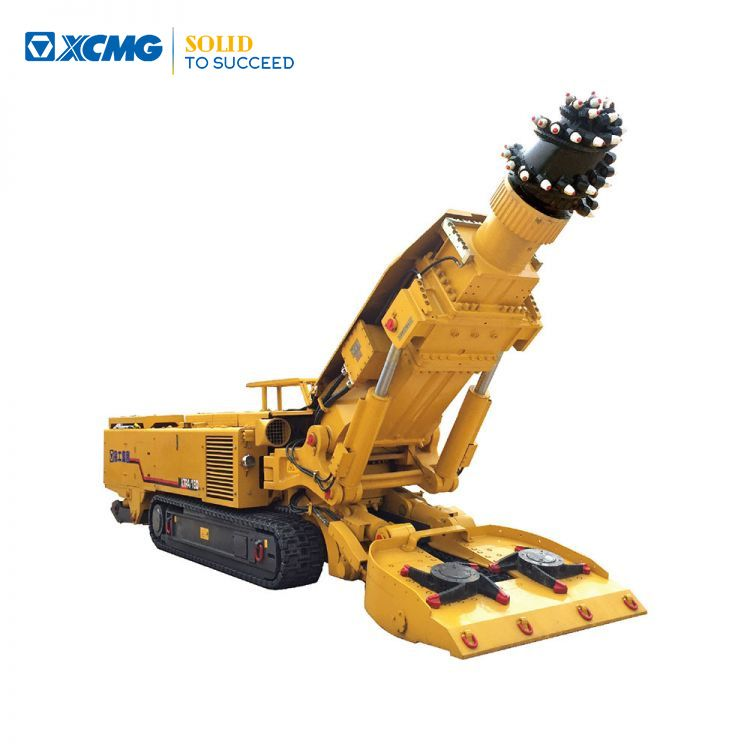

XTR4/180 Boom-type Tunnel Roadheader is equipped with cutting structure, brace structure, operation platform, machine assembly, traveling, hydraulic system, anti-dusting spray system, electronic system, lubrication system, cooling system, shovel plate assembly, first transport, second transport and other components. Modular and narrow body design of the whole machine, can meet the construction requirements of narrow roadway, The main hydraulic components using the international first-line brand products, high overall configuration, cutting motorpumping station motorcontrol system with explosion-proof function, Safe and reliable.XCMG Official Manufacturer Tunnel Roadheader XTR4/180 for saleXCMG Official Manufacturer Tunnel Roadheader XTR4/180 for saleXCMG Official Manufacturer Tunnel Roadheader XTR4/180 for sale

Items

parameter

Overall weight

47000kg

Shape

size

Length/include second freighter

11870/19000mm

Width

Shovel plate

1900mm

Main body

1700mm

High

Cutting head is laid horizontally on the highest point.

2030mm

Main body

1780mm

Dinting undercut

200mm

Ground clearance of machine

190mm

Range of positioning cutting

Height

4200mm

Width

4300mm

Area

18m2

Compressive strength of coal petrography to be cut

50MPa

Climbing capacity

±18°

Travelling speed

7m/min

Grounding pressure

0.138MPa

Gross power

285kW

Power of Cutting motor

180/110kW

Power of pumping stations motor

90kW

Supply voltage

AC1140V

Frequency of supply

50Hz

Loading capacity

Star wheel/3.0 m³/min

Crawler width

450mm

Out. width of crawlers

1700mm

Water pressure of spraying

1-2MPa

Maximum size of nonremovable part

4.8×1.0×1.0m

Maximum weight of nonremovable part

5757kg

XCMG Official Manufacturer Tunnel Roadheader XTR4/180 for saleXCMG Official Manufacturer Tunnel Roadheader XTR4/180 for sale
