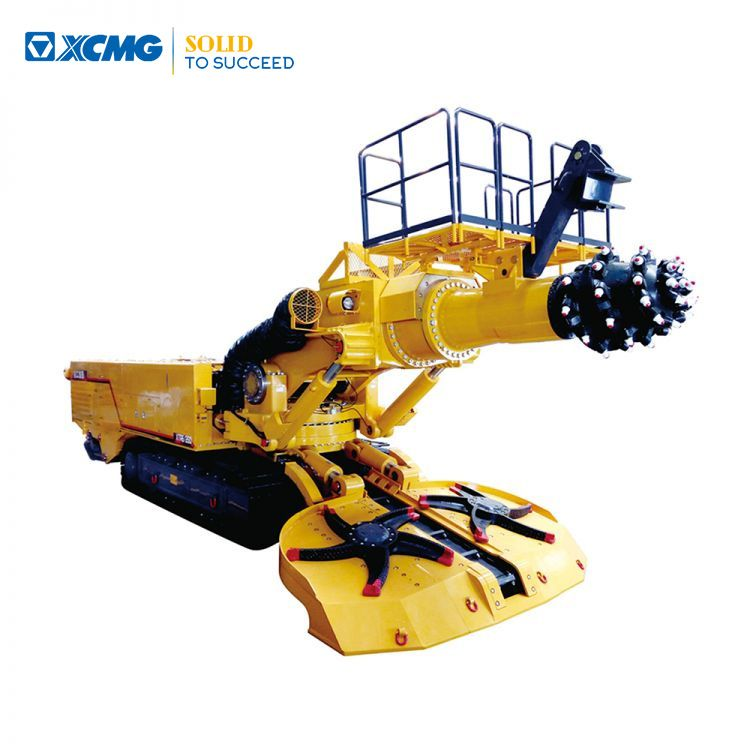

XCMG Official Manufacturer Tunnel Roadheader XTR6/260 for sale
Summary
- Overall Dimension(L*W*H):14000×2600(Main body)
- Weight:90000 kg
- Model Number: XTR6/260
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9003
Specifications
- Weight:90000.000kg
- Condition:New
- Moving Type:Crawler
- Weight:90000 kg
- Undercut max:200 mm
- Ground clearance:270 mm
- Height of Cutting cross section:6200 mm
- Width of Cutting cross section:6000 mm
- Area of Cutting cross section:34 m²
- Gantry height:300 mm
- Max and Economical Cutting Motor:≤120/90 Mpa
- Climbing capacity:±18°
- Travelling speed:6 m/min
- Grounding pressure:0.145 Mpa
- Gross power:462 kW
- Power of Cutting motor:260/200 kW
- Power of pump station motor:132 kW
- Supply voltage:AC1140
- Frequency of supply:50Hz
- Crawler width:650 mm
- Out. width of crawlers:2600 mm
- Loading ability:Star wheel type/4.75 m³/min
- Pressure of the spraying system:≥2 MPa
- Maximum size of nonremovable part:8.8×2.98×2.3 m
- Maximum weight of nonremovable part:10152 kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XTR6/260
Tunnel Roadheader
XTR6/260 Boom-Type Tunnel Roadheader is equipped
with cutting structure and a supporting structure, a control table, body
assembly, walking institutions, hydraulic system, spray dust removal system,
electrical system, lubricating system, a guard board assembly, identification
and coating, cooling system, a shovel plate assembly, first transport，second
transport. The machine has high safety and reliability. High efficiency cutting
head with double helix line is used in tunnel, which is used to break the rock,
and the cutting tooth is less. Optional equipped with airborne dust removal
device, dust removal effect is good, and it can effectively reduce the dust
pollution. Use air cooling, cooling effect is good, in the absence of external
water source, the host can work properly. With remote control, remote control
of equipment can be realized, and the personal safety and machine equipment can
be effectively protected, improve the safety and working efficiency.
|
Items |
parameter |
|||
|
Overall weight |
92000kg |
|||
|
Shape size |
Length/include second
freighter |
13500/21000mm |
||
|
Width |
Shovel plate |
3200/3600/3800mm |
||
|
Main body |
2600mm |
|||
|
High |
Cutting head is laid
horizontally on the highest point. |
4290mm |
||
|
Main body |
2610mm |
|||
|
Dinting undercut |
200mm |
|||
|
Ground clearance of
machine |
270mm |
|||
|
Range of positioning
cutting |
Height |
6200mm |
||
|
Width |
6000mm |
|||
|
Area |
34m2 |
|||
|
Compressive strength
of petrography to be cut |
≤90MPa |
|||
|
Climbing capacity |
±18° |
|||
|
Travelling speed |
6m/min |
|||
|
Grounding pressure |
0.145MPa |
|||
|
Gross power |
462kW |
|||
|
Power of Cutting motor |
260/200kW |
|||
|
Power of pumping
stations motor |
132kW |
|||
|
Supply voltage |
AC1140V |
|||
|
Frequency of supply |
50Hz |
|||
|
Loading
capacity |
Star
wheel/4.3 m³/min |
|||
|
Crawler width |
650mm |
|||
|
Out. width of crawlers |
2600mm |
|||
|
Water pressure of
spraying |
≤2MPa |
|||
|
Maximum size of
nonremovable part |
5.5×1.5×3.2m |
|||
|
Maximum weight of nonremovable
part |
10152kg |
|||
