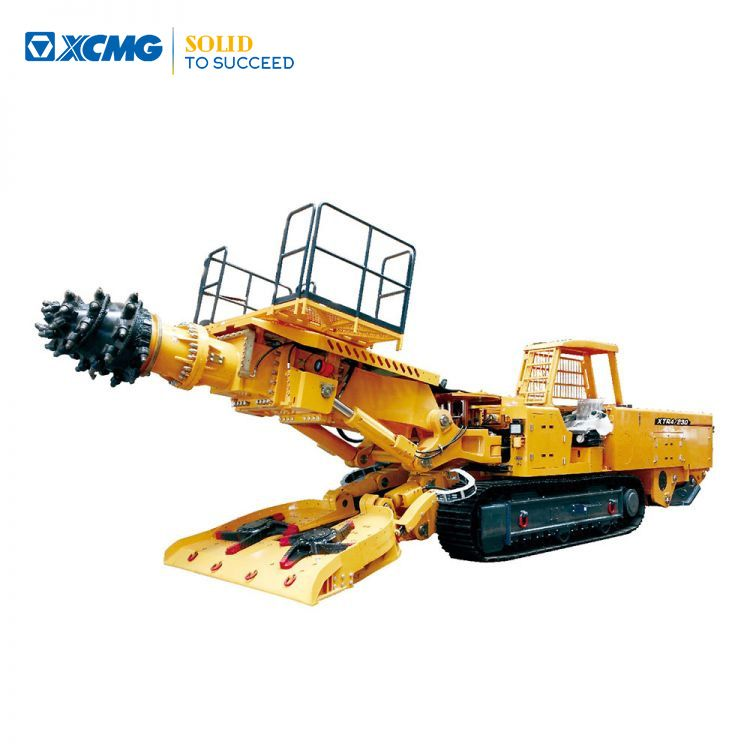

XCMG Official Manufacturer Tunnel Roadheader XTR4/230 for sale

  • XCMG Official Manufacturer Tunnel Roadheader XTR4/230 for sale

Share:
XCMG Official Manufacturer Tunnel Roadheader XTR4/230 for sale
FOB for Mining Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official Manufacturer Tunnel Roadheader XTR4/230 for sale
  • Summary
  • Details
Summary
  • Overall Dimension(L*W*H):13470×2100(Main body)
  • Weight:58000 kg
  • Model Number: XTR4/230
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9002
Details
  • Product Name:357636-XTR4/230
  • Display online time:2019-11-08
  • weight:58000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Weight:58000 kg
  • Undercut max:200 mm
  • Ground clearance:290 mm
  • Height of Cutting cross section:4600 mm
  • Width of Cutting cross section:5100 mm
  • Area of Cutting cross section:23 m²
  • Gantry height:350 mm
  • Max and Economical Cutting Motor:≤90/60 Mpa
  • Climbing capacity:±18°
  • Travelling speed:6.5 m/min
  • Grounding pressure:0.15 Mpa
  • Gross power:374 kW
  • Power of Cutting motor:230/135 kW
  • Power of pump station motor:110 kW
  • Supply voltage:AC1140
  • Frequency of supply:50Hz
  • Crawler width:500 mm
  • Out. width of crawlers:2100 mm
  • Loading ability:Star wheel type/3.0 m³/min
  • Pressure of the spraying system:External spraying:≥1.5 Mpa;Internal spraying:≥3 MPa
  • Maximum size of nonremovable part:4.4×1.1×1.2 m
  • Maximum weight of nonremovable part:6437 kg


XCMG Official Manufacturer Tunnel Roadheader XTR4/230 for saleXCMG Official Manufacturer Tunnel Roadheader XTR4/230 for saleXTR4/230 Tunnel Roadheader

XTR4/230 Boom-type Tunnel Roadheader isequipped with cutting structure, brace structure,operation platform, machine assembly, traveling, hydraulic system, anti-dustingspray system, electronic system, lubrication system, cooling system, shovelplate assembly, first transport, second transport and other components. Modularand narrow body design of the whole machine, can meet the constructionrequirements of narrow roadway, The main hydraulic components using theinternational first-line brand products, high overall configuration, cuttingmotorpumping station motorcontrol system withexplosion-proof function, Safe and reliable.XCMG Official Manufacturer Tunnel Roadheader XTR4/230 for saleXCMG Official Manufacturer Tunnel Roadheader XTR4/230 for saleXCMG Official Manufacturer Tunnel Roadheader XTR4/230 for sale

Items

parameter

Overall weight

58000kg

Shape

size

Length/include second freighter

13470/21000mm

Width

Shovel plate

2200mm

Main body

2100mm

High

Cutting head is laid horizontally on the highest point.

2200mm

Main body

1965mm

Dinting undercut

200mm

Ground clearance of machine

230mm

Range of positioning cutting

Height

4600mm

Width

5100mm

Area

23m2

Compressive strength of petrography to be cut

60MPa

Climbing capacity

±18°

Travelling speed

6.5m/min

Grounding pressure

0.15MPa

Gross power

374kW

Power of Cutting motor

230/135kW

Power of pumping stations motor

110kW

Supply voltage

AC1140V

Frequency of supply

50Hz

Loading capacity

Star wheel/3.0 m³/min

Crawler width

500mm

Out. width of crawlers

2100mm

Water pressure of spraying

Water pressure of outside spraying:1-2MPa

Water pressure of inside spraying:3MPa

Maximum size of nonremovable part

4.4×1.1×1.2m

Maximum weight of nonremovable part

6437kg
