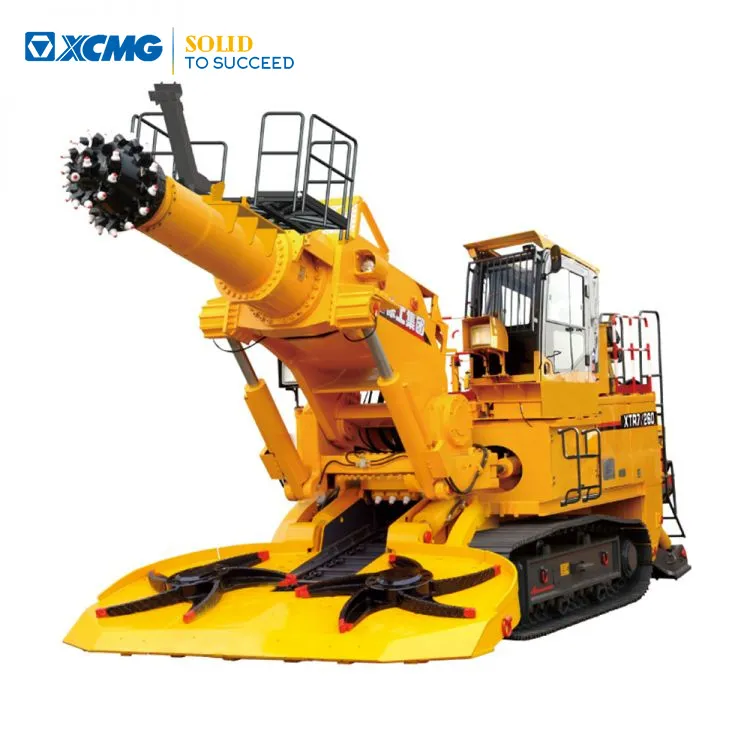

XCMG Official Manufacturer Tunnel Roadheader XTR7/260 for sale

  • XCMG Official Manufacturer Tunnel Roadheader XTR7/260 for sale

Share:
XCMG Official Manufacturer Tunnel Roadheader XTR7/260 for sale
FOB for Mining Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG Official Manufacturer Tunnel Roadheader XTR7/260 for sale
  • Summary
  • Details
Summary
  • Overall Dimension(L*W*H):14000×3200(Main body)
  • Weight:85000 kg
  • Model Number: XTR7/260
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9004
Details
  • Product Name:357636-XTR7/260
  • Display online time:2019-11-14
  • weight:85000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:crawler
  • Weight:85000 kg
  • Undercut max:440 mm
  • Ground clearance:220 mm
  • Height of Cutting cross section:7200 mm
  • Width of Cutting cross section:7500 mm
  • Area of Cutting cross section:53.2 m²
  • Gantry height:382 mm
  • Max and Economical Cutting Motor:≤120/90 Mpa
  • Climbing capacity:±18°
  • Travelling speed:9/15 m/min
  • Grounding pressure:0.145 Mpa
  • Gross power:447 kW
  • Power of Cutting motor:260/220 kW
  • Power of pump station motor:132 kW
  • Supply voltage:AC1140
  • Frequency of supply:50Hz
  • Crawler width:800 mm
  • Out. width of crawlers:3200 mm
  • Loading ability:Star wheel type/4.3 m³/min
  • Pressure of the spraying system:≥2 MPa
  • Maximum size of nonremovable part:5.5×1.5×3.3 m
  • Maximum weight of nonremovable part:21310 kg


XCMG Official Manufacturer Tunnel Roadheader XTR7/260 for saleXCMG Official Manufacturer Tunnel Roadheader XTR7/260 for saleXTR7/260 Tunnel Roadheader

XTR7/260 Boom-Type Tunnel Roadheader is equipped with cutting structure and a supporting structure, a control table, body assembly, walking institutions, hydraulic system, spray dust removal system, electrical system, lubricating system, a guard board assembly, identification and coating, cooling system, a shovel plate assembly, first transport, second transport. The machine has high safety and reliability.

Optimization design of large span cutting arm, a small diameter single helix hard rock cutting head, cutting height can reach 7.2m, the effects of material collecting, stronger rock breaking capacity. Equipped with automatic roll cable control system to avoid the damage of the cable, improve work efficiency. Double layer detachable frame and the split type rotary table, convenient installation, repair. Use air cooling, cooling effect is good, in the absence of external water source, the host can work properly. With remote control, remote control of equipment can be realized, and the personal safety and machine equipment can be effectively protected, improve the safety and working efficiency.XCMG Official Manufacturer Tunnel Roadheader XTR7/260 for saleXCMG Official Manufacturer Tunnel Roadheader XTR7/260 for saleXCMG Official Manufacturer Tunnel Roadheader XTR7/260 for sale

Items

parameter

Overall weight

90000kg

Shape

size

Length/include second freighter

14000/19700mm

Width

Shovel plate

3800mm

Main body

3200mm

High

Cutting head is laid horizontally on the highest point.

4125mm

Main body

3650mm

Dinting undercut

440mm

Ground clearance of machine

220mm

Range of positioning cutting

Height

7200mm

Width

7500mm

Area

53.2m2

Compressive strength of petrography to be cut

80MPa

Climbing capacity

±18°

Travelling speed

6m/min

Grounding pressure

0.145MPa

Gross power

447kW

Power of Cutting motor

260/220kW

Power of pumping stations motor

132kW

Supply voltage

AC1140V

Frequency of supply

50Hz

Rotation speed of cutting head

54/27r/min

Crawler width

800mm

Out. width of crawlers

3200mm

Water pressure of spraying

2MPa

Maximum size of nonremovable part

8.8×2.98×2.3m

Maximum weight of nonremovable part

21310 kg

XCMG Official Manufacturer Tunnel Roadheader XTR7/260 for saleXCMG Official Manufacturer Tunnel Roadheader XTR7/260 for sale
