- Overall Dimension(L*W*H):6800×2160×1420 mm
- Weight:25000 kg
- Model Number: XZJ5252GSSZ
- Brand Name:XCMG
- Place of Origin:China
- Product Name:357636-XZJ5252GSSZ
- Display online time:2019-11-07
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Moving Type:wheel
- Chassis Model:ZZ1257N4641W
- Chassis Power:247 Kw
- Wheelbase:4300+1350/4600+1350 mm
- Total Mass:25000 kg
- Kerb Mass:11390 kg
- Tank capacity:16.3 m³
- Operating speed:5～20 km/h
- Sprinkler width:≥16 m
- Sprinkling water:0.2～2.0 L/m²
- Nozzle flushing system pressure:≥300 kPa
- Spray gun flushing flow:≥60 L/min
- Spray gun range:35～38 m
- Suction height:6.5 m
Default of sprinkler species diversity, equipped with duckbill before the nozzle or round head blunt mouth, cylindrical mounted behindsprinkler tuo, lateral jet lotus flower is aspersed head, which can realizeforward and sprinkle, with lateral jet, take after work platform, platform withsprinkler gun, sprinkler gun have a dc, the heavy rain, moderate rain, drizzle,adjustable, can spray pesticide fog can rotate 360 degrees, greatly enhance thevehicle applicability, improve the utilization rate of vehicles.
（2）Easy to use
(a) there are fewer blockages. The waterway is equipped withmulti-filtration device, which combines the coarse filtration with the finefiltration to minimize the blockage of pipes, nozzles and water pumps.
(b) it is convenient to add water. The built-in water pumphas the self-priming function and the filter screen protection, can pump in thepump out, the field water; The pipes are equipped with fire joints, which canbe filled with water from the fire water. The tank cover is free to switch andcan be used to add water to the tank.
(c) simple operation. The control of each function iscontrolled by electric control, one key switch, no manual.
(a) the tank is made of high-performance steel plate, whichis divided into compartments by partitions, which can effectively reduce theimpact caused by liquid in the tank.
(b) the water tank is equipped with a measuring tube, whichcan be used to check the water quantity in the tank in time to avoid the misoperation caused by insufficient water supply.
(c) the water tank is equipped with a low water level alarmdevice. When the water level is lower than the set height, there will be analarm sound.
(d) the water tank is equipped with overflow device, whichcan overflow in time to avoid overload.

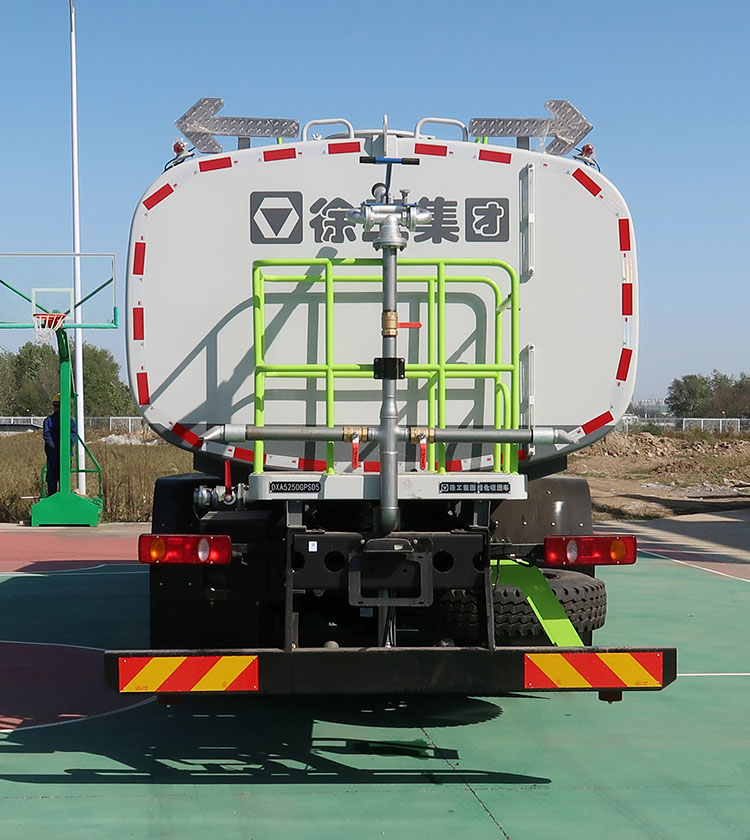

(e) the upper end of the water tank is provided with a gate,which can be added directly to the water. It can also be used for maintenancepersonnel to access the tank and to climb the ladder easily.
1. The length of the vehicle with the rear operating platform is: 9980×2500×3600mm, corresponding to the rear suspension 2800mm, corresponding to the departure angle of 12°,corresponding to the outer dimensions of the tank (length × long axis × short axis):6800×2160 ×1420mm.
2. The length of the vehicle without the rear operating platform is: 9760×2500×3690mm, corresponding to the rear suspension 2580mm, corresponding to the departure angle of 13°,corresponding to the outer dimensions of the tank (length × long axis × short axis):6920×2120 ×1420mm.
0.2～2.0 L/ m2
Nozzle Flushing System Pressure
Spray gun flushing flow
Spray gun range
