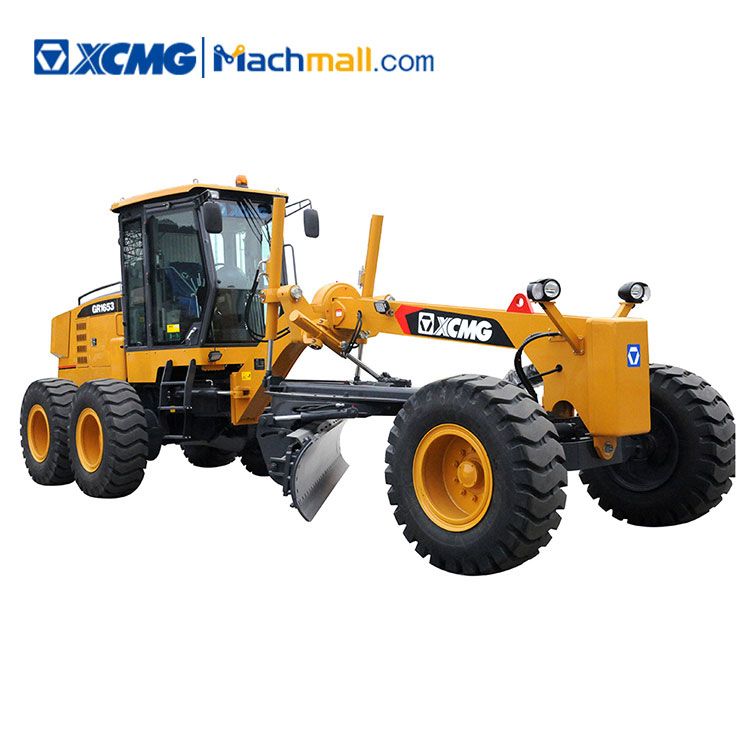

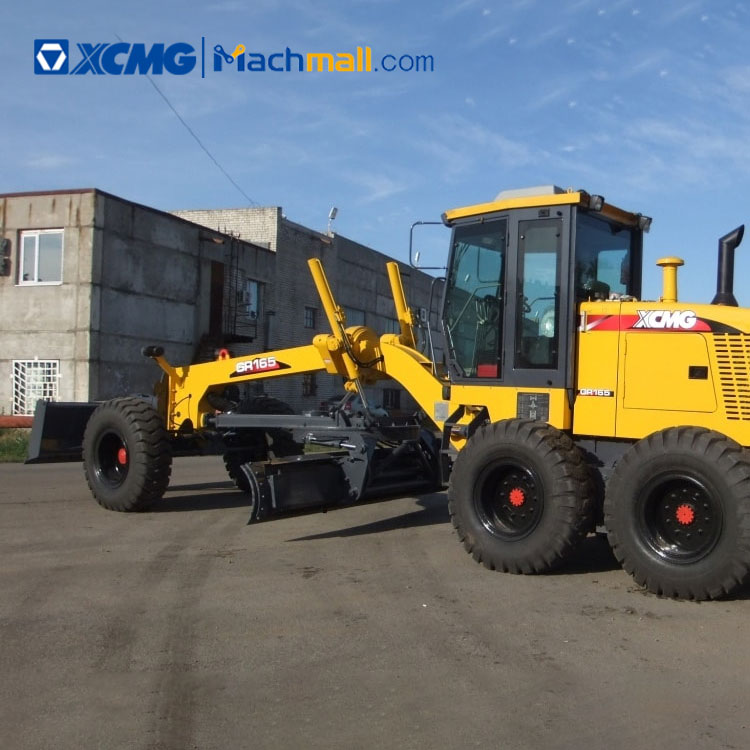

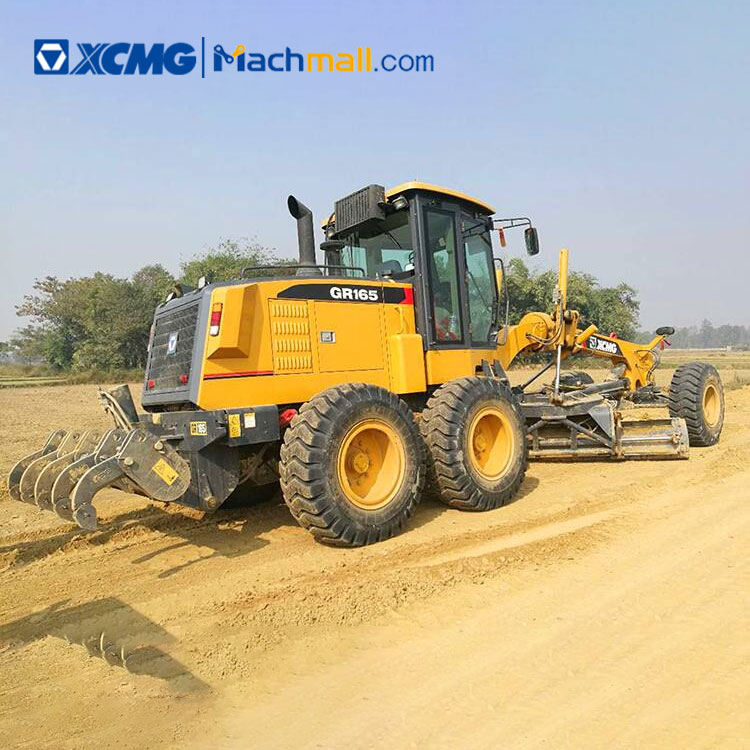

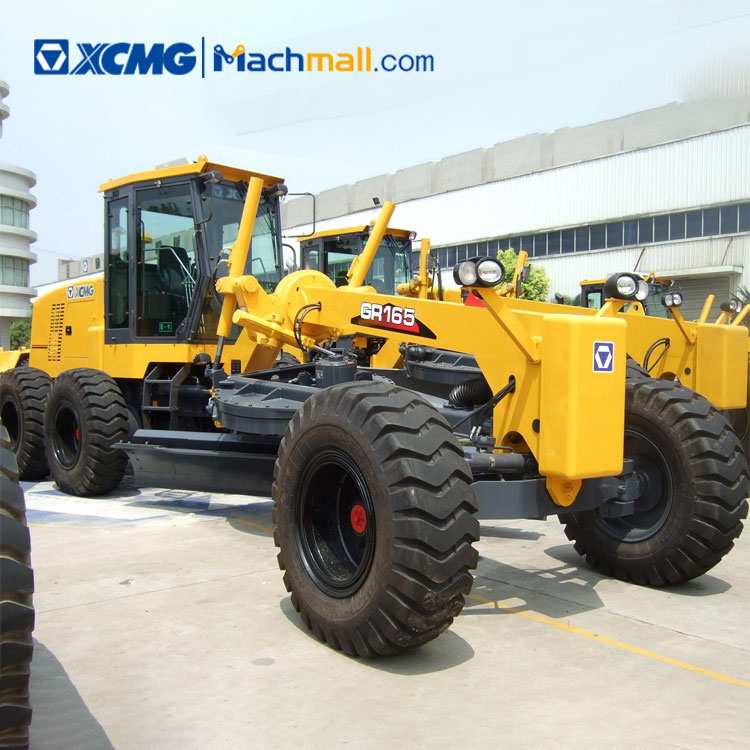

XCMG official 170HP motor grader GR165 for sale

  • XCMG official 170HP motor grader GR165 for sale
  • XCMG official 170HP motor grader GR165 for sale
  • XCMG official 170HP motor grader GR165 for sale
  • XCMG official 170HP motor grader GR165 for sale
  • XCMG official 170HP motor grader GR165 for sale
  • XCMG official 170HP motor grader GR165 for sale
  • XCMG official 170HP motor grader GR165 for sale

Share:
XCMG official 170HP motor grader GR165 for sale
FOB for Road Mach Reference Price:Get Latest Price
$50000.00-$80000.00 1 / EA (Min. Order)
Model: GR165
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG official 170HP motor grader GR165 for sale
XCMG official 170HP motor grader GR165 for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
  • 360-degree VR videos
  • Product Catalog
Summary
Details
  • Product Name:G6041F64DC2BA3
  • Display online time:2021-03-16
  • weight:15000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other

XCMG official 170HP motor grader GR165 for sale

XCMG official 170HP motor grader GR165.



XCMG motor grader GR165 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.



XCMG motor grader GR165 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.



Advantages and Highlights:



1. XCMG motor grader GR165 adopts Dongfeng Cummins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.



2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.



3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential.



4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.



5. The sealed cab is used to configure the air conditioning system.

XCMG official 170HP motor grader GR165 for sale

Item

GR165

Basic parameters

Engine model

6BTA5.9-C180-

Rated power/speed

130kW/2200rpm

Overall dimension (standard)

8900x2625x3470

Total weight (standard)

15000kg

Tire specification

17.5-25

Ground clearance (front axle)

430mm

Tread

2156mm

Space of front and rear axles

6219 mm

Performance parameters

Forward velocity

5811192338km/h

Reverse speed

51123km/h

Tractive effort f=0.75

77kN

Maximum gradeability

25%

Tire inflation pressure

260kPa

Working system pressure

16MPa

Transmission pressure

1.3—1.8Mpa

Working parameters

Maximum steering angle of front wheel

±50°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

±15°

Maximum steering angle of frame

±27°

Minimum turning radius

7.3m

Scrape knife

Maximum lift height

450mm

Maximum cutting depth

500mm

Maximum tilt angle

90°

Cutting angle

28°—70°

Angle of revolution

360°

Length & chord height

3660x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

24L

Transmission

38L

Hydraulic oil

110L

Drive axle

28L

Balancing box

46 L
