XCMG official manufacturer GR3005 motor grader for sale

  • XCMG official manufacturer GR3005 motor grader for sale

Share:
XCMG official manufacturer GR3005 motor grader for sale
FOB for Road Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping
Payment Terms:
XCMG official manufacturer GR3005 motor grader for sale
  • Summary
  • Details
Summary
  • Dimension(L*W*H):10615 x 3280 x 3960mm
  • Weight:28000kg
  • Model Number:GR3005
  • Brand Name:XCMG
  • Place of Origin:China
  • Reverse Speed(km/h):5、11、23m/h
  • Forward Speed(km/h):5、8、11、19、23、40km/h
  • Certification:Can provide relevant certification
Details
  • Product Name:G5E5E1F5F6CE2B
  • Display online time:2020-05-06
  • weight:28000.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Engine model:QSL8.9-C325-30
  • Rated power/speed:242kW/2100rpm
  • Tire specification:20.5-25
  • Ground clearance:450mm
  • Space of front and rear axles :7617mm
  • Tractive effort f=0.75:≥140kN
  • Working system pressure:22MPa
  • Maximum steering angle of front wheel:±45°
  • Minimum turning radius:9m
  • Maximum lift height:419mm
  • Maximum shoveling depth:438mm

XCMG official manufacturer GR3005 motor grader for sale


XCMG official manufacturer GR3005 motor grader for saleXCMG official manufacturer GR3005 motor grader for sale

Item

Unit

GR3005

Basic parameters

Engine model

QSL8.9-C325-30

Rated power/speed

kW/rpm

242/2100

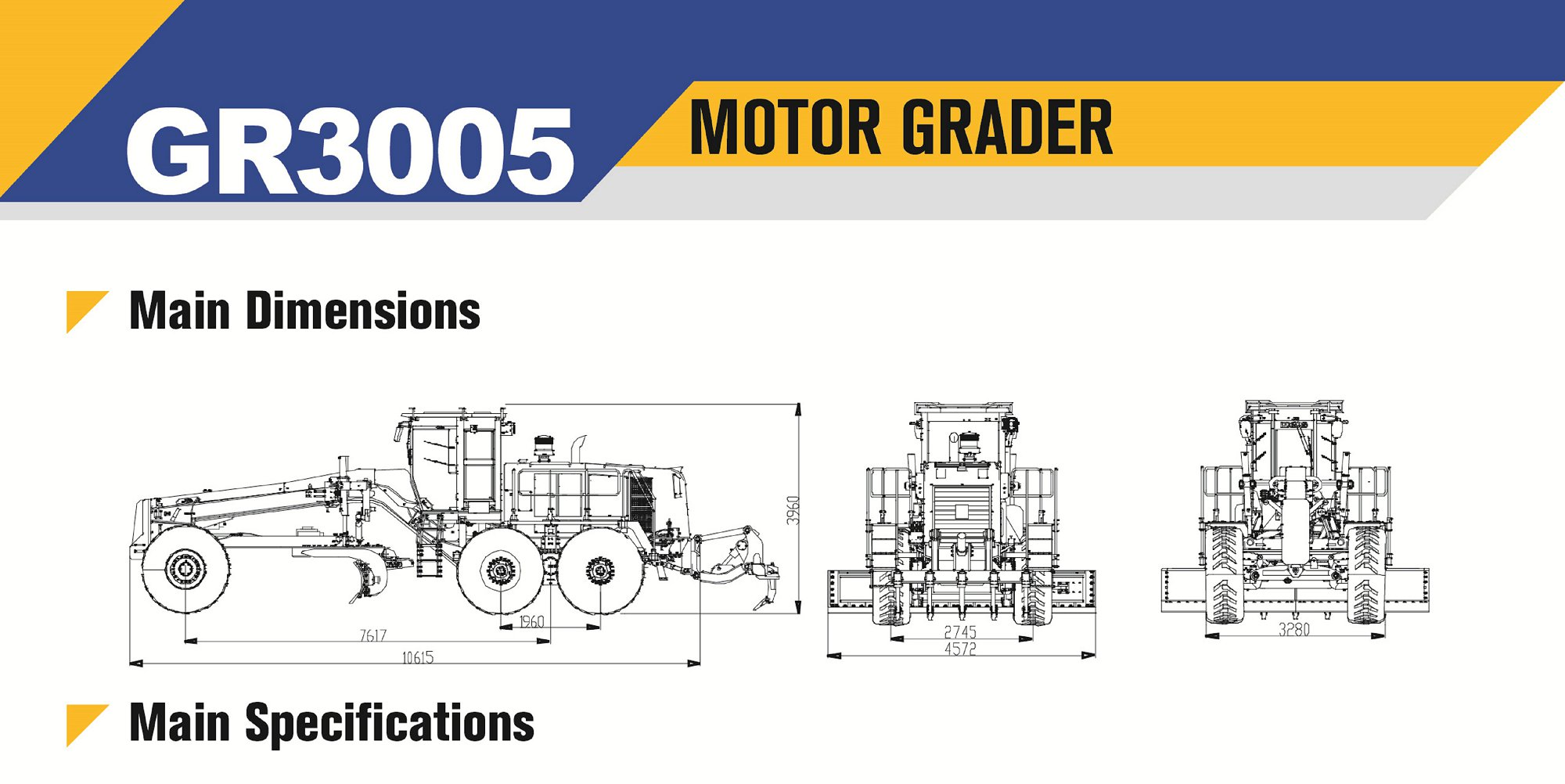

Overall dimension(standard)

mm

10615 x 3280 x 3960

Total weight(standard)

kg

28000

Tire specification

20.5-25

Ground clearance

mm

450

Tread

mm

2745

Space of front and rear axles

mm

7617

Space of middle and rear wheels

mm

1960

Performance parameters

Forward velocity

km/h

5811192340

Reverse speed

km/h

51123

Tractive effort f=0.75

kN

140

Maximum gradeadbility

%

30

Inflation pressure of tires

kPa

330

Working system pressure

MPa

22

Transmission pressure

MPa

/

Working parameters

Maximum steering angle of front wheels

°

±45

Maximum inclination angle of front wheels

°

±17

Maximum swing angle of front axle

°

±15

Maximum swing angle of balance box

°

front 15, rear 15

Maximum steering angle of frame

°

±23

Maximum turning radius

m

9

Blade

Maximum lifting height

mm

419

Maximum shoveling depth

mm

438

Maximum lateral inclination angle

°

90

Cutting angle

°

40

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

4572 x 686

Coolant

L

50

Fuel tank

L

480

Engine

L

24

Transmission

L

38

Balance box

L

186

Drive axle

L

106

Hydraulic oil

L

210

XCMG official manufacturer GR3005 motor grader for saleXCMG official manufacturer GR3005 motor grader for saleXCMG official manufacturer GR3005 motor grader for sale
