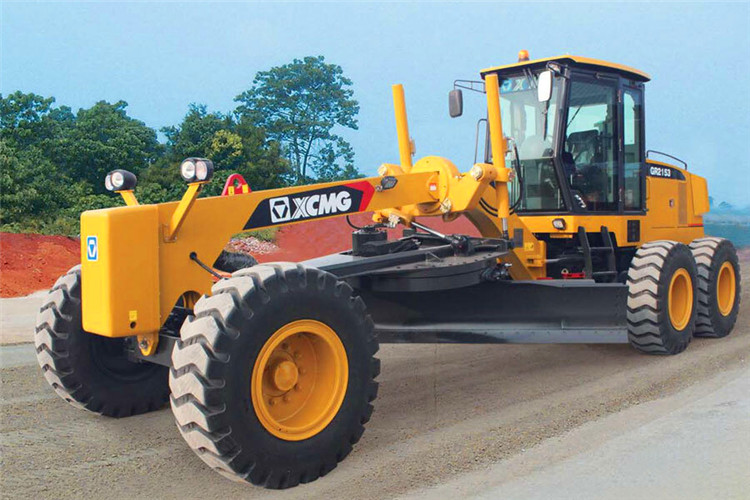

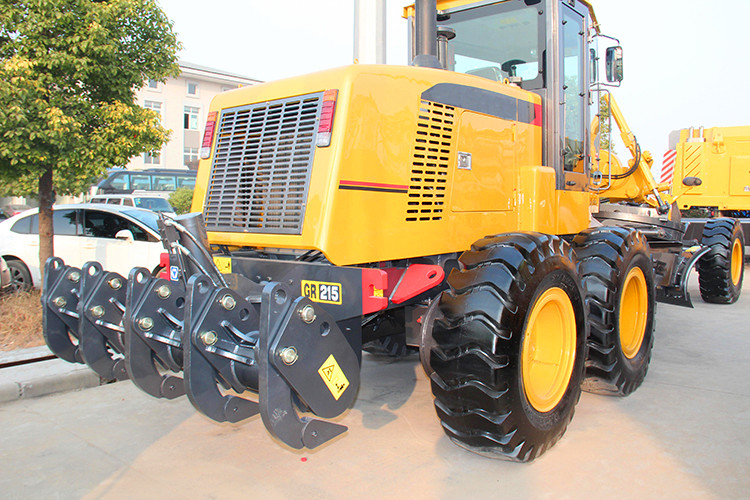

XCMG 215HP GR2153 road machine motor grader for sale
FOB for Road Mach Reference Price:Get Latest Price
$68000.00-$75000.00 1 / EA (Min. Order)
Model: GR2153
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 215HP GR2153 road machine motor grader for sale
XCMG 215HP GR2153 road machine motor grader for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
Details
  • Product Name:G6006B0174210B
  • Display online time:2021-01-19
  • weight:16500.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other
  • Weight:16500kg
  • Dimension(L*W*H):8970*2625*3420mm
  • Engine Brand:Cummins
  • Forward Speed:33km/h
  • Reverse Speed:23km/h
  • Rated Power/Speed:164kw/2000rpm
  • Ground Clearance:430mm
  • Maximum Gradeability:25%

XCMG 215HP GR2153 road machine motor grader for sale

XCMG 215HP GR2153 road machine motor grader.



The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

1. Energy saving and noise reduction: adopt low speed engine transmission line, low fuel consumption and energy saving and environmental protection; The transmission system is equipped with low speed ratio, and the average fuel consumption is reduced by about 8%. Three levels of engine, cab and seat vibration reduction; The cab is supported by six points; Deceleration of engine, cooling fan with large diameter, sound absorption sponge inside the hood, good sealing of the cab reduces noise of the whole machine.

2. Strong power: Shangchai efficient China stage III engine and hydraulic torque converter, the optimal torque converter achieves the best matching of torque converter and engine, reducing the start time, increase the work of torque output at low speed, strong and powerful. The optional herringbone tread tires, the adhesion can be increased by 10% in loosing soil and leveling, further enhance the power output.

3. Efficient operation: improves the displacement of hydraulic pump and hydraulic motor, increase the oil cylinder speed by 20%, realizes the industry leading work efficiency, the optimized blade shape can turn and remove the soil quickly and efficiently, and realize optimal load distribution and the minimum material accumulation within the rotary discarea.

XCMG 215HP GR2153 road machine motor grader for sale

Item
GR2153
Basic parameters
Engine model
QSB6.7
Rated power/speed
164kW/2000rpm
Overall dimension (standard)
8970x2625x3420mm
Total weight (standard)
16500 kg
Tire specification
17.5-25
Ground clearance (front axle)
430mm
Space of front and rear axles
6219 mm
Space of middle and rear wheels
1538 mm
Performance
parameters
Forward velocity
5,8,11,19,23,38km/h
Reverse speed
5,11,23km/h
Tractive effort f=0.75
85 kN
Maximum gradeability
25%
Tire inflation pressure
260kPa
Working system pressure
20MPa
Transmission pressure
1.3-1.8Mpa
Working parameters
Maximum steering angle of front wheel
±48°
Maximum slant angle of front wheel
±17°
Maximum oscillating angle of front axle
±15°
Maximum oscillating angle of equilibrium box
forwards15°, Reverse15°
Maximum steering angle of frame
±27°
Minimum turning radius
7.3m
Scrape knife
Maximum lift height
400mm
Maximum cutting depth
500mm
Maximum tilt angle
90°
Cutting angle
28°-70°
Angle of revolution
360°
Length & chord height
3965x610mm
Oil filling amount
Coolant
50L
Fuel tank
280L
Engine
24L
Transmission
38L
Equilibrium box
46L
Coolant
28L
Hydraulic oil
110L
