XCMG factory road roller tires 26 ton XP263S for sale
Summary
- Weight:26300kg
- Dimension(L*W*H):6957*2470*3330mm
- Power(W):159kW
- Model Number:XP263S
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:50%
- Travel Speed:0~10.6km/h
- Static Linear Pressure:784N/cm
- Type:pneumatic tire roller
- Certification:CE/ISO9001
Specifications
- weight:26300.000kg
- Condition:New
- Moving Type:Wheel
- Compacting width:2360mm
- Ground pressure:200-470mm
- Wheelbase:3840mm
- Minimum ground clearance:300mm
- Minimum turning radius:7620mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

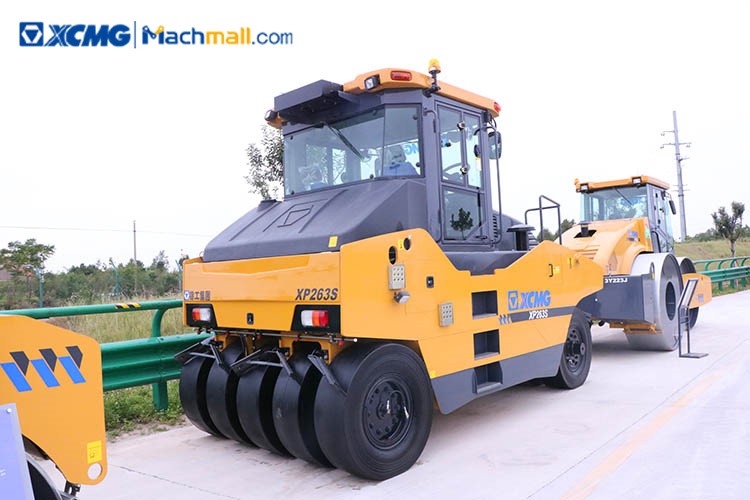

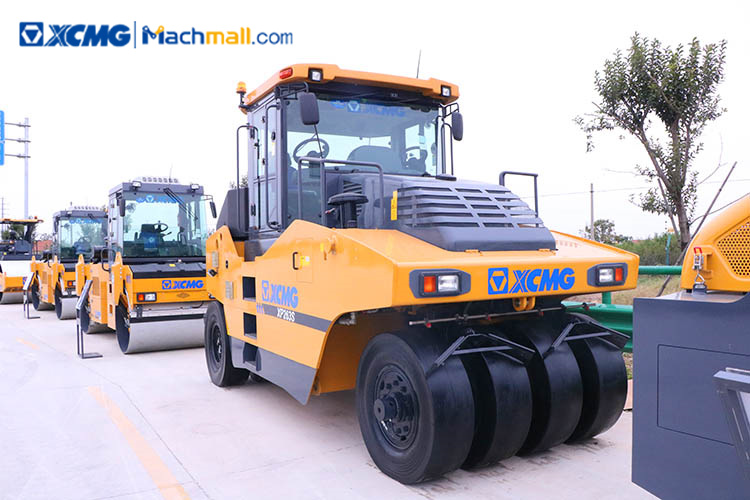

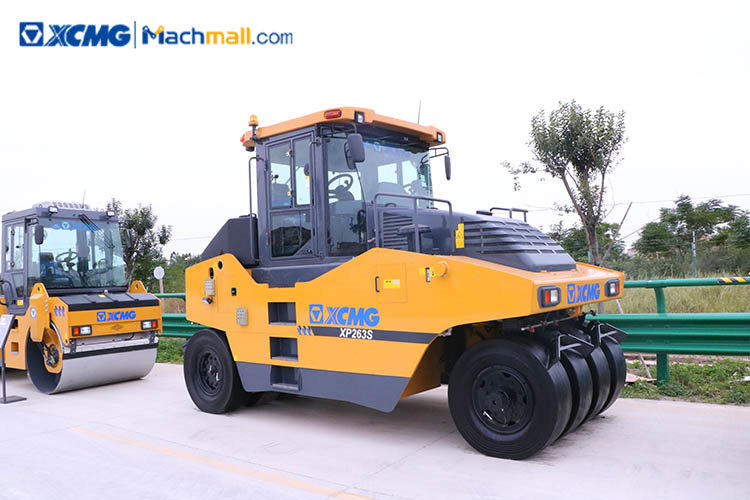

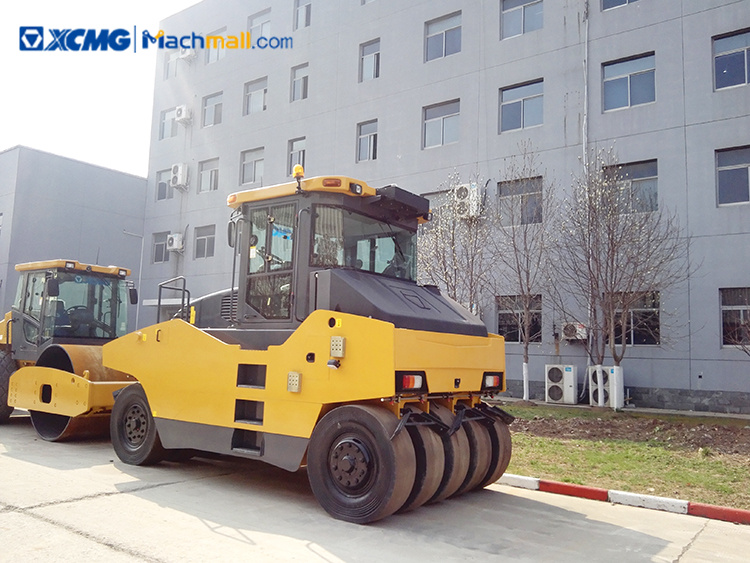

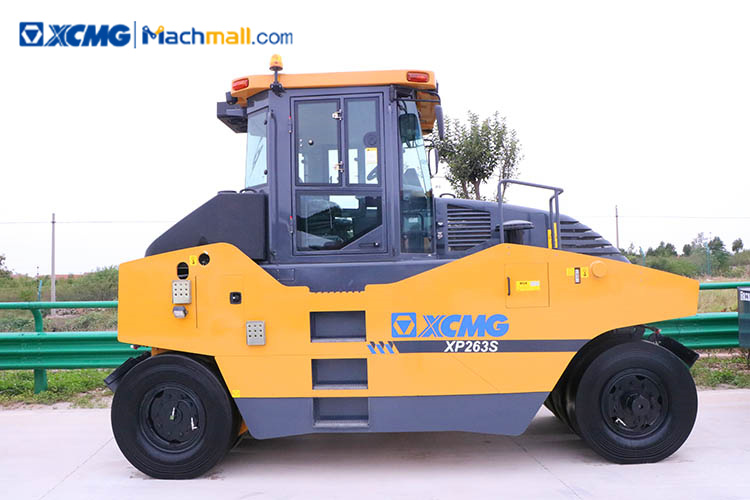

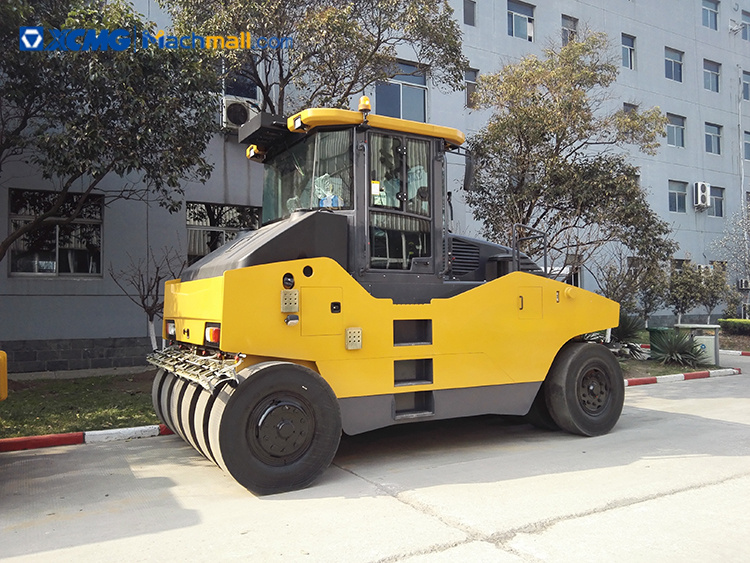

XCMG factory road roller tires 26 ton XP263S.
XCMG road roller tires XP263S is a large-tonnage pneumatic tire roller produced according to market requirements, which will take pneumatic tires as working device for compacting paved materials.
The XCMG road roller tires XP263S is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and flling engineering. XCMG road roller tires XP263S is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.
Performance Characteristics:
1. SC7H180.2G3 electronic control diesel engine has the advantages of high reliability, fuel economy and low noise.
2. Adopting imported closed hydraulic drive system which composed of electro-hydraulic proportional variable displacement pump and motor, ensures better drive performance and higher gradeability.
3. Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions.
4. Electronic lever with operation comfort can realize the soft start, soft parking performance of the machine.
5. Dual-circuit brake technology has higher brake effect, fast response speed, short brake distance and higher reliability. Guarantee safety of the whole machine, and it is particularly applicable for working in mountainous area.
|
Item |
Unit |
XP263S |
|
|
Maximum operating mass |
kg |
26300 |
|
|
Compaction width |
mm |
2360 |
|
|
Overlapping of tyres |
mm |
65 |
|
|
Ground pressure |
kPa |
200-470 |
|
|
Minimum turning radius |
mm |
7620 |
|
|
Swing quantity of front wheel |
mm |
50 |
|
|
Minimum ground clearance |
mm |
300 |
|
|
Theoretical gradeability |
% |
20 |
|
|
Wheel base |
mm |
3840 |
|
|
Travel speed |
Gear I |
km/h |
0-8 |
|
Gear II |
km/h |
0-13 |
|
|
Engine |
Type |
- |
SC7H180.2G3 |
|
Rated power |
kw |
132 |
|
|
Rated speed |
r/min |
1800 |
|
|
Rated fuel consumption rate |
g/kw.h |
≤233 |
|
|
Tyre specification |
- |
13/80-20 |
|
|
Tyre tread pattern |
- |
Smooth tread |
|
|
Number of tyres |
- |
Front 4 rear 5 |
|
|
Length(standard water sprinkler) |
mm |
4925 |
|
|
Length(standard oil sprinkler) |
mm |
5015 |
|
|
Width |
mm |
2530 |
|
|
Height |
mm |
3470 |
|
|
Diesel tank volume |
L |
170 |
|
|
Water tank volume |
L |
650 |
|
