Gaodetec GSZ-10S 10m3/h air motor driven multifunctional rotor type shotcrete machine
GSZ-10S
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GSZ-10S
CE
1940*856*1375mm
1040kg
8kw
Air motor type
GSZ-10S
Gaodetec
China
10+9 m3/min
64mm
20mm
Dry: 300m / 100m, Wet: 40m / 15m
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):1940*856*1375mm
- Weight:1040kg
- Power(W):8kw
- Voltage:Air motor type
- Model Number:GSZ-10S
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:10+9 m3/min
- Hose Inner Diameter:64mm
- Max Aggregate Size:20mm
- Max. Conveying Distance:Dry: 300m / 100m, Wet: 40m / 15m
Specifications
- Weight:1040.000kg
- Condition:New
- Moving Type:Wheel
- output:10m3/h
- Air motor speed:650rpm
- Rotor speed:12.3rpm
- Rotor size in liters:14.5
- Max. aggregate size:20mm
- Machine Air pressure:0.2Mpa
- Air Motor Air pressure:0.63Mpa
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description
GSZ-10S Dry and Wet Shotcrete Machine
GSZ-10S Shotcrete machine is an air motor driven multifunctional rotor type machine for wet and dry spraying and conveying. Theoretical output is 10m3/h, Max. aggregate size is 20mm.
1. The materials which can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
2. Compared with traditional shotcrete machines, GSZ-10S has the advantage of being lighter and more compact.
3. It is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of rubber plates, longer service life, and better sealing effect.
Advantages and Benefits
1. Theoretical output can be adjusted.
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Reduced rebound.
5. For concrete repair, slope stabilization, excavation support or mining.
6. Light and compact machine design.
Technical Parameter

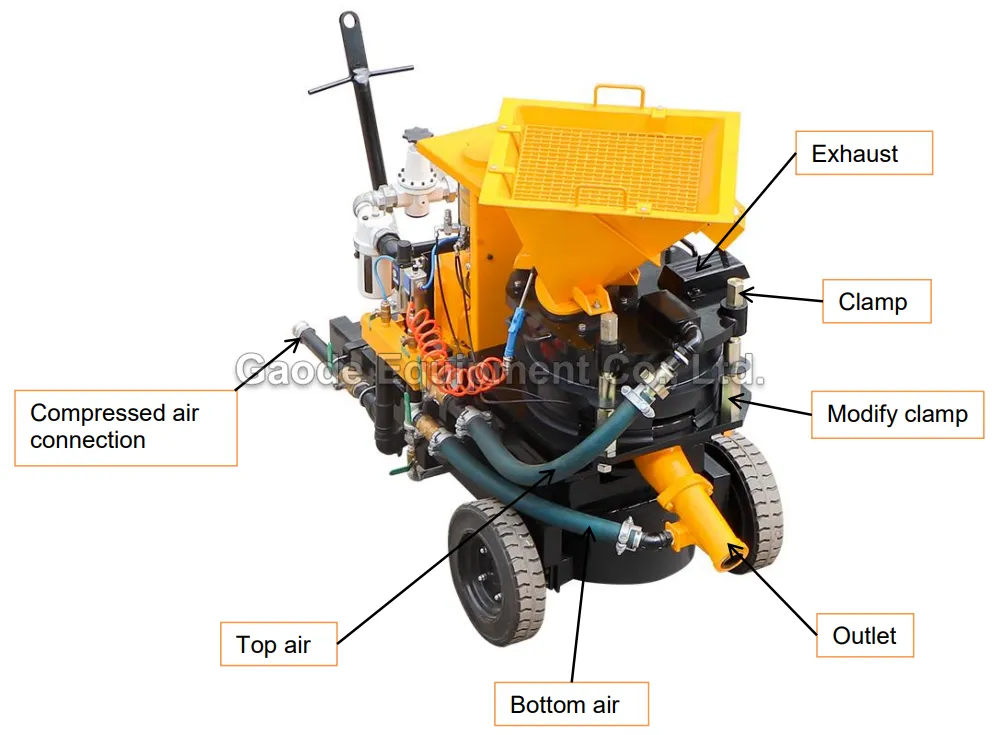

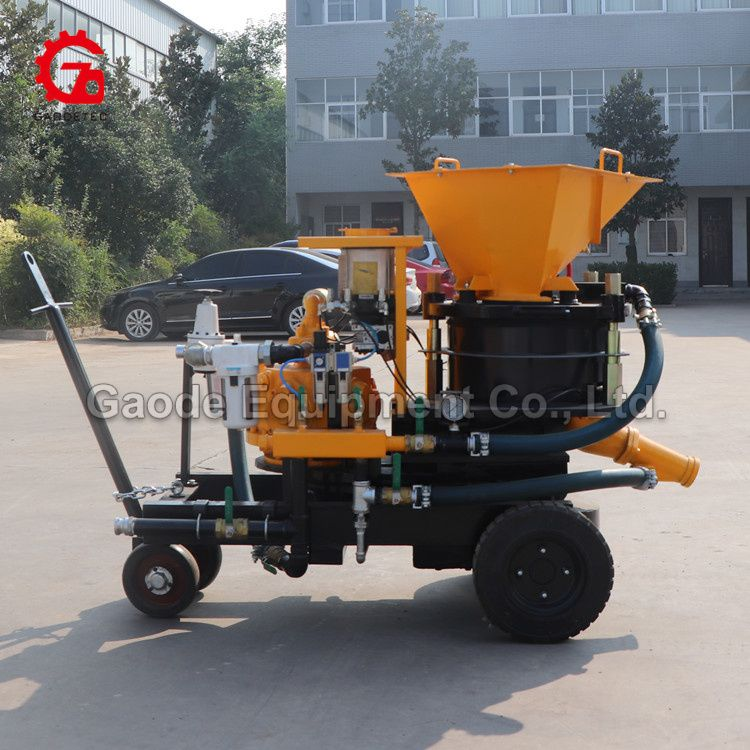

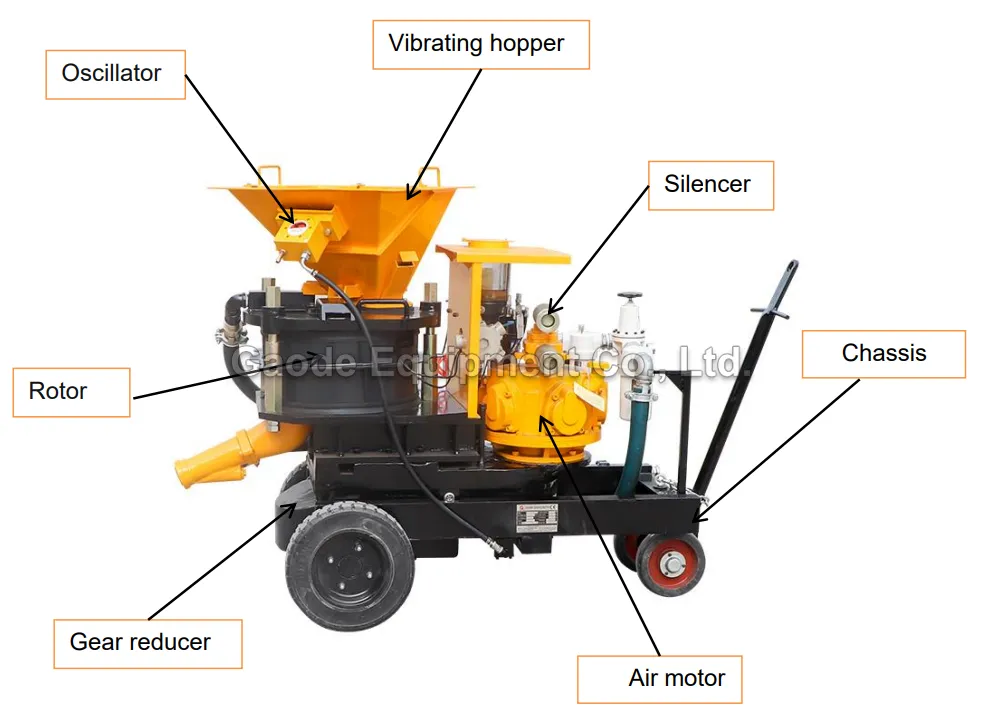

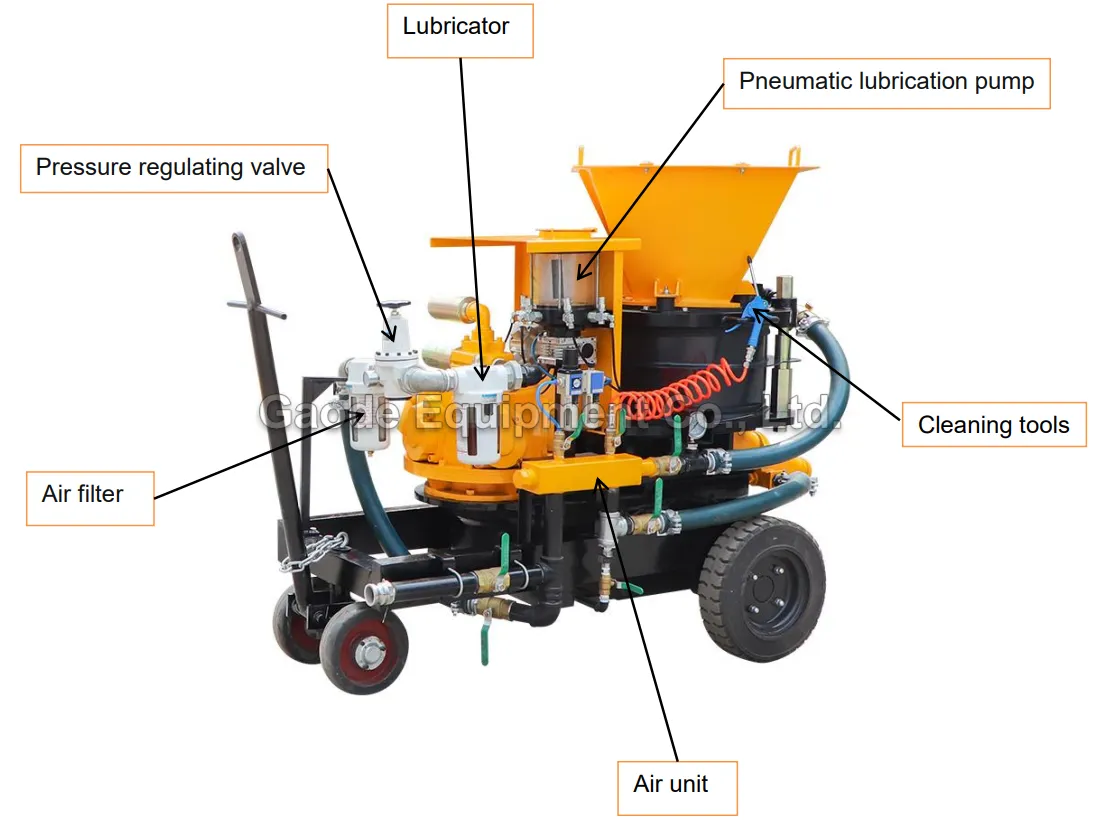

Image Display
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
