XCMG Officical Concrete Spraying Truck HPC30V Shotcrete Machine Price for Sale
Summary
- Certification: ISO9001
- Dimension(L*W*H):9360×2500×3660MM
- Weight:18000KG
- Model Number:HPC30V
- Brand Name:XCMG
- Place of Origin:JiangSu,China
- Air Consumption:10-13m3/min
- Max. Conveying Distance:14.8M
Specifications
- Weight:18000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

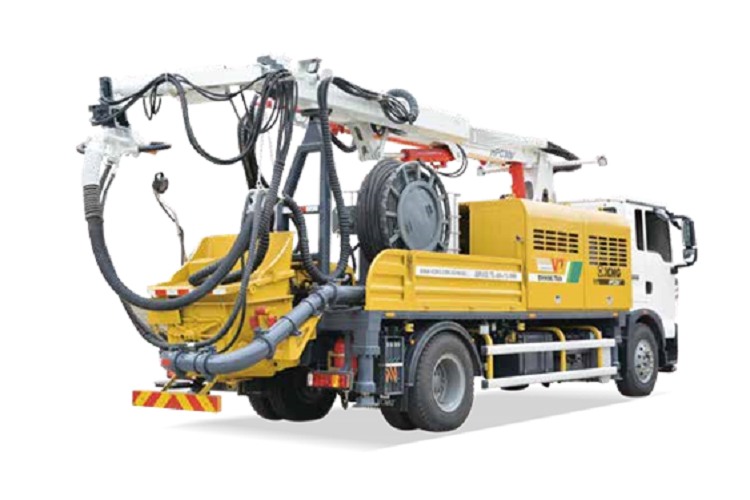

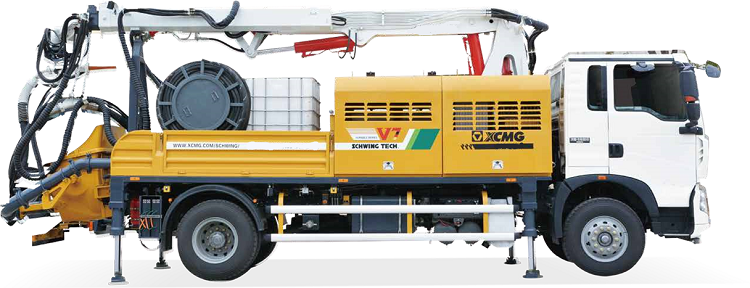

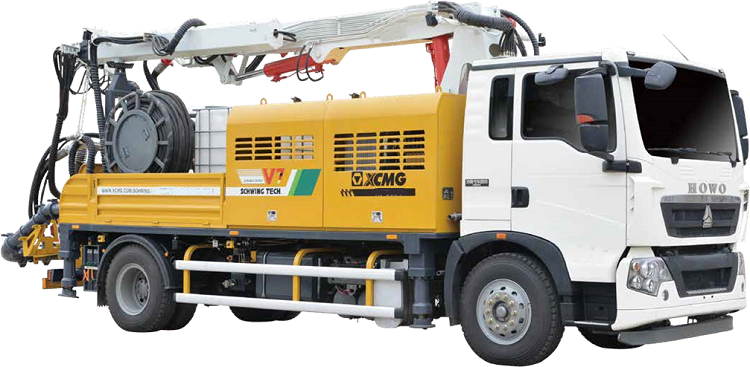

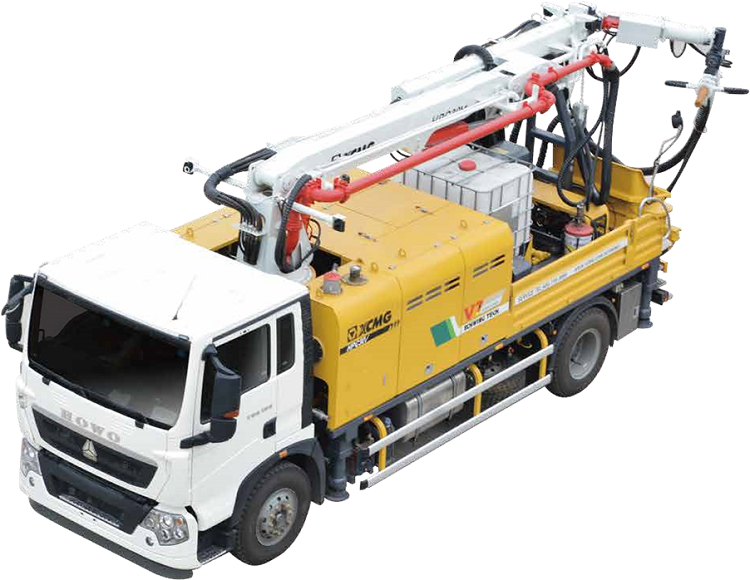

XCMG Officical concrete spraying Truck HPC30V shotcrete
machine.
1.More
Accurate Boom Control Technology
With
boom inching control technology and initiative shock absorption technology,
such motions as boom slewing, elevating, telescoping and spraying are steadier,
with slewing amplitude reduced by 60% , elevating amplitude reduced by 80% and positioning
more accurate.
2.More
Practical Double-power Technology
Besides the main power by motor, chassis power can realize boom and stabilizer telescoping without access to electricity and condensing agent feeding into IBC-tank; the simultaneous operation of pumping system and high-pressure water pump ensures more convenient and efficient cleaning of overall machine.
3.More
Reliable Fully-hydraulic Reversing Technology
SCHWING Germany’s hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.
4.Ultra-low
Pressure Loss Hydraulic System Technology
Ultra-low pressure loss hydraulic system, coordinated with efficient rock valve pumping system realizes lower energy consumption and heat emission in operation, improving the energy efficiency of overall machine.
uMoreConcrete Machinery
|
CATEGORY |
ITEM |
UNIT |
HPC30V |
|
|
Traveling system |
Outline dimension |
mm |
9360×2500×3660 |
|
|
Overall weight |
kg |
18000 |
||
|
Rated power of engine |
kW/rpm |
/2400 |
||
|
Emission
standard |
—— |
China V |
||
|
Gradeability |
％ |
30 |
||
|
Turning radius |
m |
9.5 |
||
|
Max. speed/hour |
km/h |
90 |
||
|
Spraying system |
Max. spraying height |
m |
18 |
|
|
Max. spraying width |
m |
29.6 |
||
|
Max. front spraying distance |
m |
14.8 |
||
|
Min. permissible tunnel height for spraying operation |
m |
4 |
||
|
Max. reach depth |
m |
7 |
||
|
Axial rotation of nozzle seat |
° |
360 |
||
|
Axial swing of nozzle seat |
° |
240 |
||
|
Nozzle deflection angle X Turning angle of brush |
° |
8×360 |
||
|
Pumping system |
Max. theoretical spraying capacity |
m3/h |
30 |
|
|
Max. pumping pressure |
MPa |
8 |
||
|
Concrete cylinder diameter/stroke |
mm |
180/1000 |
||
|
Hopper capacity |
L |
500 |
||
|
Max. permissible aggregate diameter (pumping/spraying) |
mm |
22/16 |
||
|
Transfer tube |
—— |
Rock valve |
||
|
Air compressor |
Air compressor |
Optional
configuration |
||
|
Wind supply capacity |
m3/min |
10～13 |
||
|
Wind pressure |
MPa |
0.8 |
||
