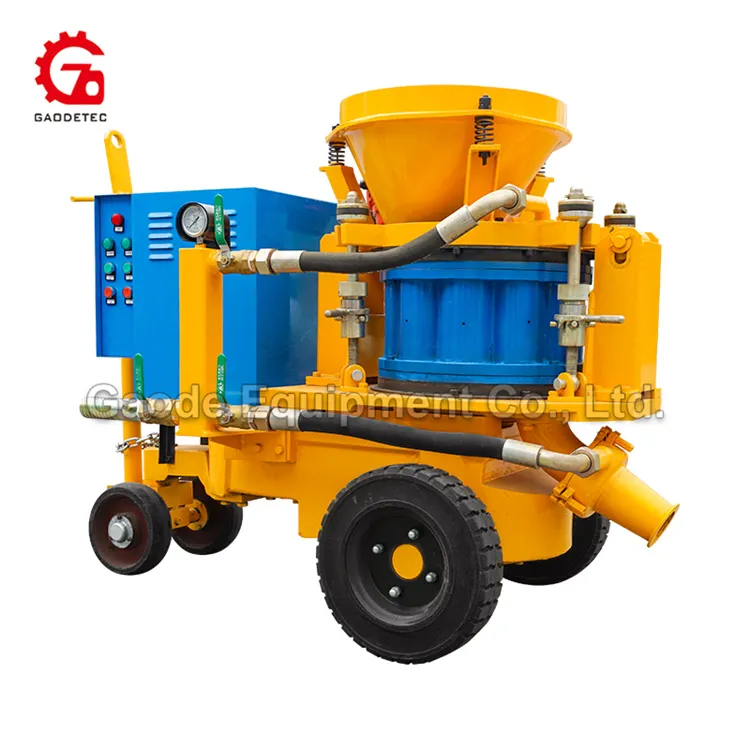

Gaodetec GZ-9E electric large-sized dry shotcrete machine
GZ-9E
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GZ-9E
CE
1.65×0.9×1.25m
900kg
7.5kW
220V,380V, 440V,660V 50Hz/60Hz
GZ-9E
Gaodetec
China
10~12m3/min
64mm
20mm
200m
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):1.65×0.9×1.25m
- Weight:900kg
- Power(W):7.5kW
- Voltage:220V,380V, 440V,660V 50Hz/60Hz
- Model Number:GZ-9E
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:10~12m3/min
- Hose Inner Diameter:64mm
- Max Aggregate Size:20mm
- Max. Conveying Distance:200m
Specifications
- Weight:900.000kg
- Condition:New
- Moving Type:Wheel
- output:9m3/h
- Max. Horizontal Conveying Distance:200m
- Suitable Mix Ratio(Cement/Sand):≤1:4~5
- Max. Aggregate Size:20mm
- Conveying Hose Inner Diameter:64 mm
- Conveying Pressure:0.2-0.4MPa
- Air Consumption:10~12m3/min
- Material Charging Height:1.1m
- Electric Motor:7.5kW, Y132M-4, IP55
- Rotor Speed:11r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description

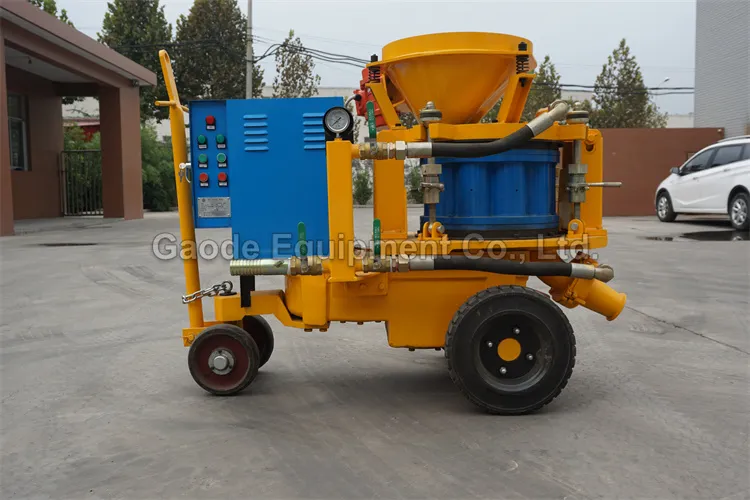

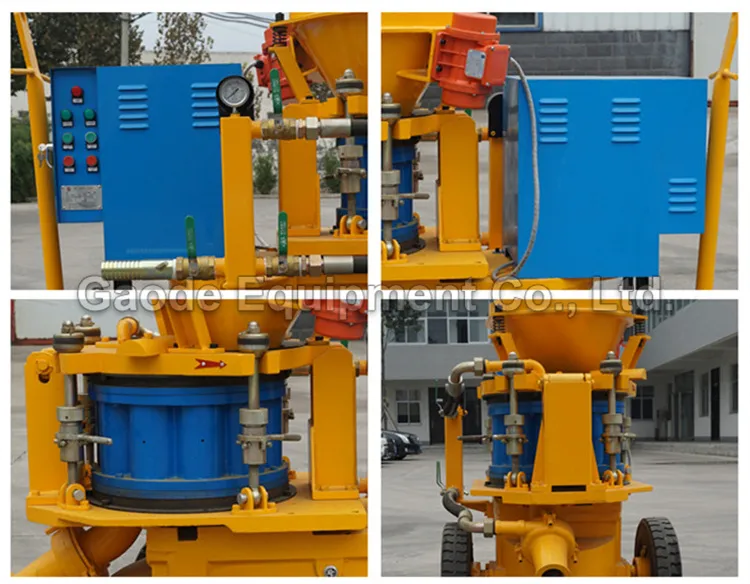

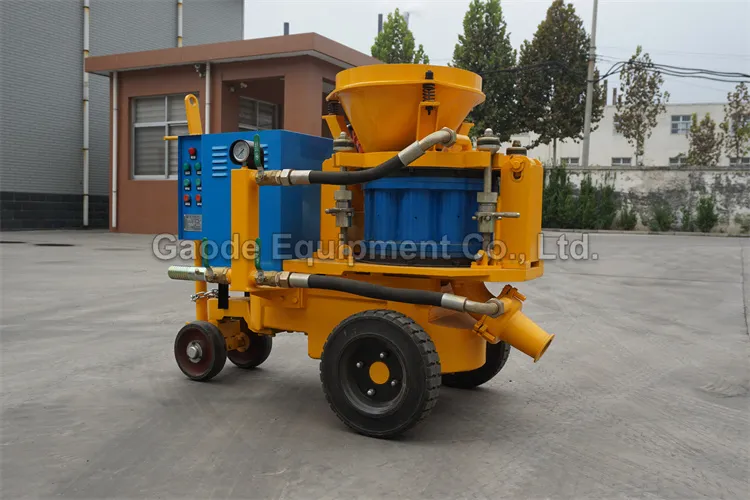

GZ-9E is electric large-sized shotcrete machine for the spraying process.
GZ-9E shotcrete machine can be used for large-section tunnel building, mine, etc.
GZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.
_1753439310968.jpg.webp)
_1753439306207.jpg.webp)

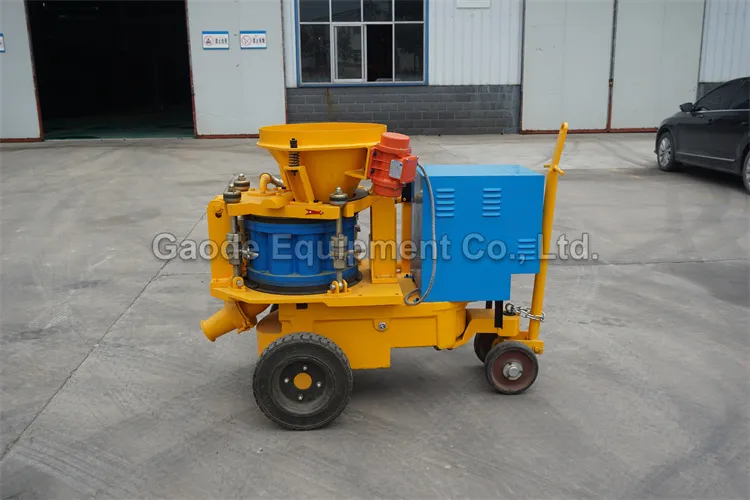

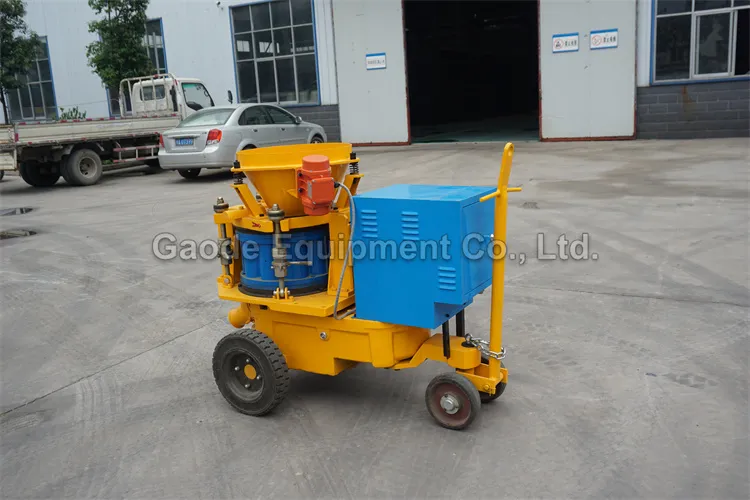

GZ-9E shotcrete gunite machine application
1. Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
_1753439310062.jpg.webp)
_1753439310507.jpg.webp)
Technical Parameter
Image Display
.jpg.webp)
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
