- Product PDF
- Weight:12800 kg

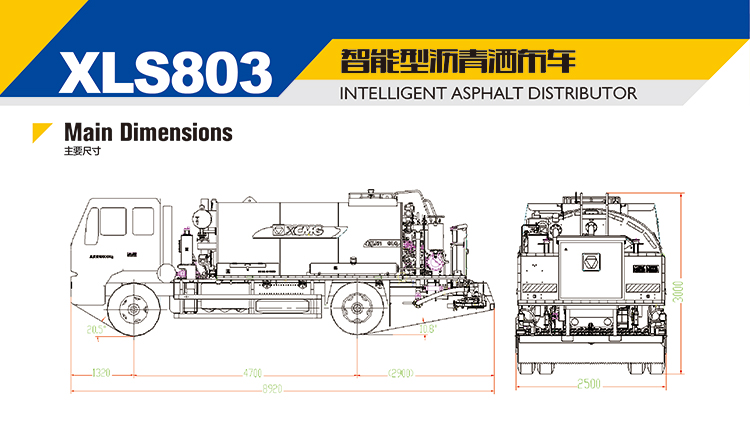

- Dimension(L*W*H):8920×2500×3000 mm
- Model Number:XLS803
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Moving Type:Wheel
- Max. spraying width:6m
- Asphalt spraying amount:0.2 -3.0 Kg/㎡
- Overall dimension:8920×2500×3000 mm
- Driving mode:4×2
- Chassis model:SINOTRUCK STEYR ZZ1181M521GE1 (China Tier V）

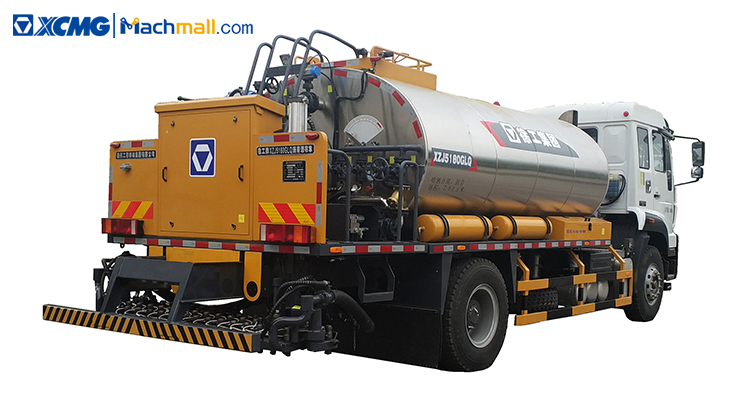

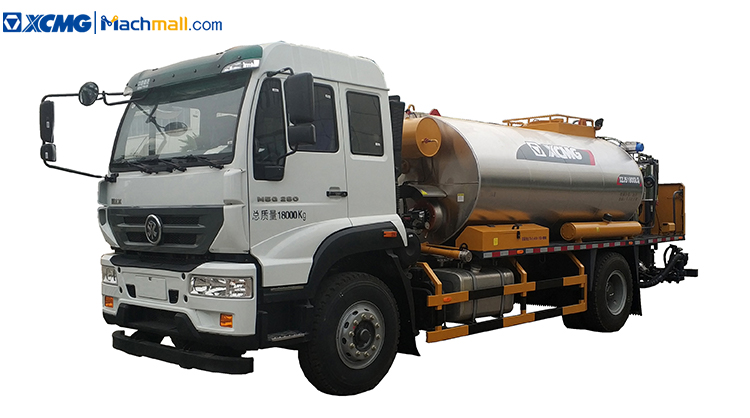

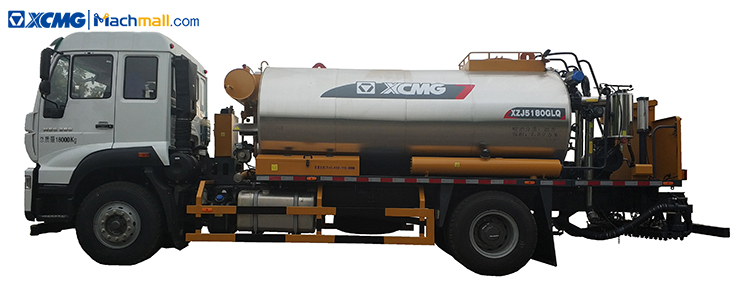

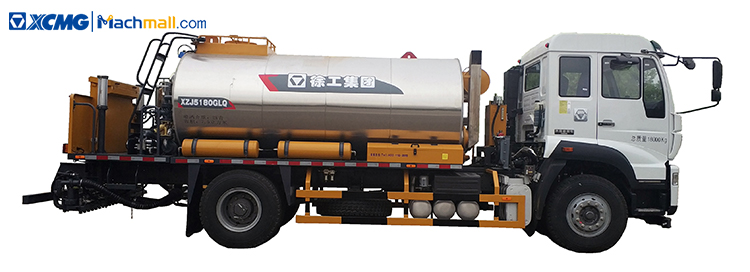

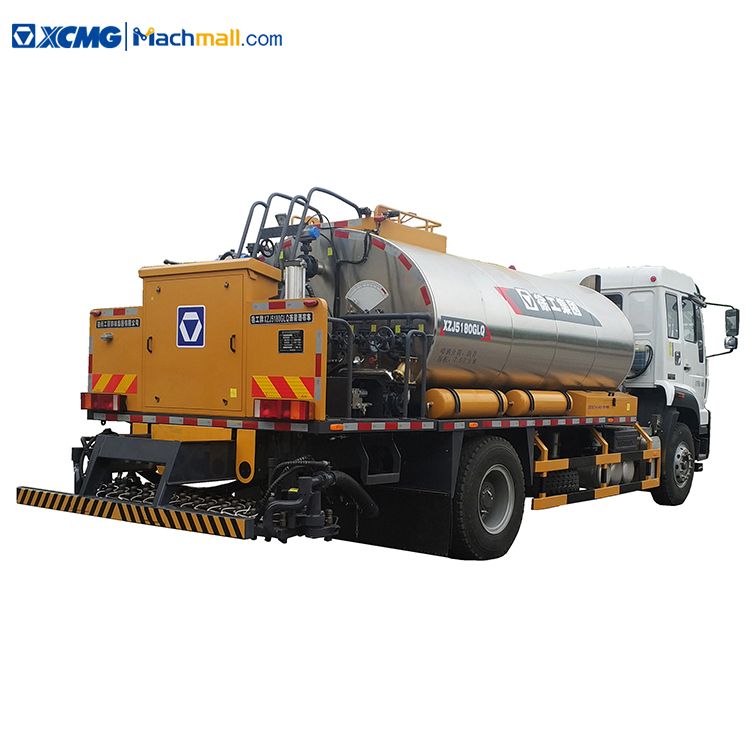

XCMG 8cbm asphalt distributor machine XLS803 with SINOTRUCK chassis.
XZJ5180GLQ(XLS803) intelligent asphalt distributor is an automation product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, modified asphalt. XCMG 8cbm asphalt distributor machine XLS803 with SINOTRUCK chassis controls the whole process of asphalt spraying through the controller, thus the asphalt spraying amount is not affected by the change of speed and the high-precision spraying is achieved.
It is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.
1.Starting strong spraying control technology realizes zero-distance starting spraying and uniform and reliable spraying of asphalt.
2.One-to-one control mode for the nozzle is adopted, the spraying width can be adjusted.
3.Touch display in driver’s cab records asphalt spraying area, distance and total amount.
4.Automatic and manual operation systems, convenient and reliable.
5.Intelligent control system, just set distributing amount of asphalt spraying per square meter, automatic spraying can be achieved.
