Summary
- Weight:7300kg
- Dimension(L*W*H):7010×2100×2515mm
- Power(W):115kw
- Model Number:XLS403
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- weight:7300.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

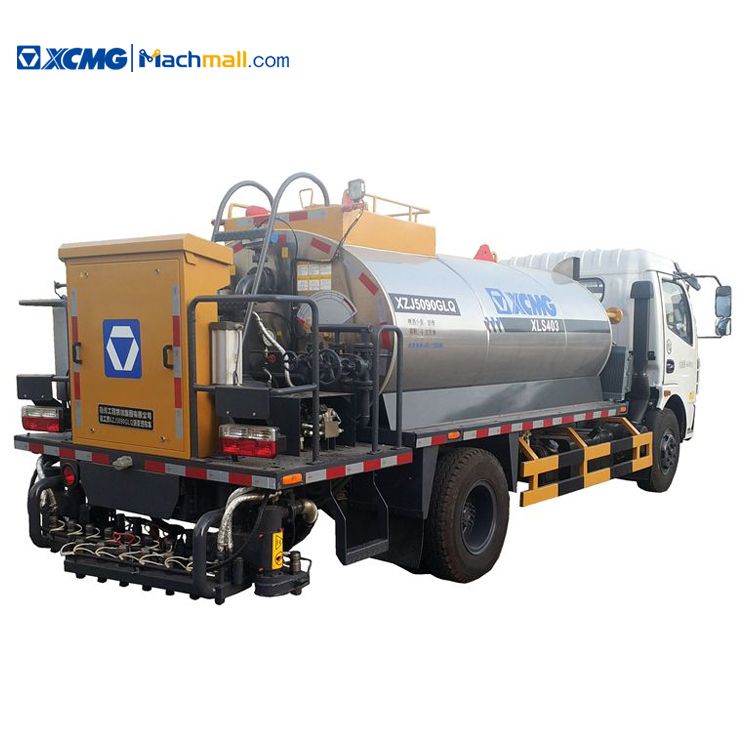

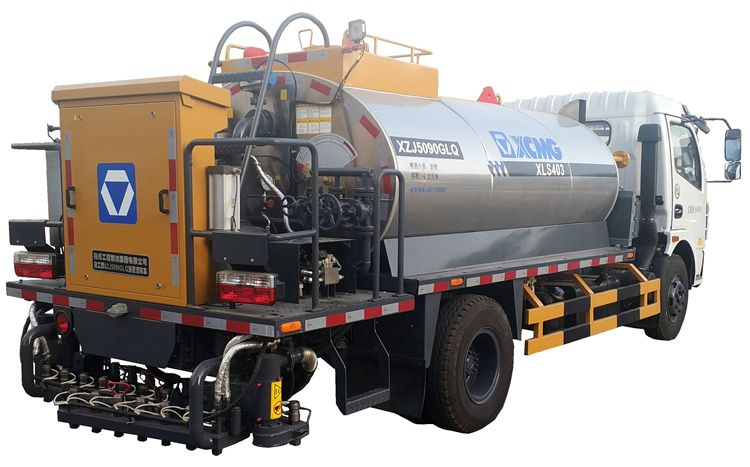

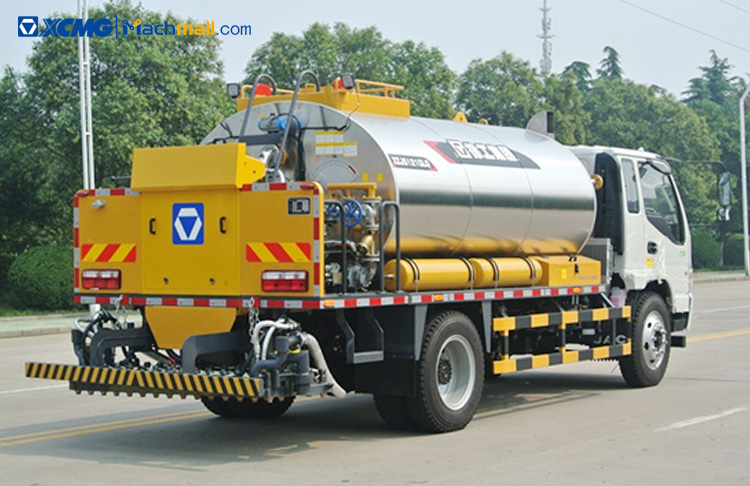

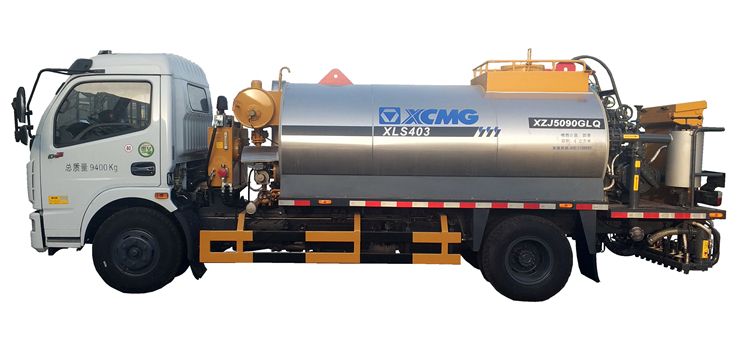

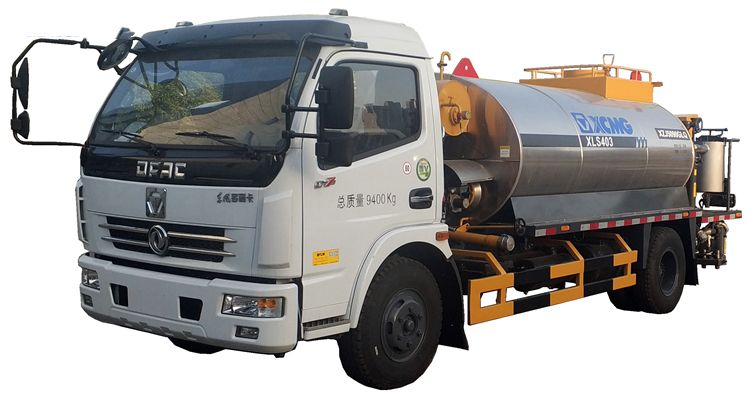

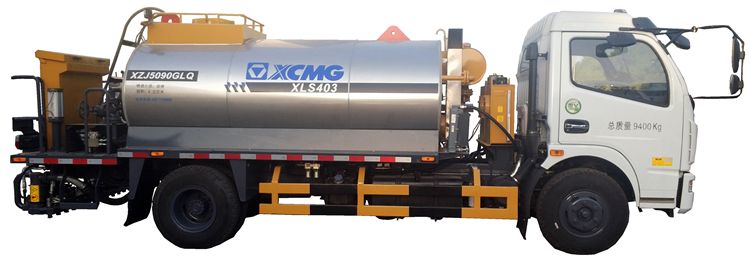

XCMG manufacturer 4000l small asphalt oil distributor truck XLS403.
XCMG manufacturer 4000l small asphalt oil distributor truck XLS403 intelligent asphalt distributor is an automation product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, modified asphalt.
XLS403 distributor truck is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.
XCMG asphalt distributor truck XLS403 controls the whole process of asphalt spraying through the controller, thus the asphalt spraying amount is not affected by the change of speed and the high-precision spraying is achieved.
Distributor truck XLS403 main performance and characteristics:
*Starting strong spraying control technology realizes zero-distance starting spraying and uniform and reliable spraying of asphalt.
*Spraying width can be adjusted freely, one-control-three nozzles.
*Touch display in driver’s cab records asphalt spraying area, distance and total amount.
*Automatic and manual operation systems, convenient and reliable.
*Intelligent control system, automatic spraying can be achieved.
|

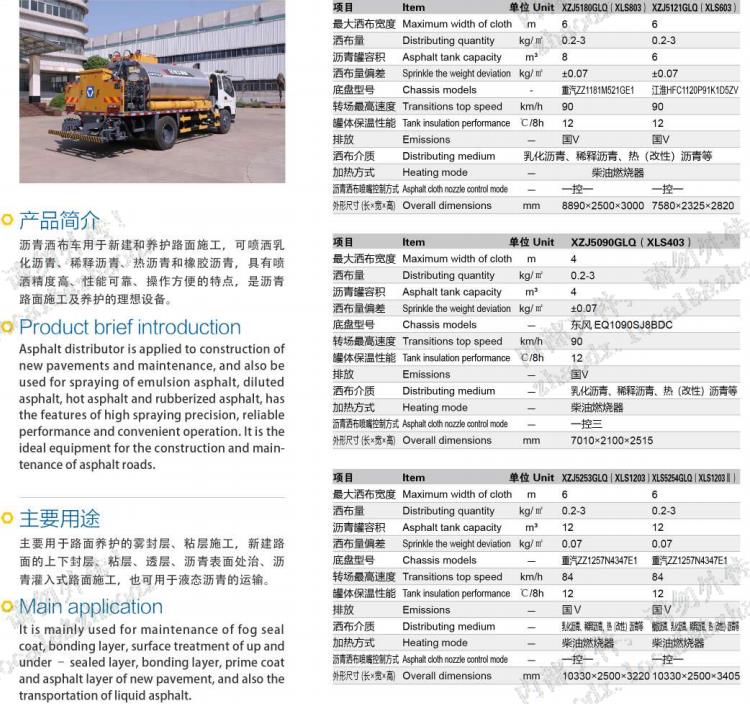

Item |
Unit |
Parameter |
|
Product model |
- |
XZJ5090GLQ (XLS403) |
|
Working performance parameter |
||
|
Max. spraying width |
m |
4 |
|
Asphalt spraying amount |
kg/m2 |
0.2-3.0 |
|
Capacity of asphalt tank |
m3 |
4 |
|
Operating speed |
km/h |
1.5 -15 |
|
Chassis performance parameter |
||
|
Type |
- |
Dongfeng Duolika EQ1090SJ8BDC |
|
Drving model |
- |
4*2 |
|
Engine type |
- |
CY4SK251 |
|
Engine power |
kW/(r/min) |
115 / 2800 |
|
Max. travelling speed |
km/h |
103 |
|
Overall dimension parameter |
||
|
Overall dimension |
mm |
7010*2100*2515 |
|
Mass parameters of whole machine |
||
|
Fuel tank |
L |
120 |
|
Min. ground clearance |
mm |
210 |
|
Curb weight |
kg |
7300 |
|
Total mass |
kg |
9400 |
