Summary
Specifications
- Weight:7600.000kg
- Model Number:WZ30-25
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
- Dimension(L*H*W):8000*2310*3424 mm
- Rated Load:2500kg
- Rated power:73.5 (Turbocharged)/65
- Bucket Capacity:1m³
- Wheel base:2600mm

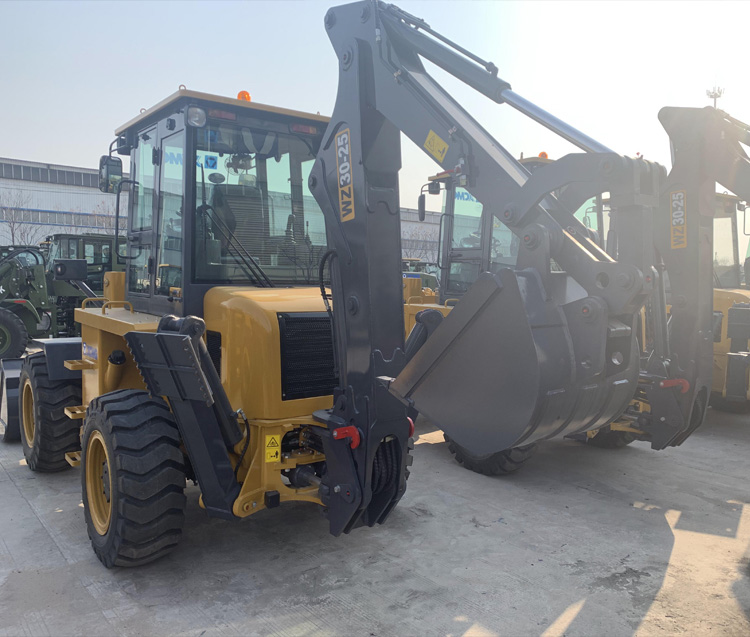

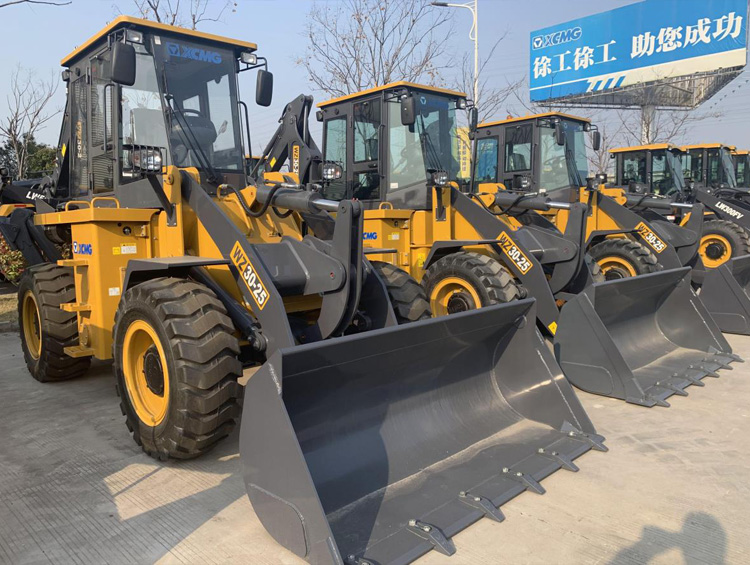

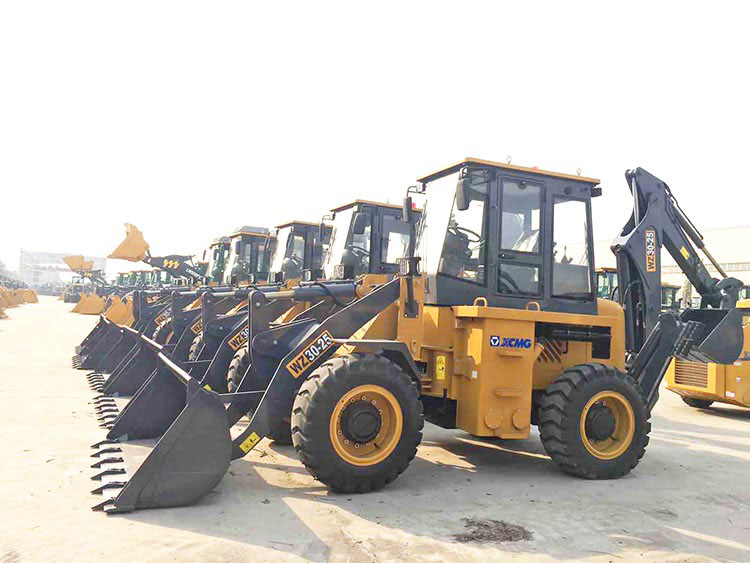

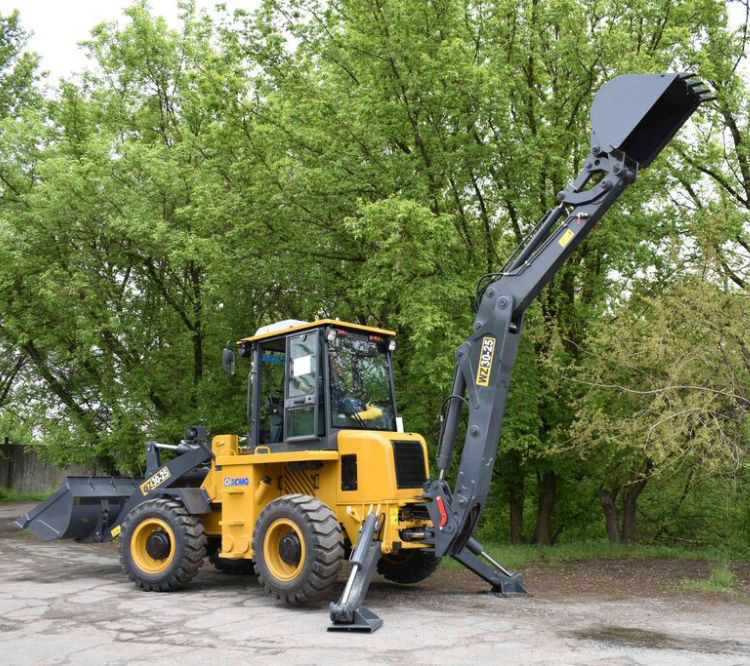

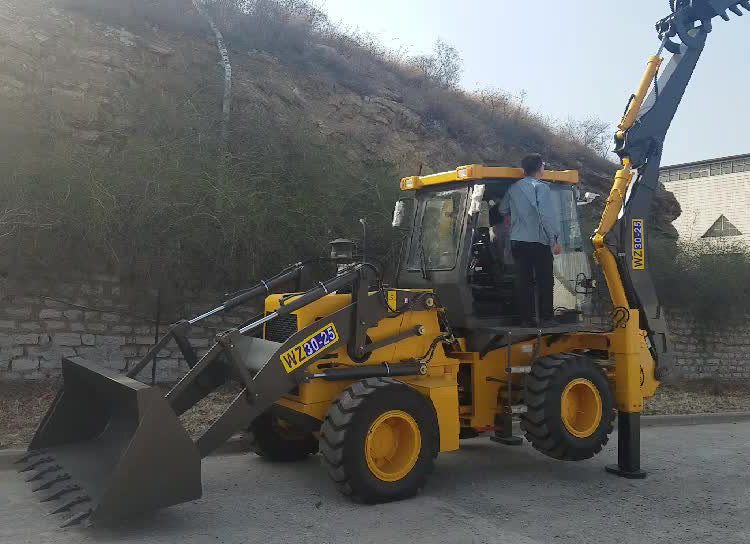

XCMG Offical 2.5t Mini Backhoe Loaders WZ30-25
XCMG backhoe loaders WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine. It is the new generation model of the development based on the same kind product technique in domestic and international. Having adopted four wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.
It is extensively used in the road maintenance, farm and developments, getting clay for making bricks, piping builds, the cable builds, park virescence and the excavating of the road opens to dig etc.
|
Description |
Unit |
Parameter value |
|
Bucket capacity(heaped) |
m³ |
1 |
|
Digger capacity |
m³ |
0.3 |
|
Dumping clearance |
mm |
2650 |
|
Dumping reach |
mm |
930 |
|
Max.steering angle |
° |
±35 |
|
Max.steering angle of dig working device |
° |
±85 |
|
Traceing speed I / II / III / IV |
km/h |
0-6.2 / 0-12 / 0-20 / 0-30 |
|
Back I / II speed |
km/h |
0-8 / 0-28.5 |
|
Diesel Model |
|
YC4A110-T310/YC41390-T20 |
|
Modality |
|
4-stroke water-cooled inline type/ 4-stroke water-cooled inline type |
|
Rated power |
kW |
73.5 (Turbocharged)/65 |
|
Rated speed |
r/min |
2200 |
|
Wheel base |
mm |
2600 |
|
Tread |
mm |
1700 |
|
Tires |
|
16/70-24 |
|
Max.digging depth |
mm |
4400 |
|
Max.digging radium |
mm |
5471 |
|
Overall dimensions(L×W×H) |
mm |
8000×2310×3424 |
|
Operating weight |
kg |
9500 |
