Shuoli brand new concrete mixer and pump JBTS concrete mixing pump price

$20000.00-$35000.00 1 / EA (Min. Order)
Model: JBTS20
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Shuoli brand new concrete mixer and pump JBTS concrete mixing pump price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Dimension(L*W*H):5100×2100×2700mm
  • Weight:5000kg
  • Power(W):22/30kw
  • Model Number:JBTS20
  • Brand Name:Shuo Li
  • Place of Origin:Jiangsu,China

Specifications

  • Weight:5000.000kg
  • Condition:New
  • Moving Type:Other
  • Maximum theoretical delivery:20m³/h
  • Loading volume:730L
  • Loading height:1050mm

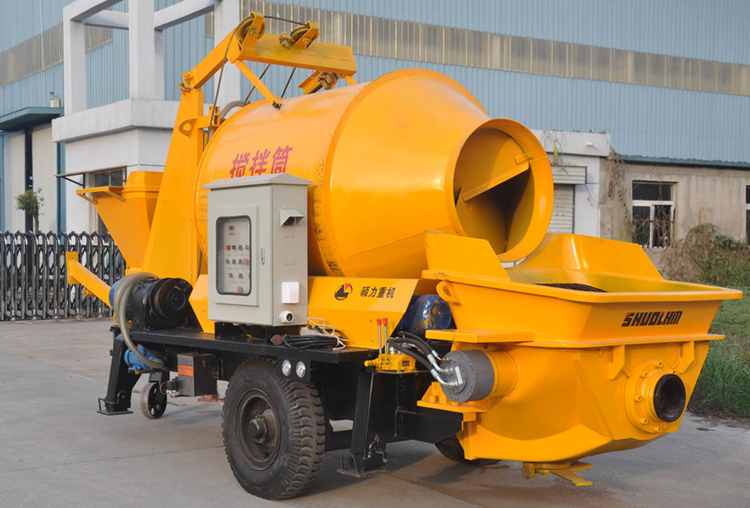

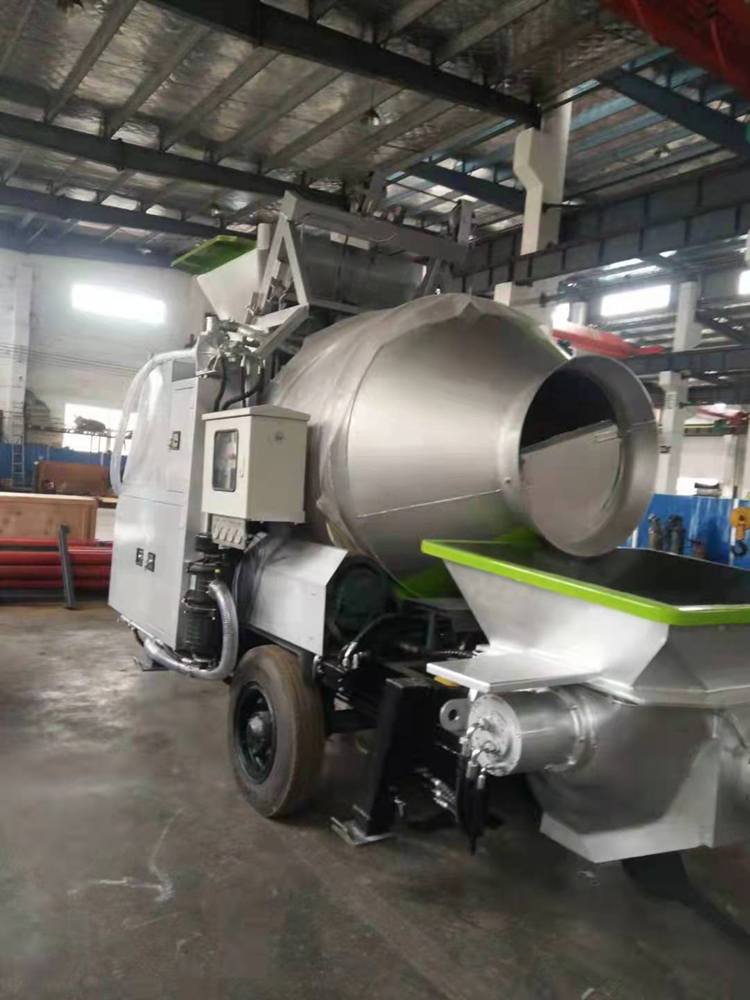

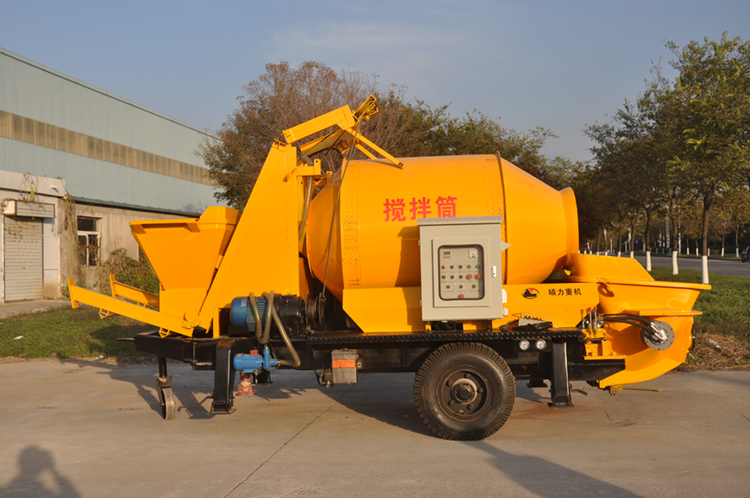

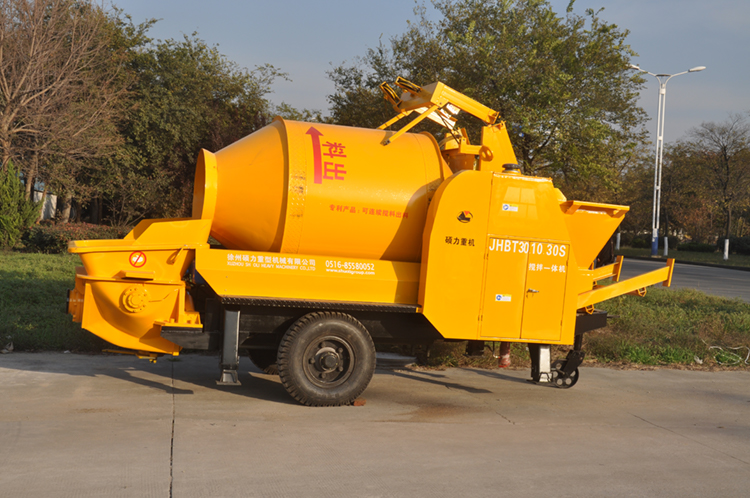

Shuoli brand new concrete mixer and pump JBTS concrete mixing pump price



Shuoli brand new concrete mixer and pump JBTS concrete mixing pump.



Characteristics:



1. It can pump up to 70 meters high and 300 meters flat.



2. With walking wheels, the guide wheels can steer, move and position 360°, which is convenient and flexible.



3. The outlet pressure is high, which can meet the transportation requirements of high-rise buildings and long-distance construction.



4. The remote control handle is more humane.



5. Mixing and pumping are combined into one, making pipeline transportation safer.



6. Reduce labor, higher efficiency and lower cost.



7. Electric cement boom reduces labor intensity.



8. Convenient and simple batching machine, faster feeding speed and higher efficiency.



9. New-style outriggers shake hands, convenient and simple.

Shuoli brand new concrete mixer and pump JBTS concrete mixing pump price

Project

Unit

JBTS20

Maximum theoretical delivery

m³/h

20

Maximum theoretical stirring volume

m³/h

15

Maximum theoretical delivery pressure

MPa

10

Distribution valve form

/

S valve

Main power

Kw

22/30

Hoisting motor power

Kw

4.5

Stirring motor power

Kw

3*2

Water pump motor power

Kw

0.75

Electricity form

/

Motor

Conveying cylinder bore

mm

Φ180*800

Loading volume

L

730

Loading height

mm

1050

Fuel tank volume

L

115

Rated voltage

V

380

Allowable maximum particle diameter

mm

Pebble: 40

Crushed stone: 30

Inner diameter of conveying pipe

mm

Φ125/φ80

Dimensions

mm

5100×2100×2700

Host weight

kg

5000











Shuoli brand new concrete mixer and pump JBTS concrete mixing pump priceShuoli brand new concrete mixer and pump JBTS concrete mixing pump priceShuoli brand new concrete mixer and pump JBTS concrete mixing pump priceShuoli brand new concrete mixer and pump JBTS concrete mixing pump priceShuoli brand new concrete mixer and pump JBTS concrete mixing pump price

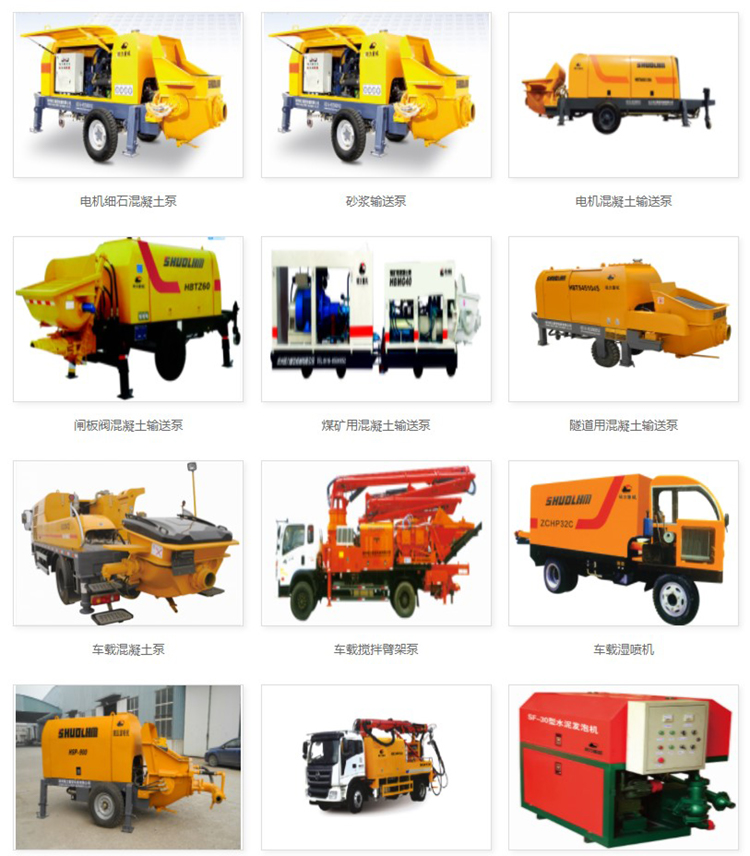

More Concrete Mixer and Pump
