China shuoli 40m3/h motor trailer concrete pump for fine stone XHBTS30 price
Summary
- Dimension(L*W*H):4600*1660*1720mm
- Weight:3000kg
- Power(W):37/45kw
- Model Number:XHBTS30
- Brand Name:Shuo Li
- Place of Origin:Jiangsu,China
Specifications
- Weight:3000.000kg
- Condition:New
- Moving Type:Wheel
- Hopper capacity:0.34m3
- Hopper height:1000mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

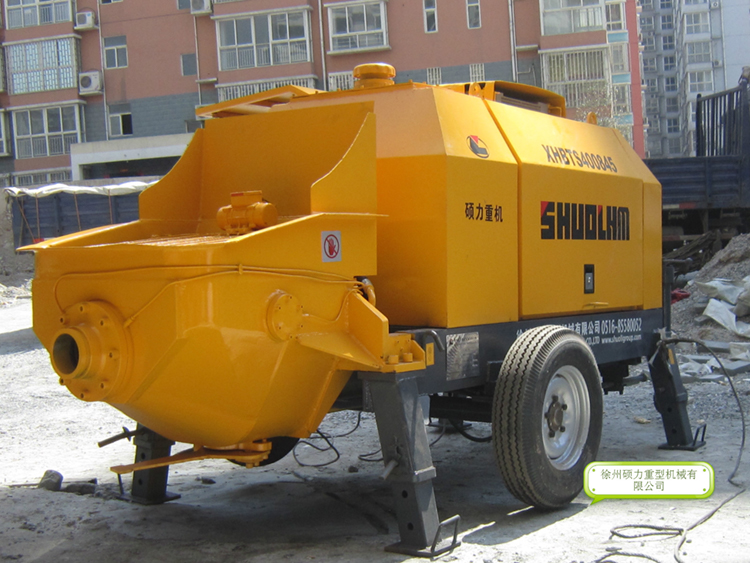

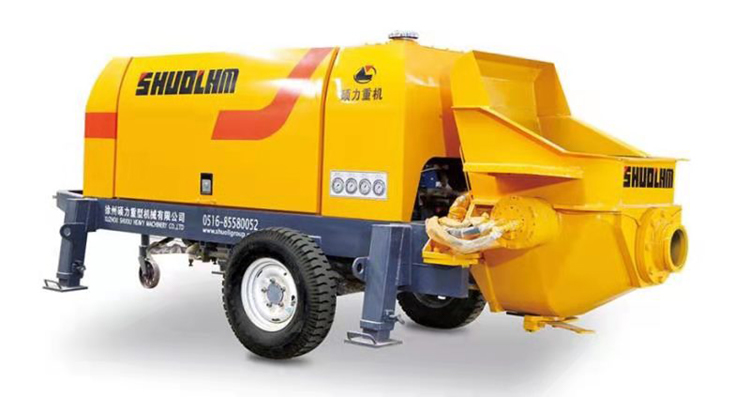

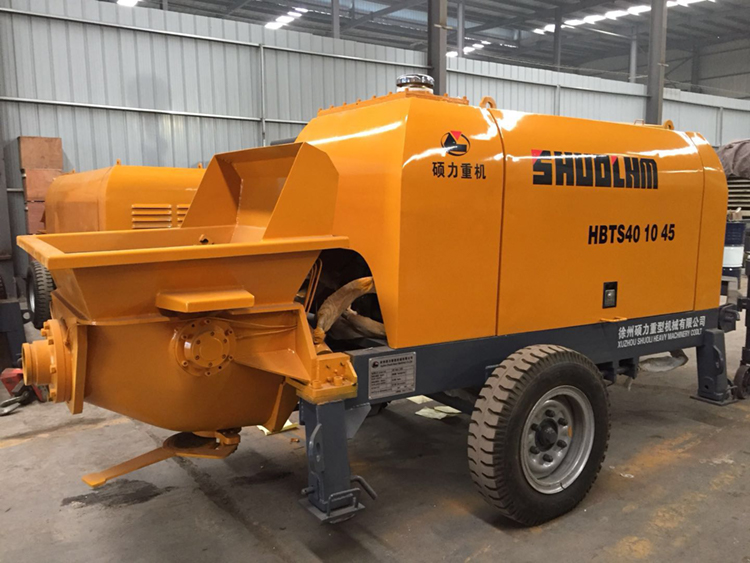

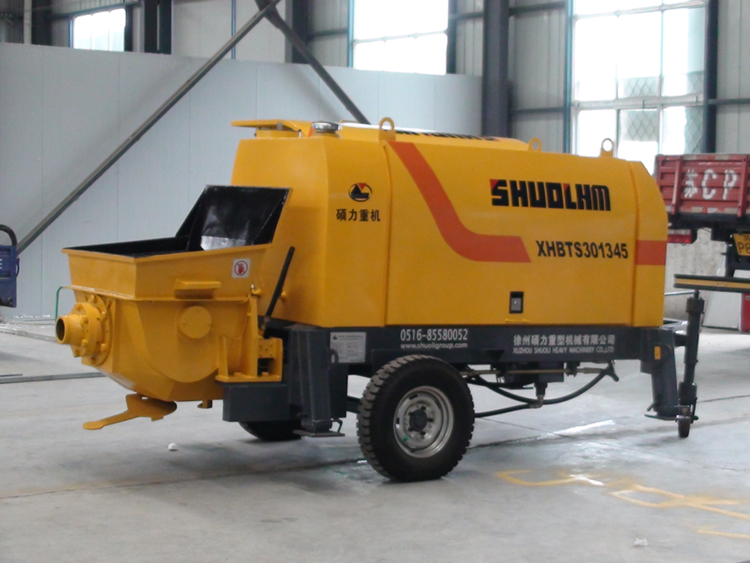

China shuoli 40m3/h motor trailer concrete pump for fine stone XHBTS30.
China shuoli 40m3/h motor trailer concrete pump for fine stone XHBTS30 is a mortar conveying equipment specially developed for the characteristics of underfloor heating construction. China shuoli 40m3/h motor trailer concrete pump for fine stone XHBTS30 is suitable for large-area and high-efficiency construction of fine stone concrete filling layers or mortar filling layers in underfloor heating projects.
China shuoli 40m3/h motor trailer concrete pump for fine stone XHBTS30 is also suitable for the transportation of fine stone concrete in various engineering constructions, the transportation of refractory and thermal insulation materials; the transportation of green soil in the construction of ecological environment, and the pressure grouting of various foundation piles.
China shuoli 40m3/h motor trailer concrete pump for fine stone XHBTS30 uses a Φ80 conveying pipe, which can convey concrete below 3cm, which makes the pump more versatile.
Product Highlights：
1.high performance
*The outlet pressure is high, which can meet the delivery requirements of high-rise buildings and long-distance construction.
*Three-pump and three-circuit hydraulic system, with low impact and high reliability.
*It has a reverse pump function, which is helpful to eliminate pipe blockage in time, and can be shut down for a short time.
2.Long life
*Adopt advanced S-pipe distribution valve, which can automatically compensate the wear gap and has good sealing performance.
*Using wear-resistant alloy glasses plate and cutting ring, long service life.
*The long-stroke material cylinder extends the service life of the material cylinder and piston.
|
Parameter |
Unit |
HBTS80D-16-145R |
|
Max theory output |
m3/h |
37 |
|
Max outlet pressure |
Mpa |
13 |
|
Maximum particle size of aggregate |
mm |
＜40 |
|
Power |
kw |
37/45 |
|
Power mode |
|
motor |
|
Hopper volume |
m3 |
0.34 |
|
Loading height |
mm |
1000 |
|
Hydraulic oil tank volume |
L |
300 |
|
Distribution valve form |
|
s valve |
|
Weight |
kg |
3000 |
|
Dimensions |
mm |
4600*1660*1720 |
