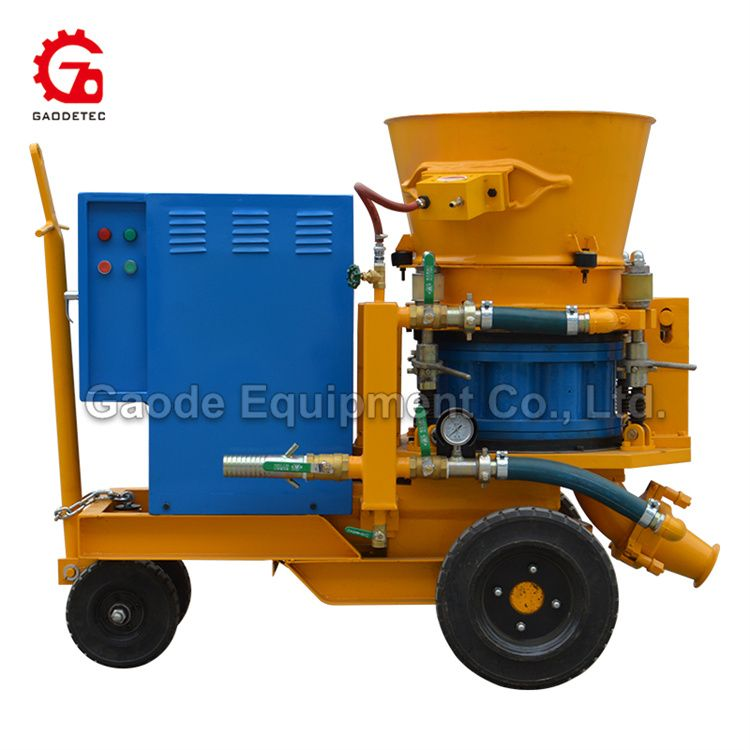

.jpg.webp_l.webp "Gaodetec GZ-7E 7m3/h electric dry mix concrete spraying machine")
.jpg.webp_t.webp)
.jpg.webp_t.webp)
_1755055821345.jpg.webp_t.webp)
.jpg.webp_t.webp)

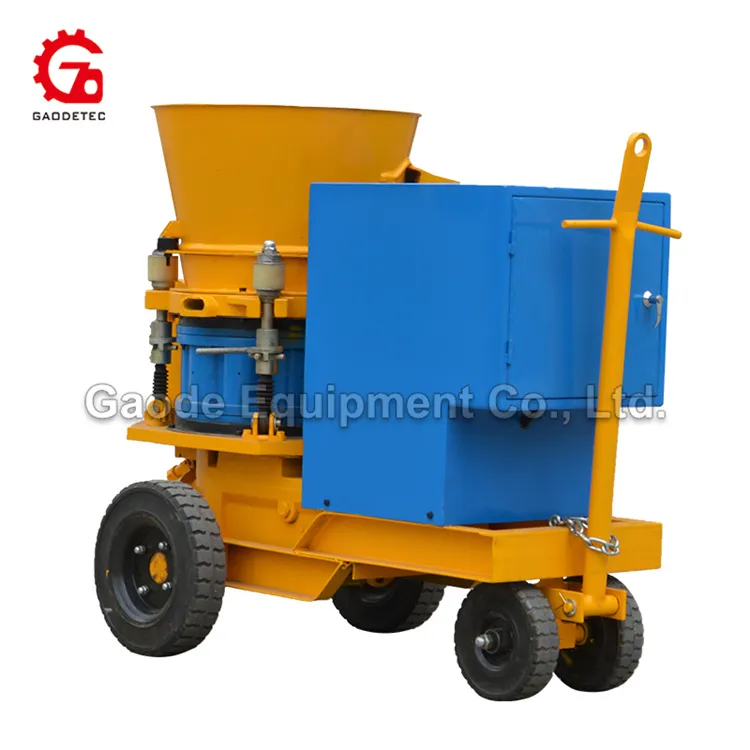

Gaodetec GZ-7E 7m3/h electric dry mix concrete spraying machine
.jpg.webp)
GZ-7E
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GZ-7E
CE
1.3×0.75×1.3m
900kg
7.5kW
220V,380V, 440V,660V 50Hz/60Hz
GZ-7E
Gaodetec
China
12~15m3/min
50mm
15mm
200m
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):1.3×0.75×1.3m
- Weight:900kg
- Power(W):7.5kW
- Voltage:220V,380V, 440V,660V 50Hz/60Hz
- Model Number:GZ-7E
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:12~15m3/min
- Hose Inner Diameter:50mm
- Max Aggregate Size:15mm
- Max. Conveying Distance:200m
Specifications
- Weight:900.000kg
- Condition:New
- Moving Type:Wheel
- output:7m3/h
- Max. Horizontal Conveying Distance:200m
- Suitable Mix Ratio(Cement/Sand):≤1:3~5
- Max. Aggregate Size:15mm
- Conveying Hose Inner Diameter:50mm
- Conveying Pressure:0.2-0.4MPa
- Air Consumption:12~15m3/min
- Material Charging Height:0.9m
- Electric Motor:7.5kW, IP55
- Rotor Speed:14r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description
GZ-7E is GAODETEC universal size shotcrete machine/equipment for the dry spraying process, adopting unique high hopper design, easy to feed materials. And this dry mix shotcrete machine has been used for slope stabilization,concrete repair, rock support, supporting excavation pits or embankments.
Optional part:
Electric motor, air motor and diesel engine for option.
Air motor and diesel engine don’t need any electric power supply, very suitable for remote working site.
GZ-7E shotcrete gunite machine application
1. Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
.jpg.webp)

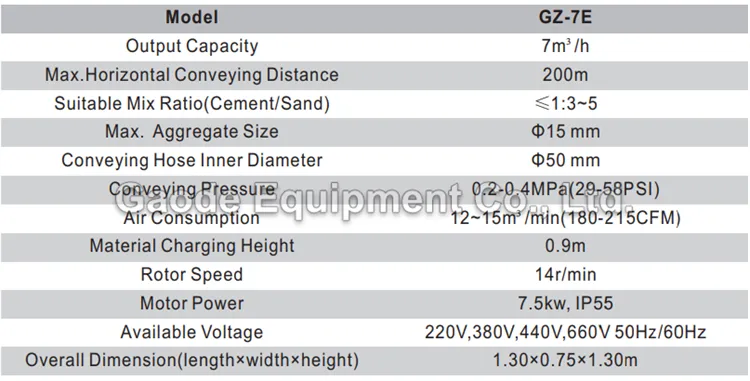

Technical Parameter

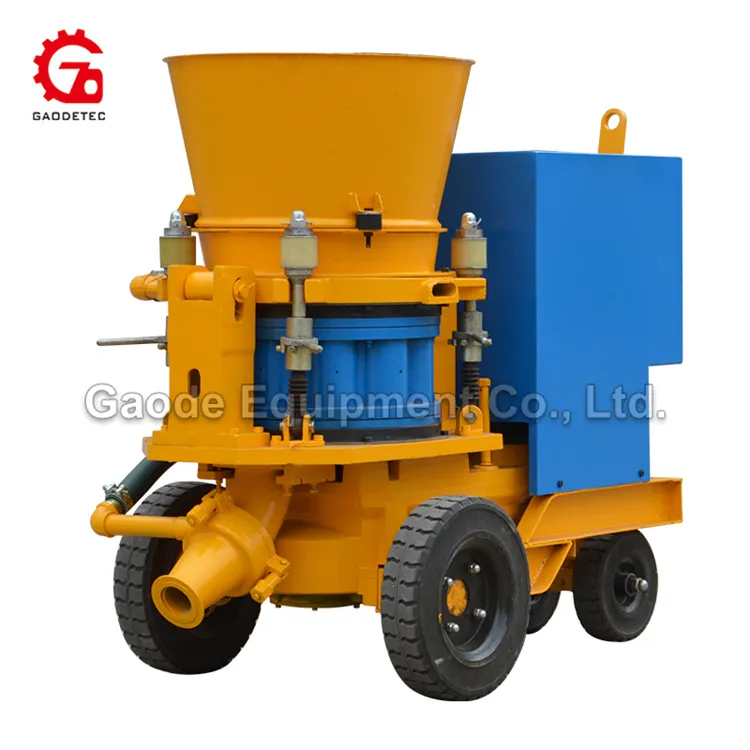

Image Display
_1755055821345.jpg.webp)
.jpg.webp)
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
