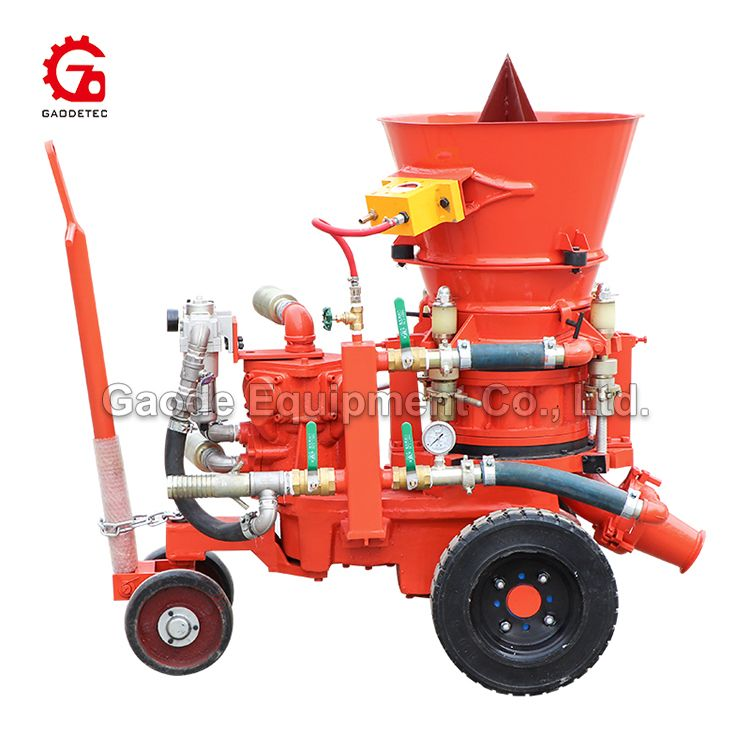

GAODETEC GZ-3AR High-Performance Refractory Gunning Machine With Dust Collection System

.jpg.webp)

GZ-3AR
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GZ-3AR
CE
1.13×0.54×1.1m
430kg
4kW
3 phase,380V,50Hz
GZ-3AR
Gaodetec
China
10-11m3/min
38mm
Φ10 mm
100m
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):1.13×0.54×1.1m
- Weight:430kg
- Power(W):4kW
- Voltage:3 phase,380V,50Hz
- Model Number:GZ-3AR
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:10-11m3/min
- Hose Inner Diameter:38mm
- Max Aggregate Size:Φ10 mm
- Max. Conveying Distance: 100m
Specifications
- Weight:430.000kg
- Condition:New
- Moving Type:Wheel
- Rated Output:1-3m3 /h (2-6 ton/h)
- Operating air Pressure:0.2-0.4MPa(29-58PSI)
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description
GZ-3AR refractory gunite machine is specifically designed for refractory dry-mix shotcrete gunning applications with air motor drive. With this GZ-3AR, you can get low dust, low bound and high performance spraying flow in nozzle.
 拷贝_1752653824920.jpg.webp)


Parameters

Application
1. Gunite Swimming Pool Construction;
2. Soil Retention and Retaining Walls;
3. Rocks aping;
4. Refractory Spraying;
5. Mine Support;
6. Tunnel Linings;
7. Concrete Repair;
8. Artificial Rocks and Caves;
9. Low-volume Refractory Spraying;
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery


Contact Supplier
1. What's the project you will use the machine do?
2. Mixer only or mixer with agitator?
3. How about the grouting liquid? Just water and cement? Any sand in?
4. How about the water cement ratio? More than 0.45: 1, am I right?
5. How about the mixer and agitator volume you want?
6. And how about the power: electric or diesel engine?
