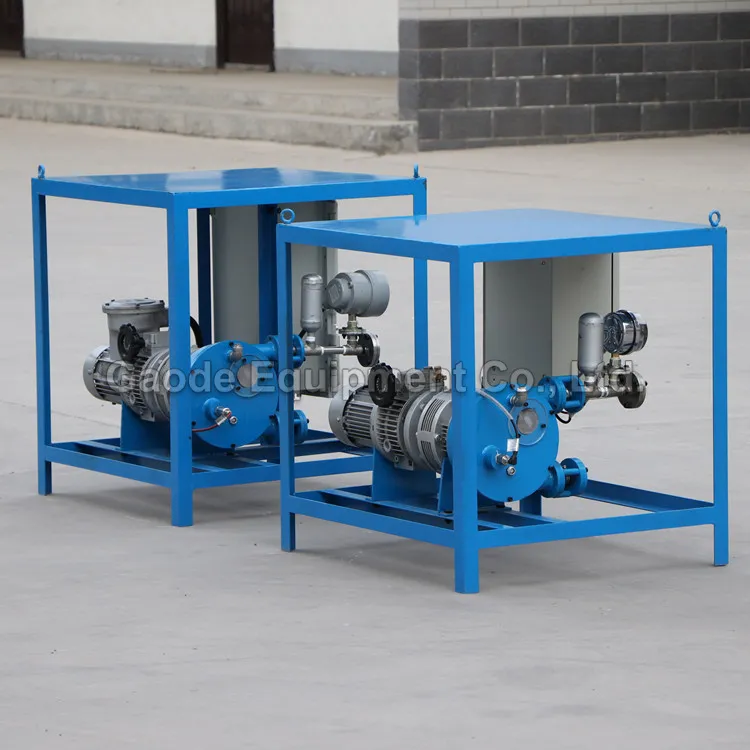

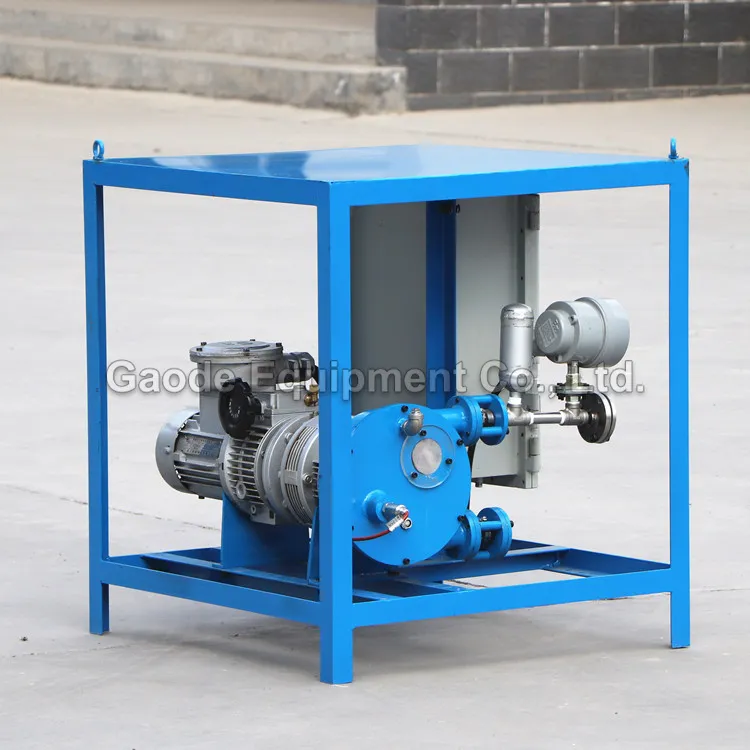

Gaodetec GH15-200 Dosing Hose Pump for sale
.jpg.webp)
Specifications
- Weight:162.000kg
- output:300L/h
- Pressure:15bar
- Squeeze hose ID:15mm
- Rotate Speed:60rpm
- Motor Power:0.75Kw (explosion proof motor)
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description
GH15-200 Dosing Hose Pump Description
GH15-200 series dosing hose pump consists mainly of pump house, pressure shoes, driving plate, motors, variable speed gear box, reinforced hose etc. The squeeze hose is U-shaped in the pump house, by pressure shoe squeeze hose formed pressure to achieve slurry transport; simple structure, easy to maintain, dry-run without damage, low speed, no noise. Flow rate can be adjusted by speed control handle, flow stability accuracy can up to ± 1%, specially suitable for viscous slurry dosing and pumping etc.
.jpg.webp)

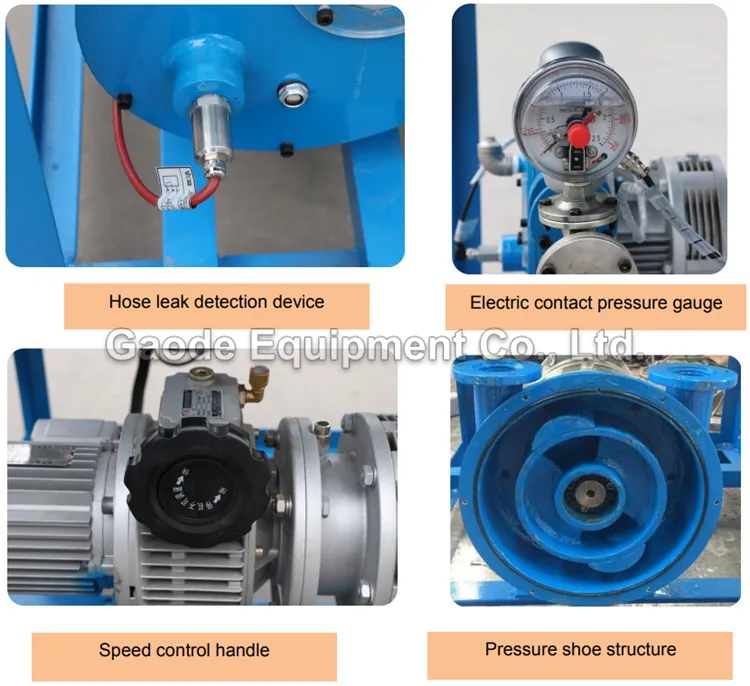

GH15-200 Dosing Hose Pump Features
1. Hose leak detection, quickly detect hose failure;
2. Electric contact pressure gauge, ensure that hose pump could stop working automatically once the pressure is too high.
3. Speed control handle, adjusted stepless;
4. Pressure shoe structure, like Bredel hose pump;

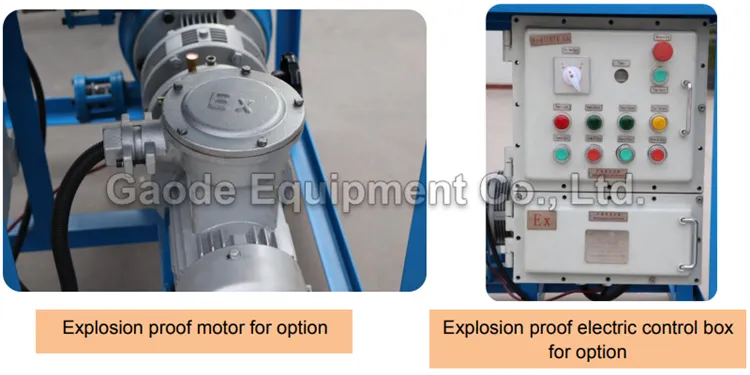

5. Explosion proof motor and electric control box for option.

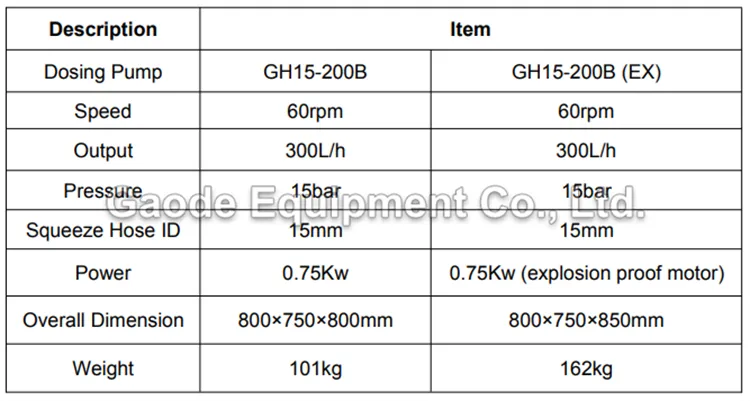

Technical Parameter
Image Display
.jpg.webp)
Contact Us
Contact us for catalog and price of hose peristaltic pump
