Summary
- Fork Width: 40mm
- Fork Length:1070mm
- Min Lifting Height:2080mm
- Max Lifting Height:4800mm
- Rated Loading Capacity:1800kg
- Power Source: AC Motor
- Model Number:EFL181
- Brand Name: EP
- Place of Origin:Zhejiang, China
Specifications
- weight:3030.000kg
- Condition:New
- Moving Type:Other
- Overall Dimensions:40*100*1070mm
- Certification: CE, ISO9001
- Service weight (include battery):3030kg
- Drive motor:6kw
- Battery voltage:48V150AH
- Turning radius:1920mm
- Tyre type:solid rubber
- Lift motor:7.5kW
- Battery weight:115kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

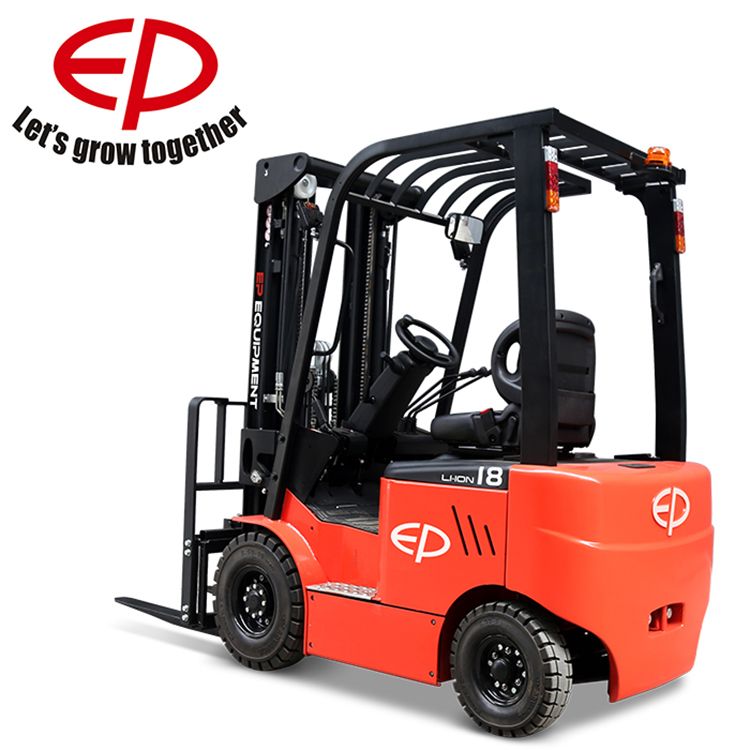

EP electric forklift with battery EFL181 1.8 ton capacity lift 4.8m.
EP electric forklift with battery EFL181 1.8 ton capacity lift 4.8m is a universal forklift for the daily operation at few hours per day at a great price point which has high efficiency with high performance.
2.Compact size.
3.Big legroom for better ergnomics.
4.EFL181 uses 10-year market tested components which is trustworthy and mature.
|
Distinguishing mark |
|
Unit |
value |
|
Manufacturer |
|
|
EP |
|
Model designation |
|
|
EFL181 |
|
rated capacity |
Q |
kg |
1800 |
|
Load center distance |
c |
mm |
500 |
|
Wheelbase |
y |
mm |
1260 |
|
Self weight (include battery) |
|
kg |
3030 |
|
Dimensions |
|
|
|
|
Height, mast lowered |
h1 |
mm |
1995 |
|
Free lift (load backrest) |
h2 |
mm |
130 |
|
Lift height |
h3 |
mm |
3000 |
|
Height, mast extended |
h4 |
mm |
4028 |
|
Height of overhead guard (cabin) |
h6 |
mm |
2080 |
|
Fork dimensions |
|
mm |
40X100X1070 |
|
Overall length |
l1 |
mm |
2935 |
|
Overall width |
b1/ b2 |
mm |
1080 |
|
Turning radius |
Wa |
mm |
1920 |
|
performance data |
|
|
|
|
Travel speed, laden/ unladen |
|
km/h |
8.5/9 |
|
Lifting speed, laden/ unladen |
|
m/s |
0.25/ 0.3 |
|
Lowering speed, laden/unladen |
|
m/s |
0.43/ 0.45 |
|
Electric-engine |
|
|
|
|
Drive motor rating S2 60 min |
|
kw |
6 |
|
Lift motor rating at S3 15% |
|
kw |
7.5 |
|
Battery voltage/nominal capacity K5 |
|
V/Ah |
48V150AH |
|
Battery weight |
|
kg |
115 |
