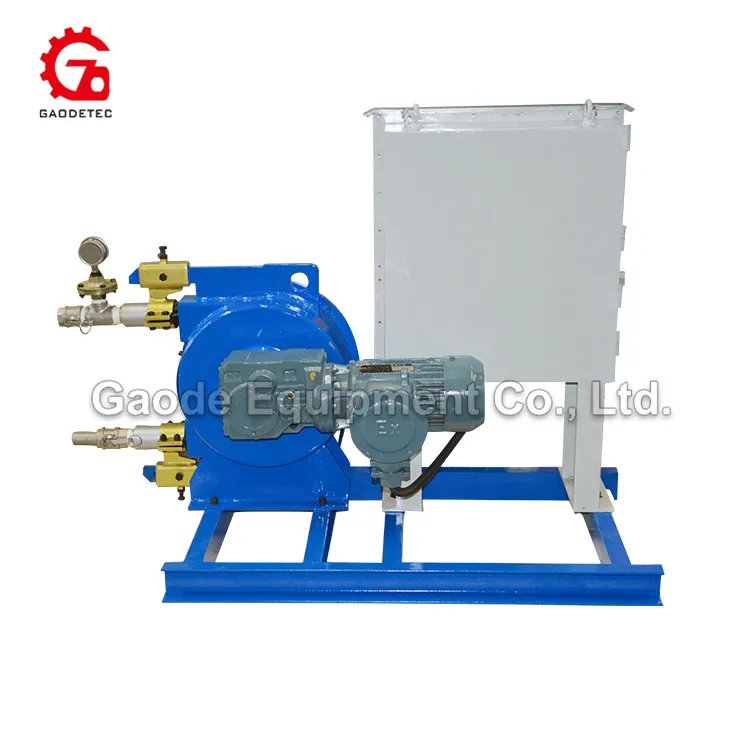

Gaodetec GH32-330B Explosion Proof Hose Pump for Sale
.jpg.webp)
Specifications
- Weight:1560.000kg
- output:2m3/h
- Pressure:0.5Mpa
- Squeeze hose ID:32mm
- Rotate Speed:60rpm
- Motor Power:1.5kw
- Voltage:3 phase 380v 50hz
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description
GH32-330B Explosion Proof Hose Pump description
GH32-330B industrial peristaltic hose pump consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurry, and discharging through outlet under roller’s push, finally forms pressure conveying of slurry.
GH32-330B Explosion Proof Hose Pump features
1. No seals.
2. No valves.
3. Self -priming.
4. Only tube to replace.
5. Dry –running without damage.
6. Reversible.
7. No contact between product and mechanical parts.
8. Able to pump products with solid parts inside.
9. Easy maintenance, low-cost, short down time.
.jpg.webp)

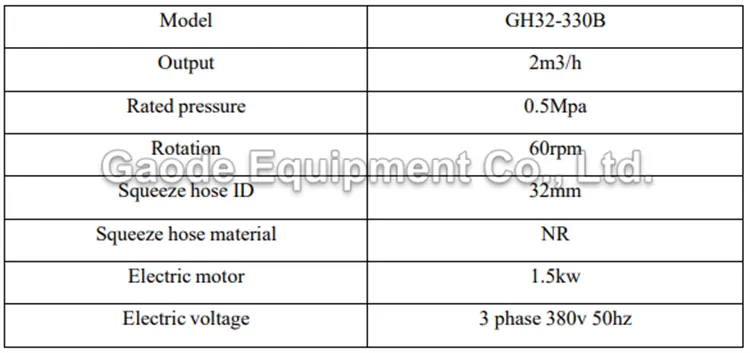

Technical Parameter
Application
This GH32-330B explosion proof peristaltic squeeze hose pump is designed for aggressive medium used in chemical manufacturing as per customers’ project. As per their need, explosion proof electric motor, control and frequency converter are added.
