Gaodetec GCP15H-E small portable stationary concrete pump for sale
_1753525067667.jpg.webp)
Specifications
- Weight:1560.000kg
- output:15m3/h
- Pressure:3Mpa
- Pump Speed:37rpm
- Max. Aggregate size:<15mm
- Concrete Slump:15-23cm
- Hopper Capacity:350L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description
GCP15H-E Hose type peristaltic concrete pump description
GCP15H-E hose type concrete pump was designed based on the squeeze hose pump, the concrete pump uses high pressure, wear resisting extruded tubes. More widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The concrete pump also could be used for spraying concrete or refractory materials.
GCP15H-E Hose type peristaltic concrete pump features
1. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
2. Installation of frequency control, stepless output.
3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
4. Imported special concrete squeeze tubes, pressure, wear, long life.
5. Reversible work, facilitate the removal of plugging failure.
6. Clean on the line, sample, convenient.
GH series hose peristaltic pump advantages
2. No valves.
3. Self-priming.
4. Only squeeze hose to replace.
5. Dry-running without damage.
6. Reversible.
7. No contact between product and mechanical parts.
8. Able to pump products with solid parts inside.
9. Easy maintenace, low-cost, short down time.
Technical Parameter
Application
GH series hose peristaltic pump application
Pumping fine grain concrete, foam concrete and mortar.
2. Water Treatment
Pumping water or waste water.
3. Paper Making
Pumping pulp, color and glues.
4. Food Project
Pumping beer, wine, milk, juice etc.
5. Mining
Conveying of mineral waste residue.
6. Underground Engineering
For TBM, pumping bentonite.

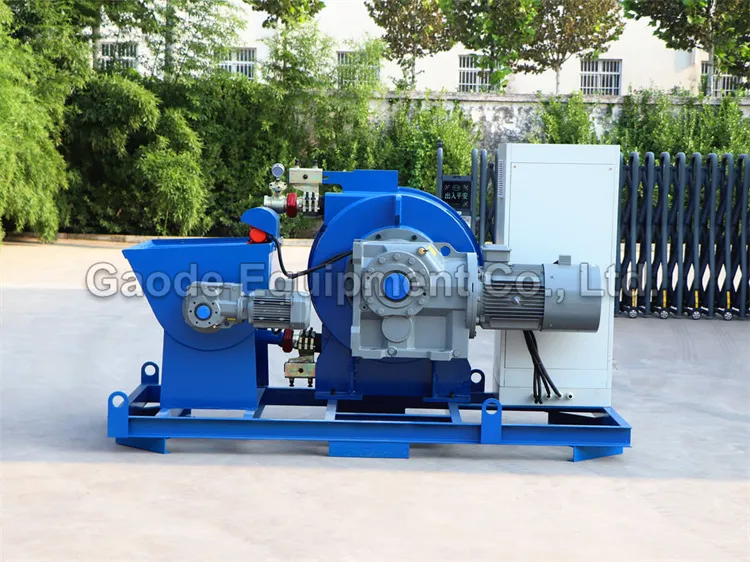

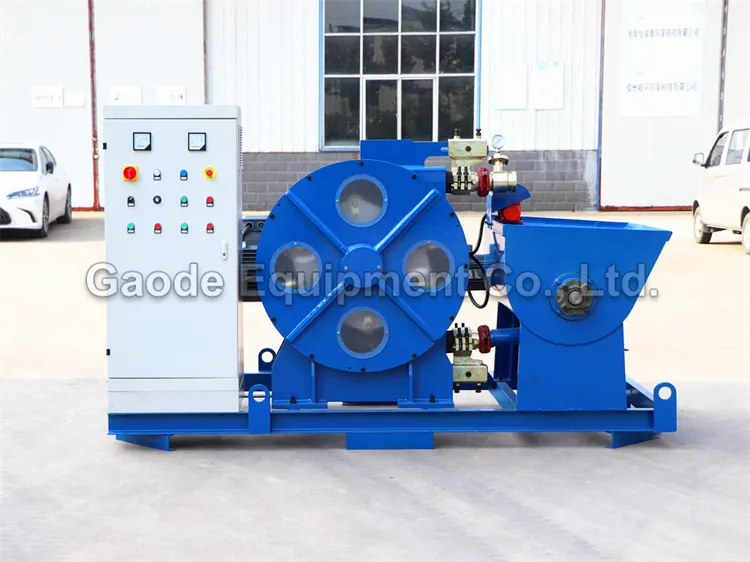

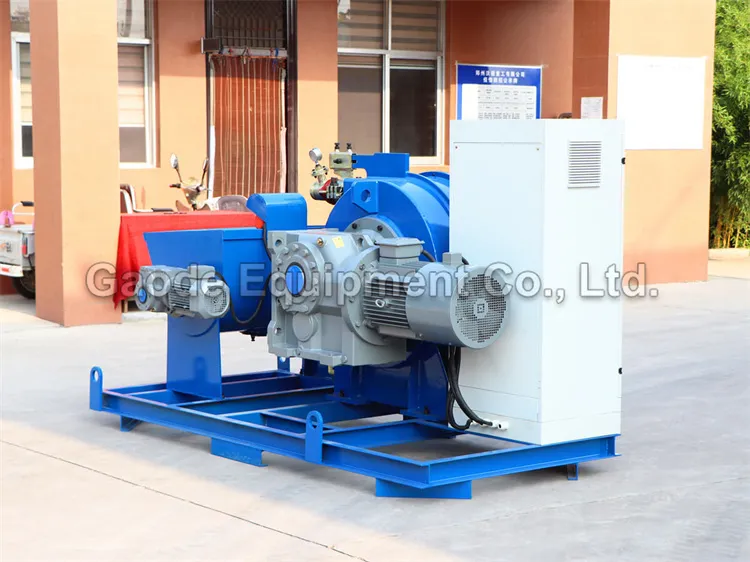

Image Display
Contact Us
Contact us for catalog and price of hose peristaltic pump
