XCMG 90 ton Mining Dump Truck XGA5105D3T price

Chat Now 1 / EA (Min. Order)
Model: XGA5105D3T
Engine: WEICHAI
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 90 ton Mining Dump Truck XGA5105D3T price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • Product PDF

Summary

  • Certification:CE/TVU
  • Dimension(L*W*H):9045*3640*4010mm
  • Weight:31000kg
  • Power(W):390kW
  • Model Number:XGA5105D3T
  • Place of Origin:Xuzhou, China
  • Max. Speed:52km/h
  • Brand Name:XCMG

Specifications

  • Weight:31000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Drive type:6*4
  • Wheelbase:3800+1700mm
  • Cargo size:6400*3400*1850mm
  • Left/Right driving:LHD/RHD
  • Emission standard:EUR III

XCMG 90 ton Mining Dump Truck XGA5105D3T price

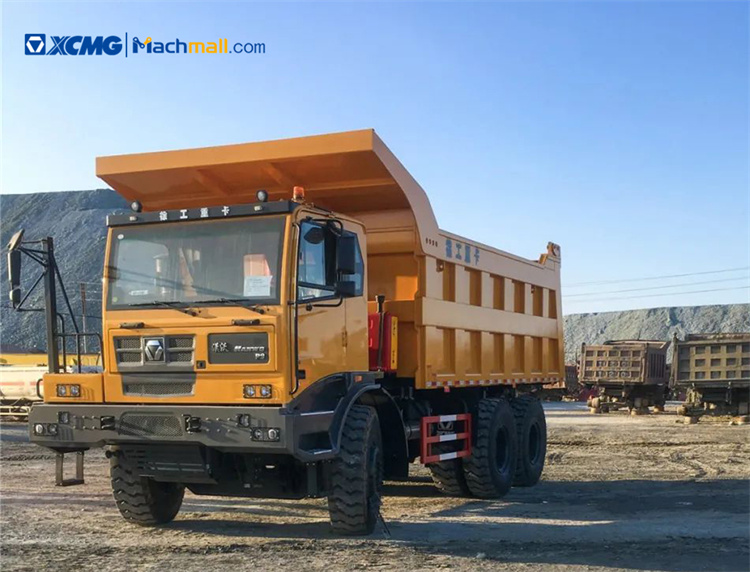

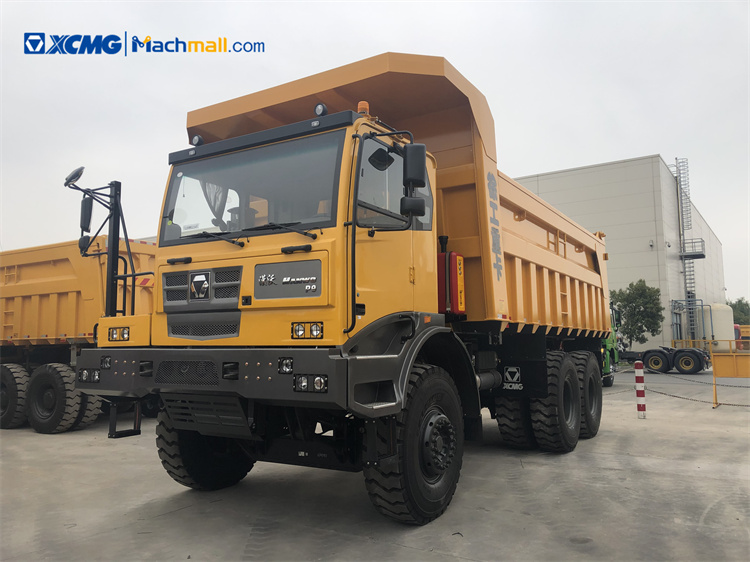

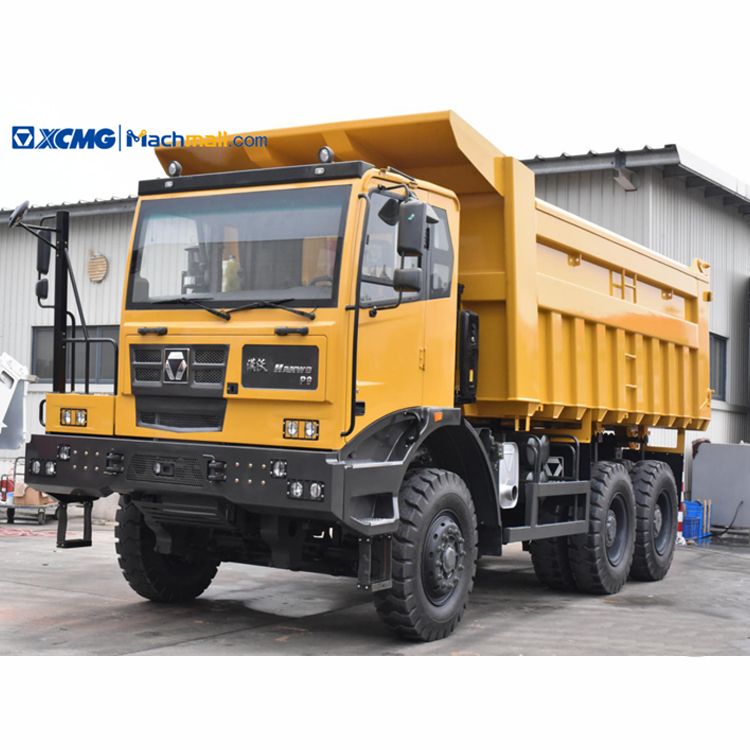

XCMG 90 ton Mining Dump Truck XGA5105D3T.

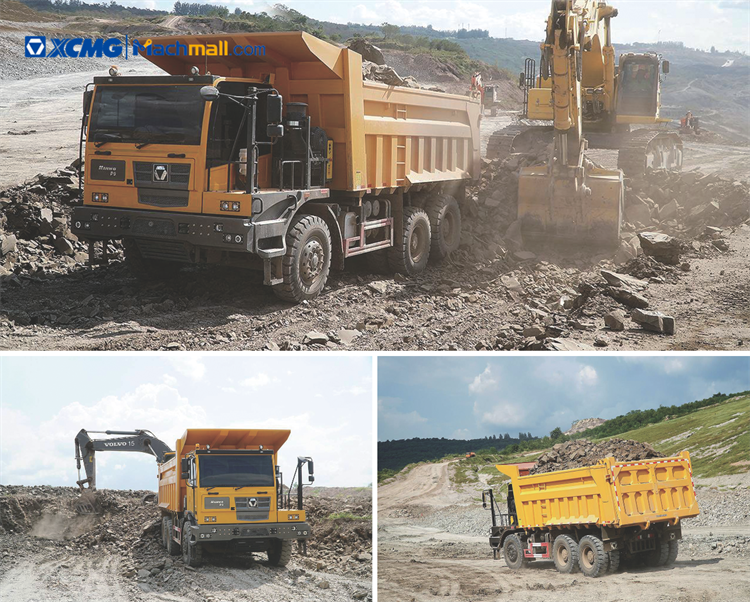

XG105 is a high-end strategic new product of XCMG Dump Truck off-highway line. Equipped with luxurious, solid and durable driving, it can effectively meet the user’s long-term, heavy-load and high-intensity operation requirements. It is widely used in water conservancy, open-pit mining and other workplaces.



Highlights:



1. XG105 is equipped with Weichai engine, and the vehicle emission standard meets the fourth-stage non-road emission requirements, and the vehicle is more environmentally friendly; the vehicle power is upgraded and optimized, and the fuel consumption per ton-kilometer is reduced by more than 10%; it is equipped with an oversized cargo box with a stacking volume of 40 cubic meters , increase the carrying capacity of a single unit and reduce operating costs.



2. XG105 mining dump truck brand new brake assembly, the braking force is increased by 5%; the center of gravity of the whole vehicle is lowered by 60-100mm, which improves the anti-rolling ability of the whole vehicle and has better adaptability to working conditions; optional hydraulic retarder saves operating costs; The driver can easily grasp the surrounding conditions of the vehicle and eliminate the blind spot of the vehicle with optional 360 Panoramic image; optional full protective brim can ensure driving safety.



3. The high-strength welded frame improves the strength; the suspension and balance shaft are optimized, and the torsion resistance is ahead of similar products in the industry. The front suspension is matched with the oil and gas suspension structure, which completely solves the problem of breaking the front leaf spring, which accounts for 40% of the failure rate of the whole vehicle.



4. The newly developed cab assembly of XG105 fully considers ergonomics, and effectively reduces the driver’s manipulation intensity for seat height, gear selection position and vehicle vision; full hydraulic steering, lighter steering, car-like driving experience ; high-power heating and cooling air conditioning makes worry-free driving in four seasons.



After-sale service:

1. For batch equipment, a full life cycle service consisting of new machine delivery, technical training, on-site service, regular inspection, service return visit, etc. is implemented.

2. XCMG’s nanny-style resident service provides a 15-minute response and 24-hour solution. One-to-one unique spare parts reserve are established at the project site to ensure the timeliness of service and the attendance rate of vehicles.



XCMG 90 ton Mining Dump Truck XGA5105D3T price

PERFORMANCE PARAMETERS

Drive Type

6×4

Kerb Mass

31000kg

GVW

96000-105000kg

Max. Speed

52km/h

Min. Turning Radius

12m

Grade Ability

≥33%

Fuel Tank

600L

DIMENSIONS

Dimension (mm)

9045×3640×4010

Wheelbase (mm)

3800+1700

Min. Clearance

360mm

Approach Angle

38°

Departure Angle

50°

Front Overhang

1755mm

Rear Overhang

1890mm

Cargo size (mm)

6400×3400×1850

CABIN

Model

K20 Left dislocation cab

Left/Right Driving

LHD

AC

Optional

Person Allowed in

1

ENGINE

Model

WP13G530E310

Emission Standard

EUR III

Displacement

11.596L

Output Power

390kW

Max Torque Speed

2300N·m
