- Summary
- Specifications
- weight:18610.000kg
- Condition:New
- Moving Type:Wheel
- Tire:12.00R20 Radial
- Fuel tanker capacity :400L
- Engine Model :WP10.380E42
- Fuel type:Diesel EURO III

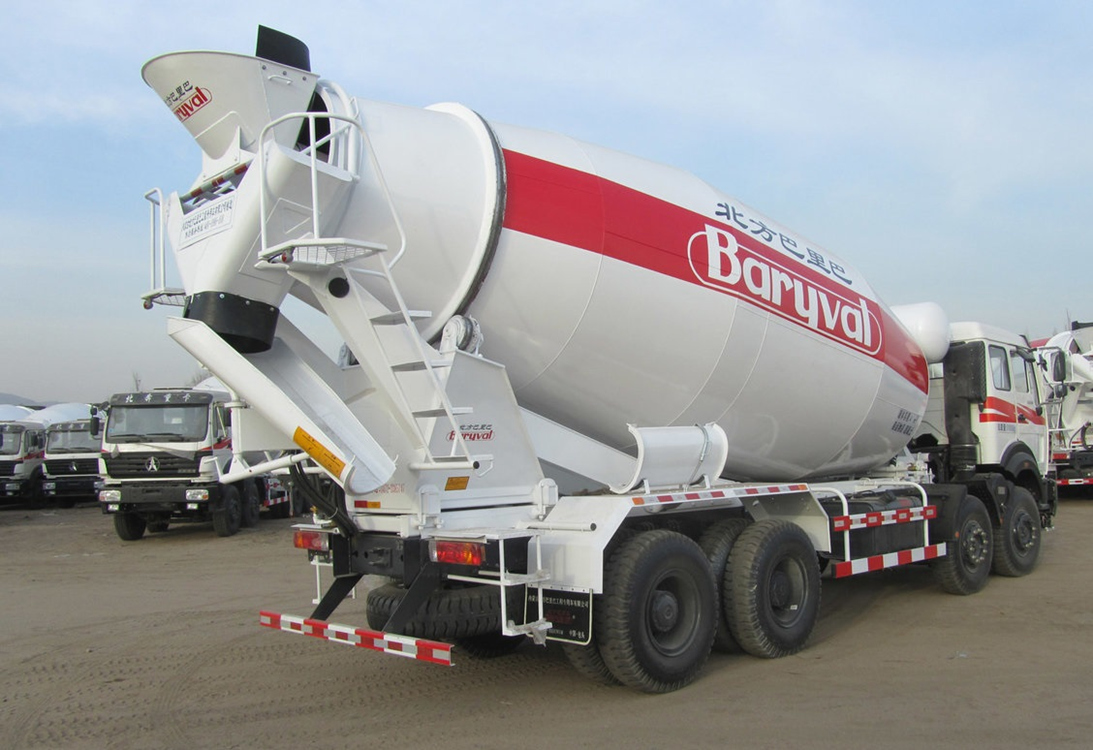

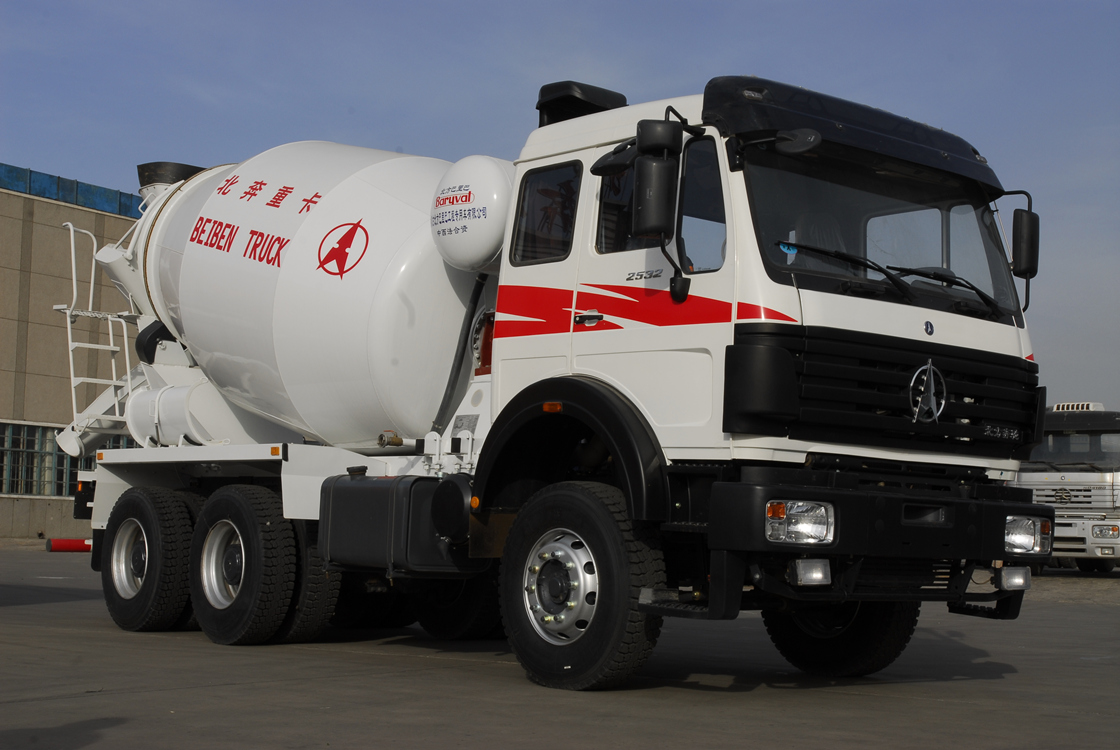

BEIBEN mixing truck 6×4 380HP with high safety.
Full steel structure, frame with 860mm to ensure bearing capacity and improve the stability of the vehicle; original Mercedes technology steering bridge, high carrying capacity, good passability; CNA system to improve fault diagnosis rate; FAST intermediate axle gearbox, climbing start, adapt to various bad and complex working conditions; engine using Weichai "blue engine" engine, meet EuroIII emissions, low fuel consumption and strong power performance.
The Baotou BEI BEN Axle Co.Ltd.is a wholly-owned subsidiaries of the BEI BEN TRUCKS GROUP CO.,LTD..In the late 1980s the introduction of Germany Daimler—Benz a full set Of technology,including a full set of drawings,technical process, inspection specifications and other technical documents.The Company advanced technology, first-class equipment, axle industry in a leading position in the country.
The main products of the company include 2 series of truck axles and bus axles,8 platforms and over 120 varieties.The Company in strict accordance with ISO9001-2008 system for quality control,relying on advanced CNC processing equipment and digital assembly method to ensure the quality of the product.For the reliability of the products,our company material and parts supply standard strictly enforced DBL standard in Germany.
| SPECIFICATION | ||||||
| Engine（WEICHAI） | Model | WP10.380E42，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Emission stantard |
Diesel EuroIII | |||||
| Fuel tanker capacity | 400L | |||||
| Gearbox | 12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer | |||||
| Tyre | 12.00R20 Radial | |||||
| Main technical parameters of concrete mixer | ||||||
| Drum performance parameter搅拌罐参数 | Geometric Volume | 18.4 m3 | ||||
| Motor | PMP90 | |||||
| Water supply type | Air pressure Type | |||||
