Specifications
- weight:1.000kg
- Minimum height of mast:2308 mm
- Lifting height:3530 mm
- Fork size:60/150/1150 mm
- Minimum turning radius:1485 mm
- Driving speed (full load/no load):4.3/4.5 km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

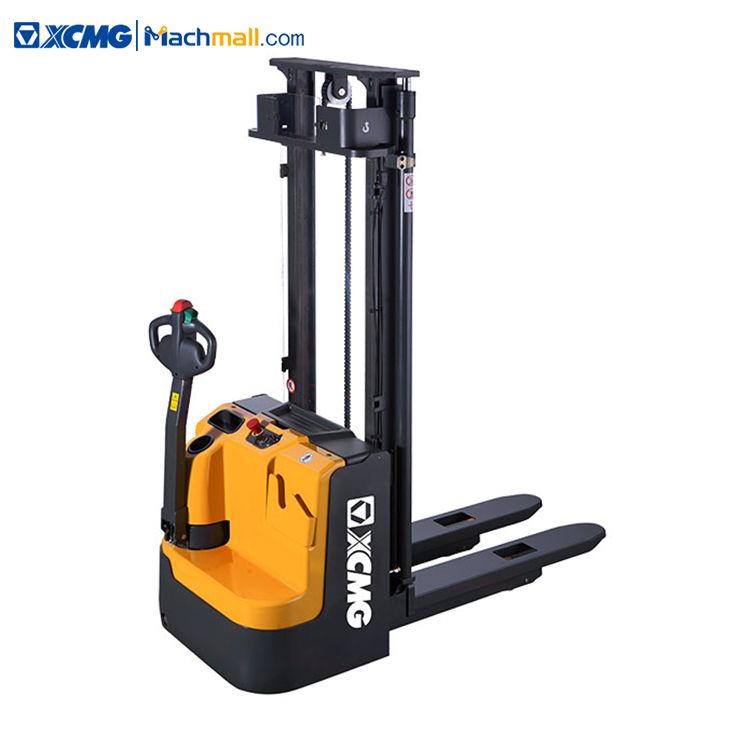

XCMG new walking pallet stacker XCS-PW12 3530mm lift height.
XCMG new walking pallet stacker XCS-PW12 3530mm lift height uses an electromagnetically controlled proportional lifting system to ensure that each stacking operation can be accurately positioned. In the case of high lift, the proportional lift of electromagnetic control can perform more perfectly.
The design of the long handle enables the operator to maintain a certain safe distance from the car body while working efficiently, and has a smaller operating force than the short handle. The four-wheel design on the side of the long handle allows the operator to have a better view of the tray.
The CAN-BUS technology using digital signals not only reduces the number of wiring, simplifies the complexity of finding and solving faults, but also improves the reliability of the system, and the parts life is longer compared with analog signals.
|
Project |
Unit |
Parameters |
|
Parameter item |
|
XCS-PW12 |
|
Rated carrying capacity |
kg |
1200 |
|
Minimum height of mast |
mm |
2308 |
|
Lifting height |
mm |
3530 |
|
Overall length/vehicle length/total width |
mm |
1919/769/820 |
|
Fork size |
mm |
60/150/1150 |
|
Outer space of forks (minimum/maximum) |
mm |
570/685 |
|
Minimum turning radius |
mm |
1485 |
|
Driving speed (full load/no load) |
km/h |
4.3/4.5 |
|
Lifting speed (full load/no load) |
mm/s |
110/160 |
