XCMG 9m road paver RP903 laying machine asphalt pavers

$10000.00-$1000000.00 1 / EA (Min. Order)
Model: RP903
Engine: SHANGCHAI
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 9m road paver RP903 laying machine asphalt pavers

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:24.5~29.0 t
  • Dimension(L*W*H):7150*3000*3950 mm
  • Model Number:RP903
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Paving Width:3-9m
  • Max. Paving Thickness:300mm
  • Power(W):162/2000 kw/rpm
  • Production Capacity:800t/h
  • Certification:CE/ISO9001

Specifications

  • Weight:24500.000kg
  • Condition:New
  • Moving Type:Other
  • Maximum paving speed:16m/min
  • Driving speed:0-2.6km/h

XCMG 9m road paver RP903 laying machine asphalt pavers

XCMG 9m road paver RP903 laying machine asphalt pavers.

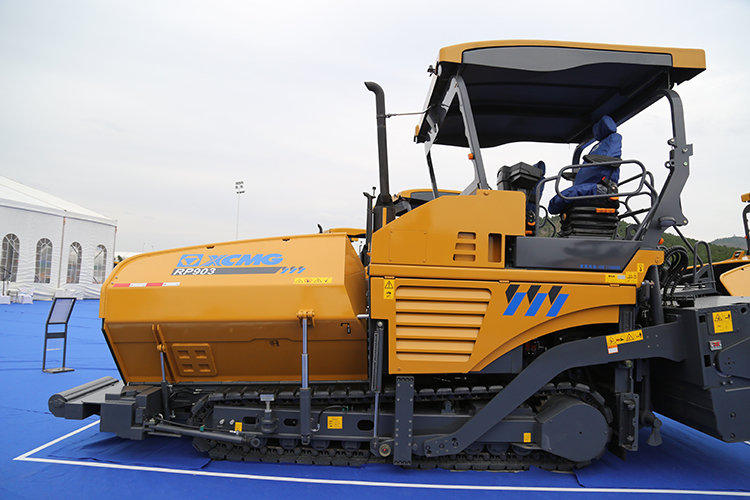

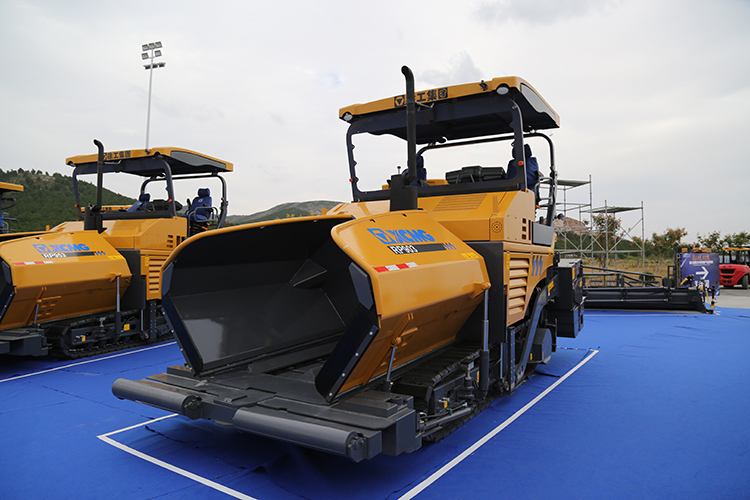

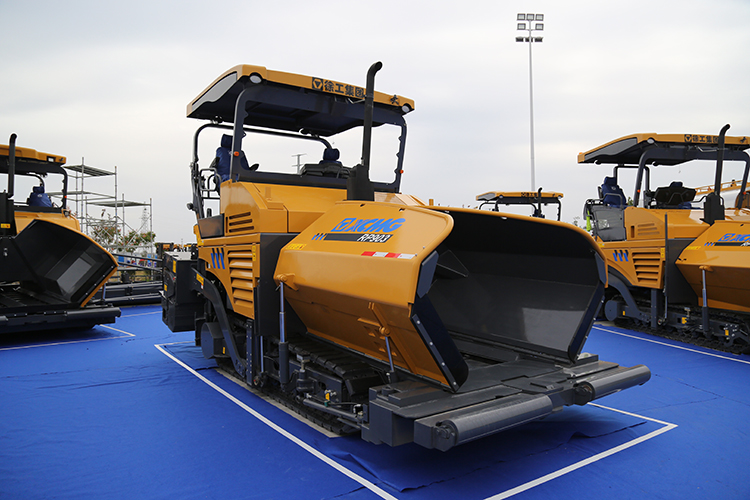

XCMG RP903 concrete asphalt paver machine use driving left and right independent drive, paving width from 3 meters to 9 meters width, paving speed using constant-speed automatic control technology, diesel engine has a powerful power of 162kW.



Advantages and features:

1.Driving left and right independent drive, microcomputer control, paving speed using constant-speed automatic control technology.



2.The diesel-powered SC9DK220 diesel engine has a powerful power of 162kW.



3.Adopting a three-in-one powerful composite radiator, the transmission and distribution adopt four sets of independent hydraulic system transmission.



4.The height of the dividing device can be conveniently moved up and down to accommodate different paving thicknesses and reduce segregation.



5.High wear-resistant alloy materials are used for the material-dividing blades, and highly wear-resistant steel plates are used for the material conveying floor and the screed bottom plate to effectively extend the service life of the machine.



6.Central centralized lubrication system can automatically evenly lubricate bearings in high temperature parts.

XCMG 9m road paver RP903 laying machine asphalt pavers

Item

RP903

dimension

7150×3000×3950mm

Weight

24.3-27.2t

Driving speed

0-2.6km/h

Basic pave width

3-9m

Maximum pave width

9m

Maximum layer thickness

300mm

Maximum paving speed

16m/min

Hopper capacity

15t

Maximum laydown rate

800t/h

Rate power

162/2000 kw/rpm
