Gaodetec GSZ3000A 5m3/h pneumatic Shotcrete Machine for sale
GSZ3000A
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GSZ3000A
CE
1950×1050×1360mm
1200kg
8kW
Air motor type
GSZ3000A
Gaodetec
China
22m3 /min
50/ 65mm
15mm
35m(wet) 200m(dry)
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):1950×1050×1360mm
- Weight:1200kg
- Power(W):8kW
- Voltage:Air motor type
- Model Number:GSZ3000A
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:22m3 /min
- Hose Inner Diameter:50/ 65mm
- Max Aggregate Size:15mm
- Max. Conveying Distance:35m(wet) 200m(dry)
Specifications
- Weight:1200.000kg
- Condition:New
- Moving Type:Wheel
- output:5m3/h
- Concrete Slump:8 -15cm
- Operating air Pressure:0.2-0.6MPa
- Air Consumption:22m3 /min
- Air motor power:8kW
- Dosing Pump:BHA530 Dosing pump
- Dosing Pump Rated Pressure:0.5MPa
- Dosing Pump Output:0~100L/h
- Loading height:1.17m
- Rotor Speed:11r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description

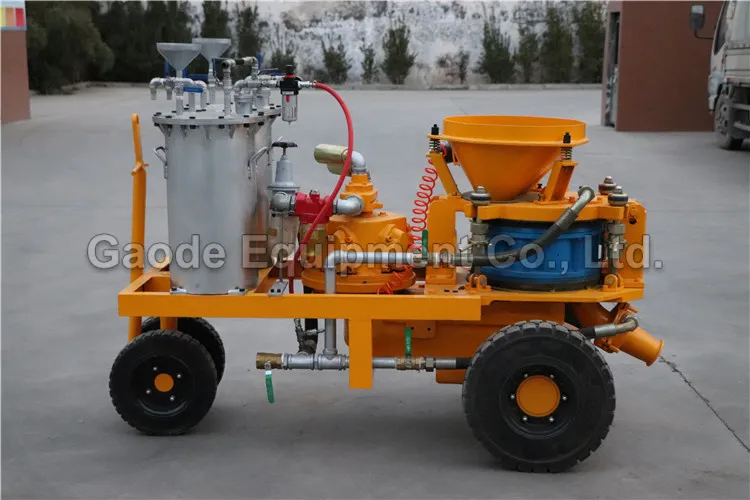

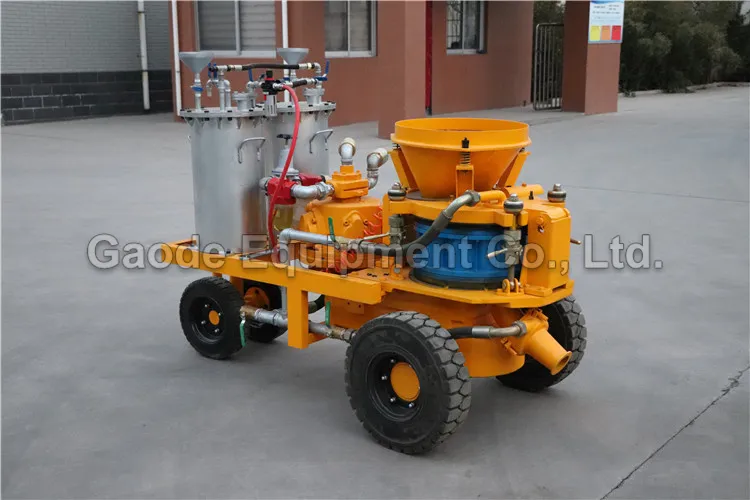

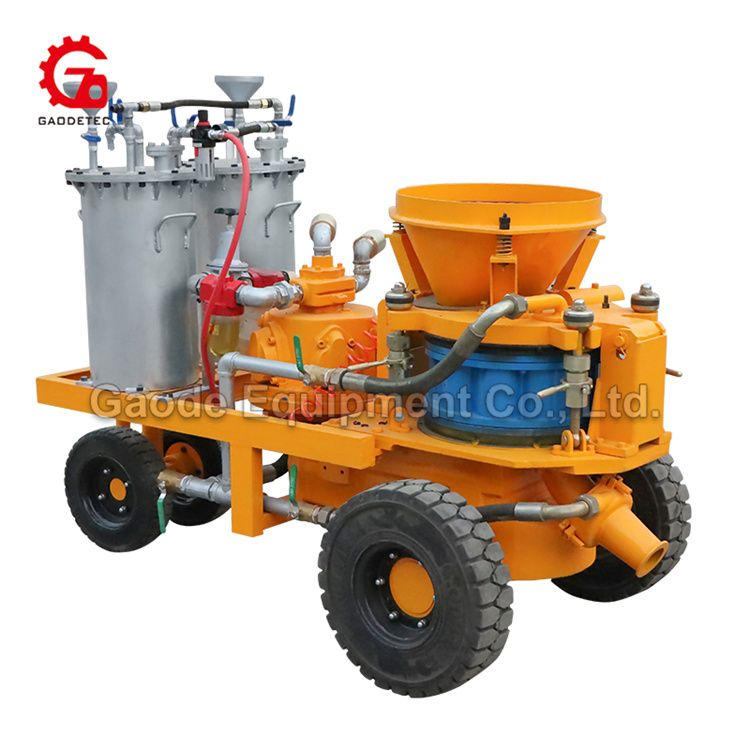

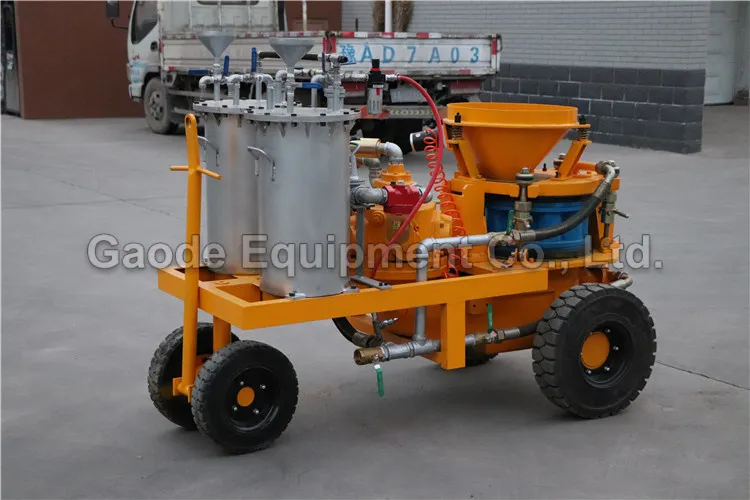

GSZ3000A Pneumatic Shotcrete Machine
GSZ3000A wet shotcrete machine is a full pneumatic drive unit. It mainly is used for wet spraying concrete.
1. Its advantages are easy sealing, smooth stream and uniform spraying etc. It also has some obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and longevity of service etc.
2. It is widely used in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
3. Due to its full pneumatic drive unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this wet shotcrete machine is perfect and specific option.
.jpg.webp)
.jpg.webp)
_1753431577559.jpg.webp)

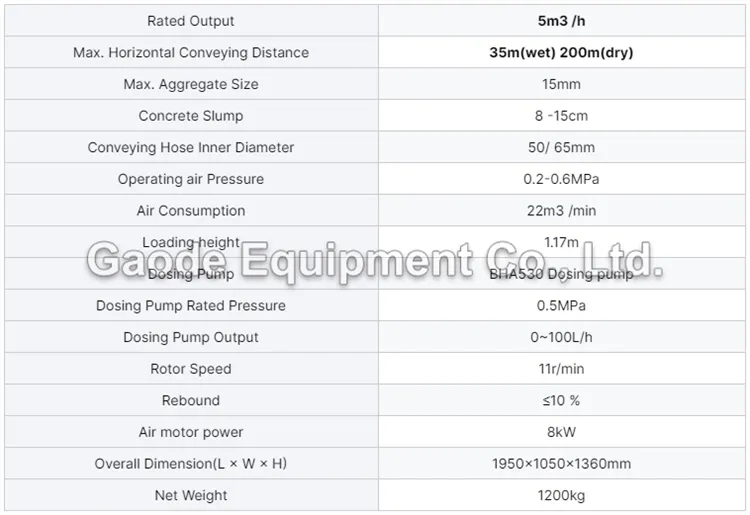

Technical Parameter

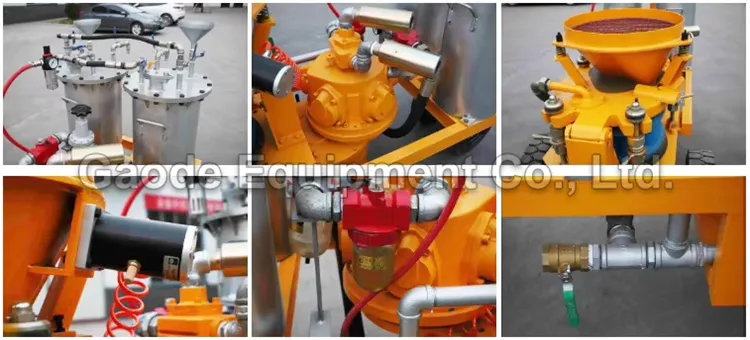

Image Display
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
