- Summary
- Specifications
- Weight:66.000kg
- Dimension(L*W*H):673*343*965MM
- Power:2KW
- Weight:66kg
- Engine:Wacker Neuson
- Impact force:18KN
- Working speed:9.8m/min
- Rated power/speed:2/4400kW/r/min
- Fuel tank displacement:2.9L

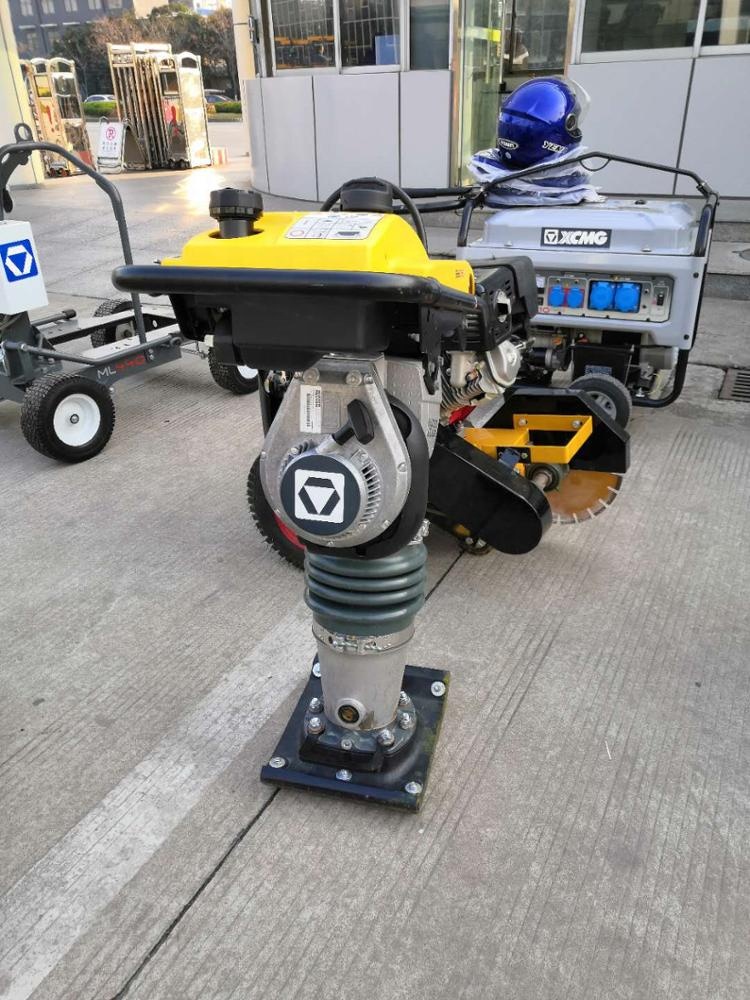

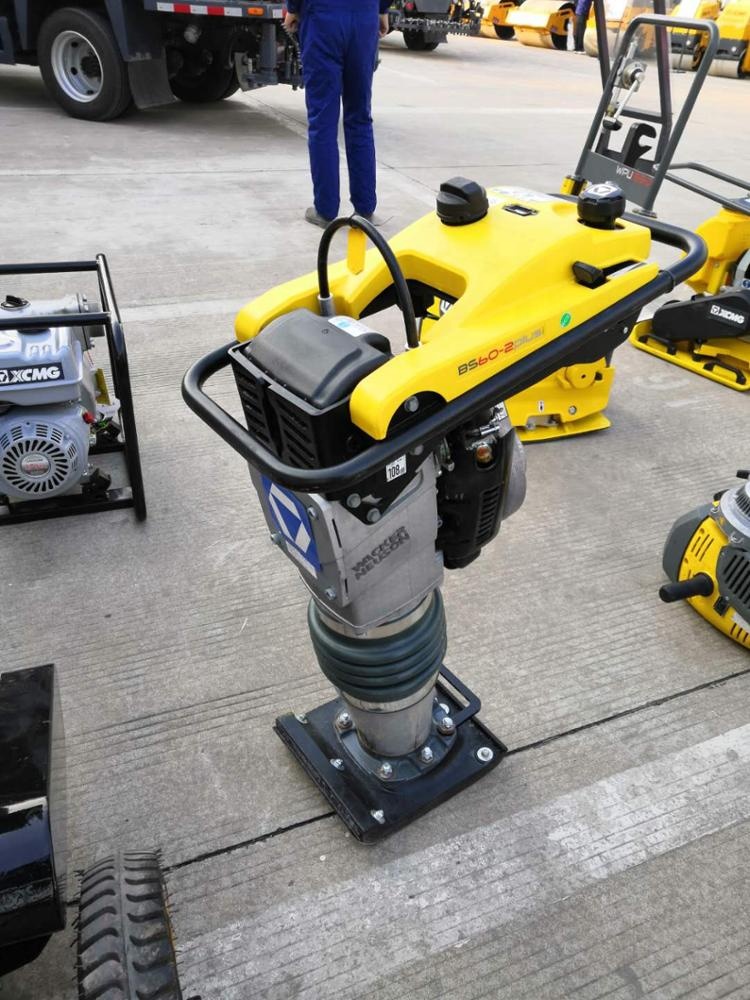

XCMG official vibration impact rammer compactor XC60-2i.
XCMG rammer compactor XC60-2i adopt additional built in air filtration system plus the original air cleaners in the engine provides cleaner air to engline for longer life and improved durability.
Performance Characteristics:
1.Single Cylinder air cool and 2 stroke .
2.Heavy duty throttle control provides more reliable and longer service.
3.An integrated fuel valve provides for easy starting.
4.Heavy shock mount system to reduce hand-arm vibration and improve operator comfort.
5.Plastic oil tank offers longer life and rust-free.
|
Unit |
Parameter |
XC60-2i |
|
Operating weight |
kg |
66 |
|
Base plate (width*length) |
mm |
280*340 |
|
Length*Width*Height |
mm |
673*343*965 |
|
Number of strikes (maximum) |
1/min |
687 |
|
Impact force |
KN |
18 |
|
Working speed |
m/min |
9.8 |
|
Engine type |
—— |
Air-cooled single-cylinder two-stroke gasoline engine |
|
Engine |
—— |
WM80 |
|
Fuel consumption |
L/h |
1 |
|
Rated power/speed |
kW/r/min |
2/4400 |
|
Fuel tank displacement |
L |
2.9 |
|
Gasoline and oil mixture |
—— |
1:100 |
