FOB Price: $88000.000
View All >
Model: XR150DIII
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Retread Machine 150kN XR150DIII Rotary Drilling Rig For Sale

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XR150DIII
Specs & Compare
Details

Specifications

  • weight:49000.000kg
  • Output torque:150kN·m
  • Rated power:133/2200kW
  • Rotating speed:6~28r/min
  • Maximum driving speed:3.2km/h

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China

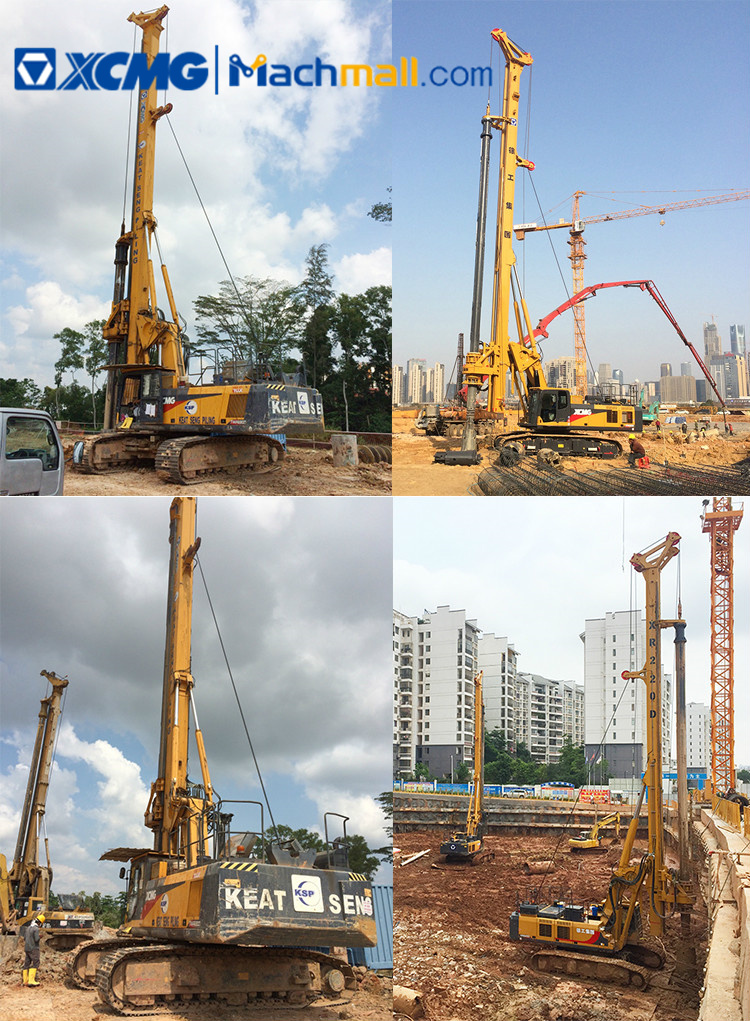

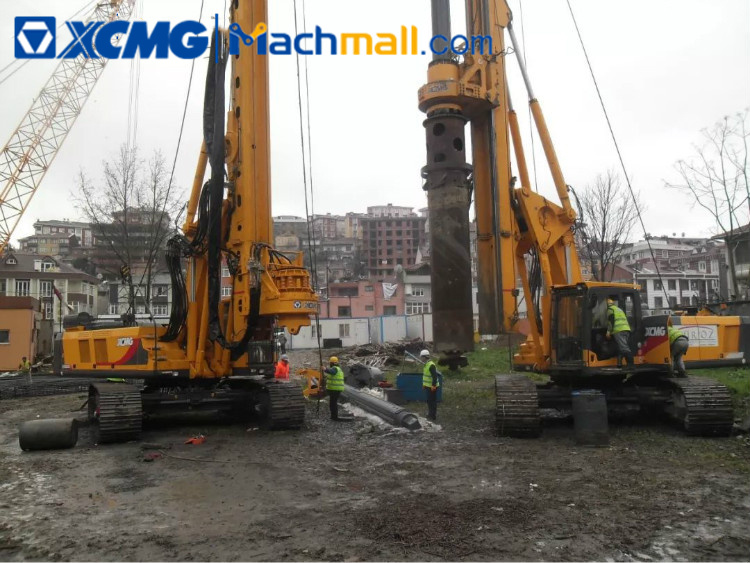

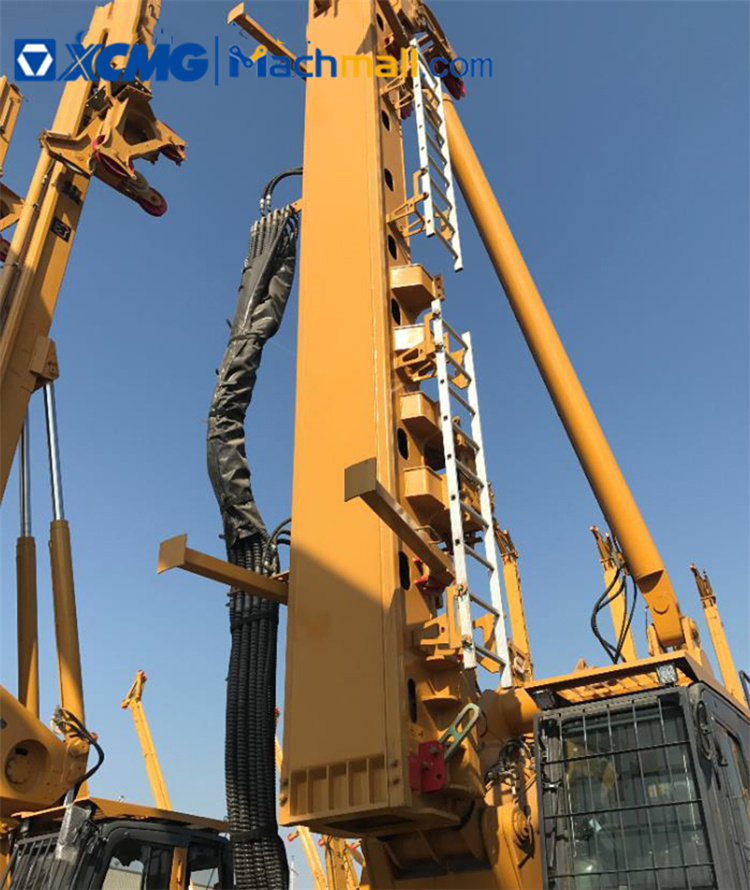

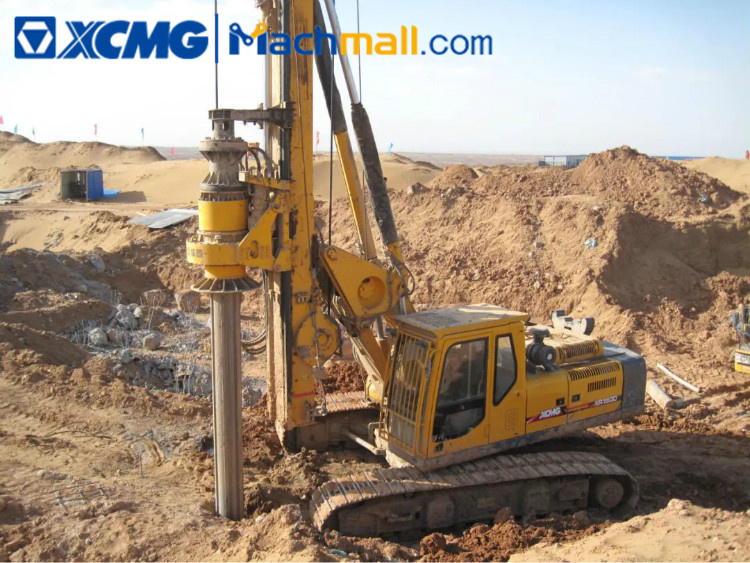

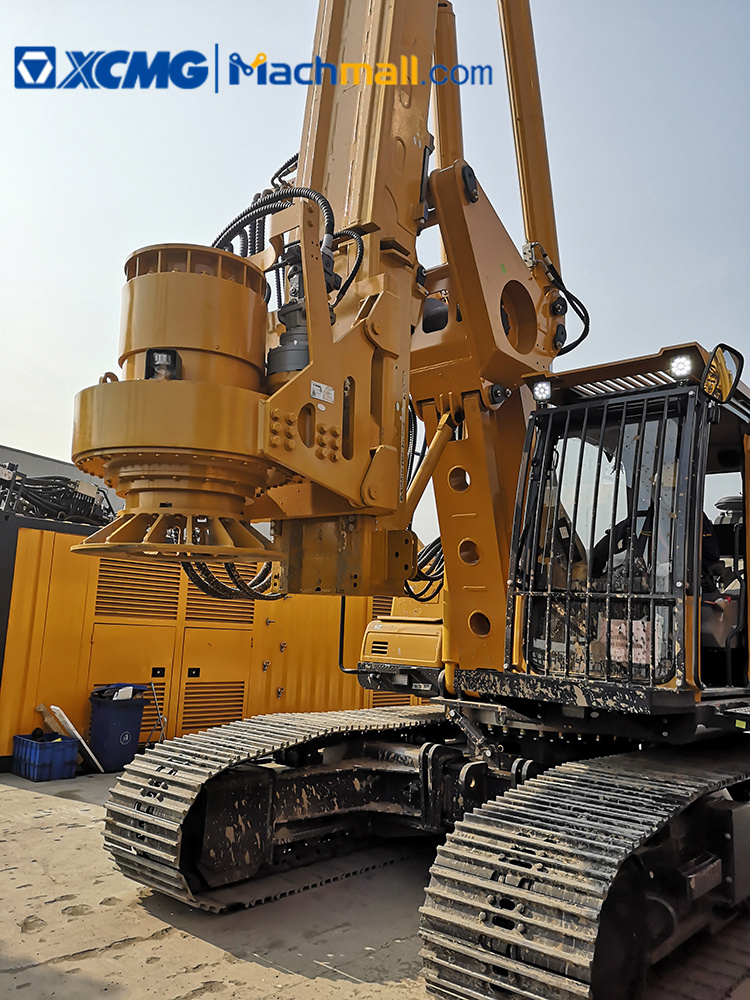

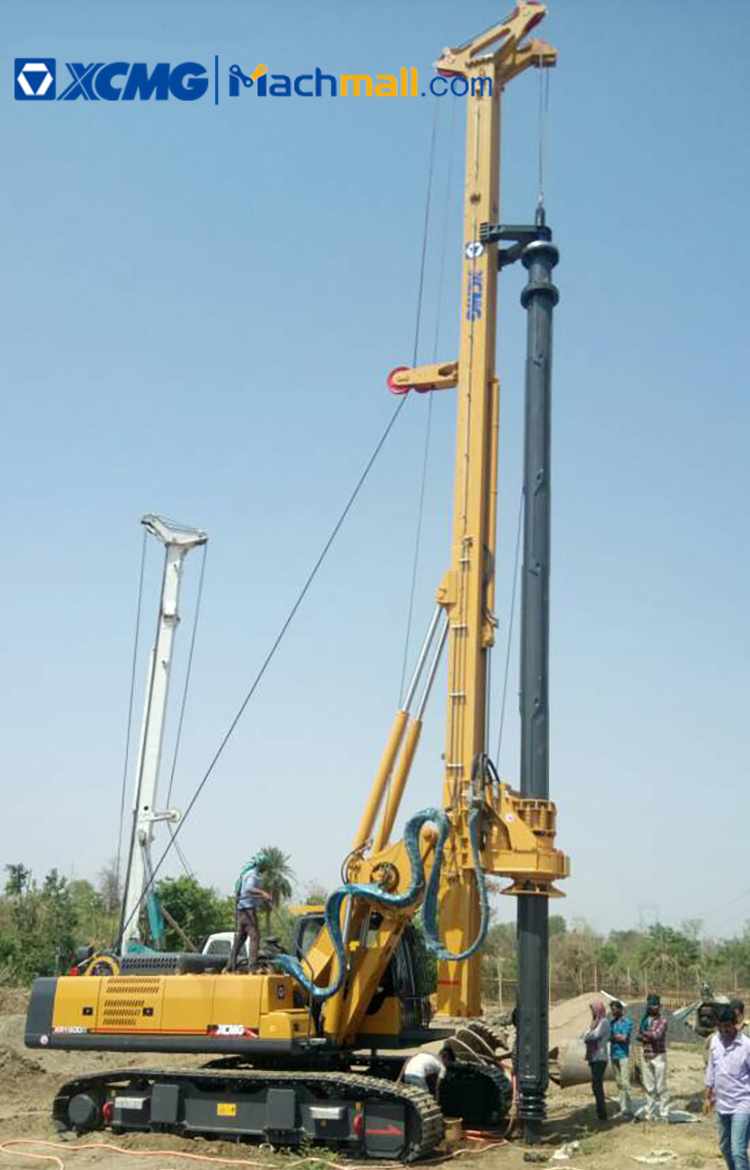

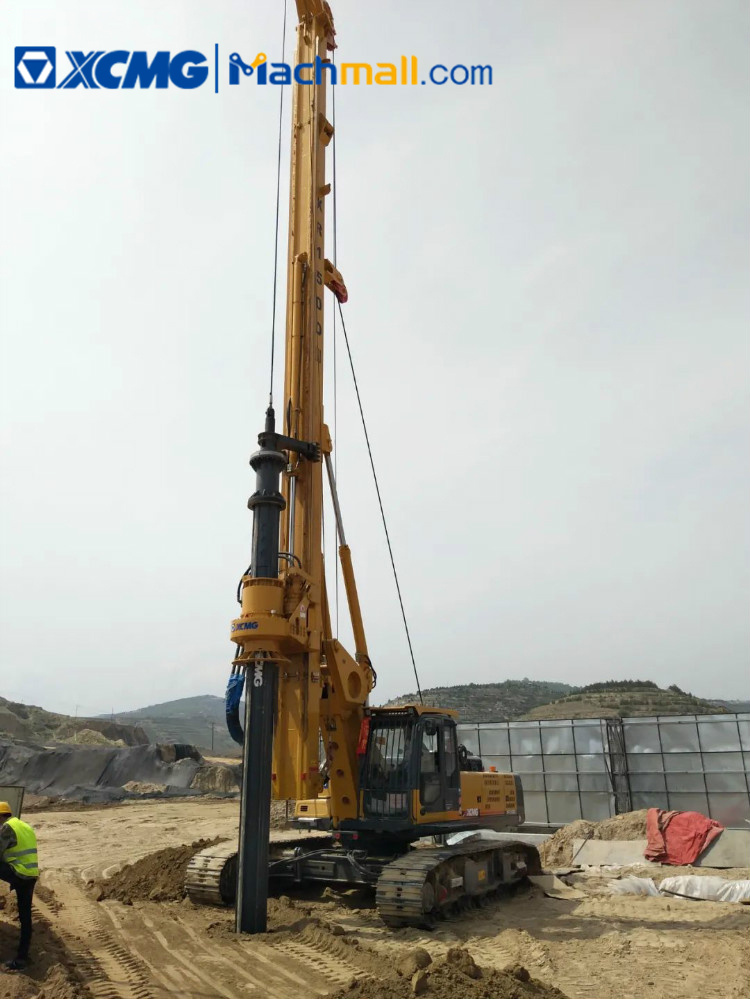

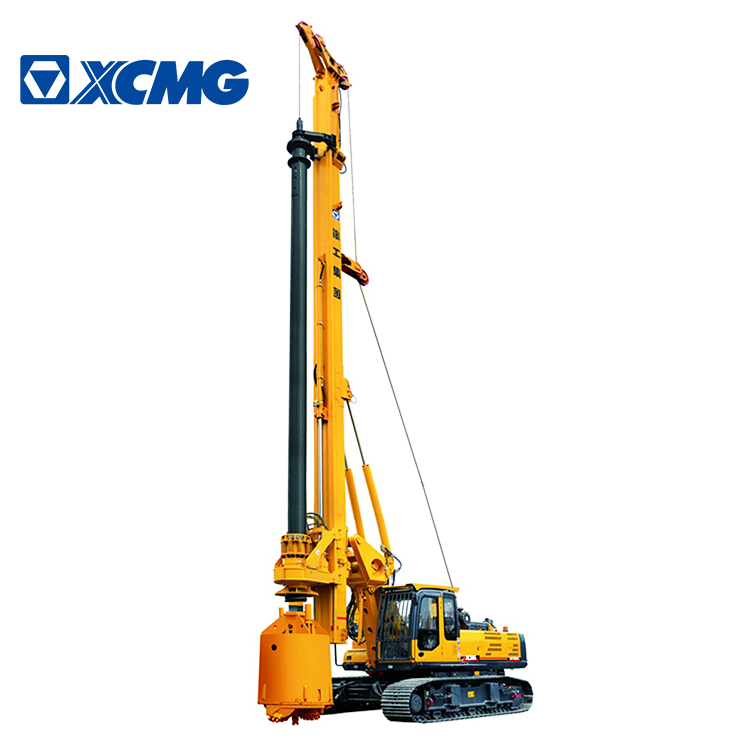

XCMG Retread Machine 150kN XR150DIII Rotary Drilling Rig

XCMG XR150DIII rotary drilling rig uses imported Cummins electronically controlled turbocharged engine, which meets Euro III emission standards, is energy-saving and environmentally friendly, and has strong power. It adopts a retractable special rotary drilling rig chassis and is equipped with a double-box luffing mechanism, which is convenient for transportation and adjustment, and ensures the stability and reliability of the whole machine. Imported Kawasaki hydraulic components, reasonable power system matching, and high construction efficiency. The GPS global satellite positioning system is used to realize remote data analysis on the working conditions of the whole machine, and has the functions of remote real-time monitoring and remote fault diagnosis.



Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.



Description
Unit
Parameter value
Max. drilling diameter
mm
1500
Max. drilling depth
m
56
Allowable luffing scope (from center of drill rod to slewing center)
mm
3250~3650
Drilling rig dimension in working condition (L × W × H)
mm
7550×4200×19040
Drilling rig dimension in transport condition (L × W × H)
mm
13150×2960×3140
Weight of overall unit (standard configuration, excluding drilling tool)
t
49
Engine
Model

QSB7
Rated power/speed
kW
150/(2050r/min)
Max. working pressure of hydraulic system
MPa
35
Rotary drive
Max. torque
kN •m
150
Rotational speed
r/min
7~33
Crowd cylinder
Max. Pushing force
kN
120
Max. Pulling force
kN
160
Max.stroke
mm
3500
Main winch
Max.pulling force
kN
160
Max. single-rope speed
m/min
72
Diameter of the steel wire rope
mm
26
Auxiliary winch
Max.pulling force
kN
50
Max. single-rope speed
m/min
60
Diameter of the steel wire rope
mm
16
Rotary table slewing angle
°
360
Traveling
Max. traveling speed of the overall unit
km/h
2.1
Max. climbable gradient of the overall unit
%
40
Crawler
Width of crawler plate
mm
700
External width of crawler (min.-max.)
mm
2960~4200
Center distance between two longitudinal wheels of crawler
mm
4310
Average ground pressure
kPa
83






XCMG STORY
XCMG RECONDITIONED MACHINE
XCMG reconditioned machine is the second-hand machine program launched by XCMG for the post market. XCMG takes advantage of its dealers network to collect the second-hand XCMG machine that falls into strict standards: good condition, full function and low service hours. The returned machine is then disassembled, repaired, painted, rebuilt and tested officially by XCMG, and the product life is therefore extended. The price of XCMG reconditioned machine is far lower than that of the new one, but its performance and safety are not compromised thanks to XCMG's state-of-the-art processes and technologies. In order to dispel customers' concerns, XCMG establishes a strict evaluation system for reconditioned machines and invites SGS to issue third-party certification.
OUR TEAM
150+ SPECIALISTS
150+ specialists participate in the reconditioning process.
Inspection Team
Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine.
Reconditioning and Repairing Team
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
Issuing Report Team
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
OUR FACTORY
REMANUFACTURING FACTORY
RECONDITION PROCESSES
RECONDITION PROCESSES OF THE USED
We maintain a meticulous and rigorous attitude toward quality, focusing on extraordinary creativity, elaborate designs and exquisite craftsmanship.
COLLECTION
Examine the working conditions, conduct static and dynamic assessment on the used machine. Only machines with light deprecation, low working hours and full functions can be collected.
INSPECTION
Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine. More than 300 details are checked and compared to XCMG standard. Recondition plan is then decided.
RECONDITIONING AND REPAIRING
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
TESTING
Follow the test procedure, ensure the performance and durability of the machine. Unqualified products are returned to step 3.
READY FOR DELIVERY
Ready for Delivery!!!
ISSUING REPORT
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
PAINTING
The whole machine is repainted to restore its appearance. Bright as new.
FAQ
FREQUENTLY ASKED QUESTIONS
1.What’s the warranty policy for XCMG reconditioned machines?
The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump, distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first. If there is any problem within warranty period, XCMG will provide solutions accordingly.
2.How about the quality of your machine?
The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.
3.Are you the original manufacturer?
Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.
4.Can you satisfy my special requirement?
As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).
5.What is accpetable payment terms?
Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
If any other questions, please feel free to contact with us.
