XCMG 14 tons single drum vibratory road roller machine XS143JPD price
Summary
- Weight:14tons
- Dimension(L*W*H):6010*2300*3200 mm
- Power(W):103kw
- Brand Name:XCMG
- Place of Origin:XUZHOU,CHINA
- Grade Ability:30%
- Travel Speed:2.85-5.08km/h
- Static Linear Pressure:315N/cm
Specifications
- Weight:14000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

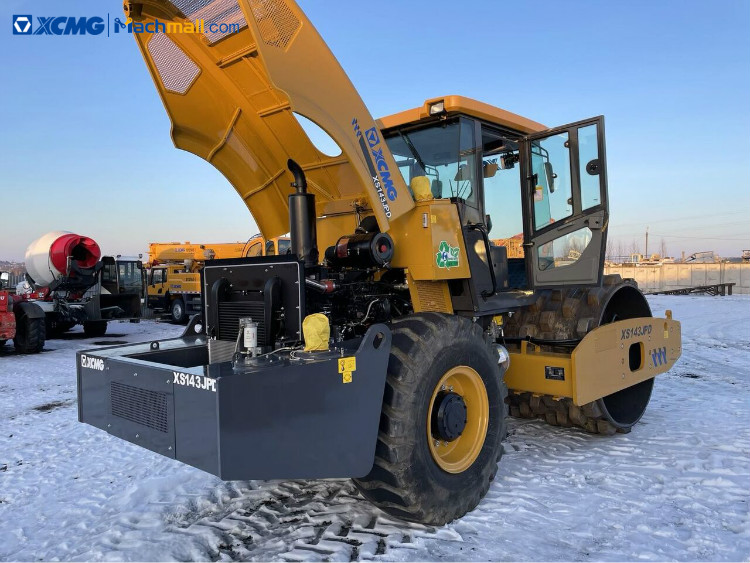

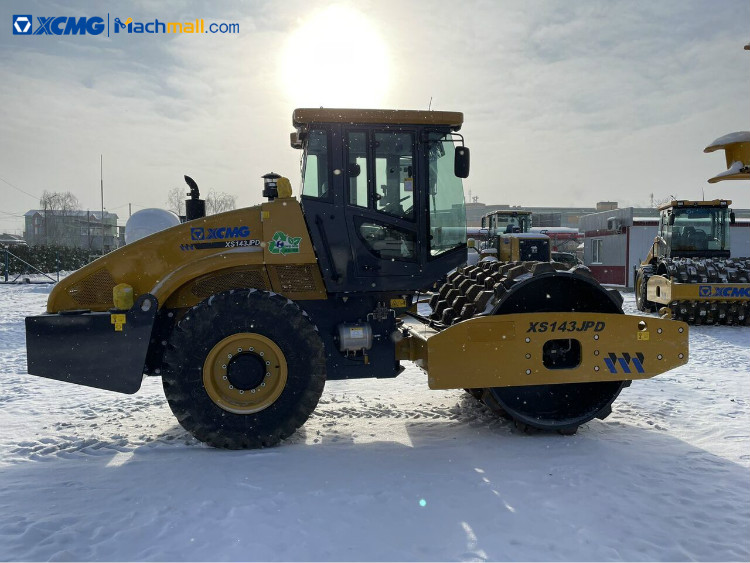

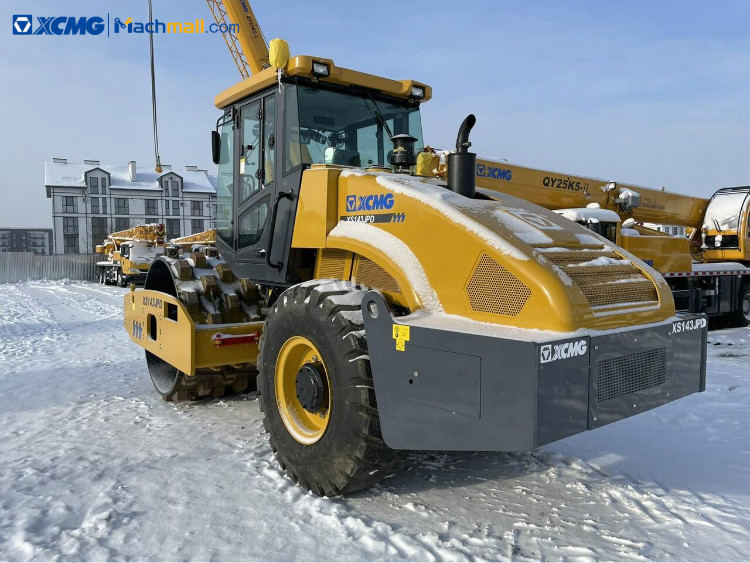

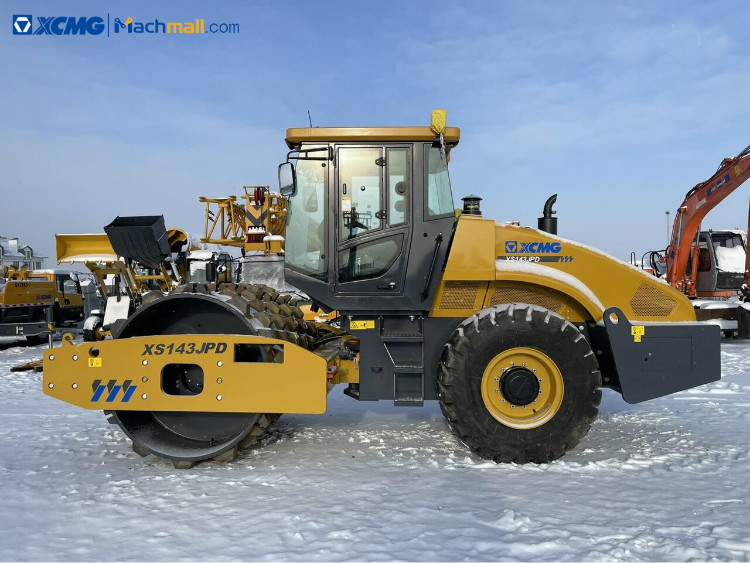

XCMG 14 tons single drum vibratory road roller machine XS143JPD.
XCMG 14 tons single drum vibratory road roller machine XS143JPD has a very high static line load and vibration force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc.
XS143JPD road roller machine is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
1, Diesel engine has a large power reserve and has the function of energy saving and noise reduction.
2, Double frequency and double amplitude can meet the requirements of different working conditions.
3, Its control mode is electronic control. Guarantee the demand of vibration parameter and reliability of vibration system.
4, Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction efficiency.
5, Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.
6, Main clutch uses the heavy-duty special clutch which is the dry type normally combined friction clutch with a reliable performance and good maintainability.
7, Clutch is directly installed on the engine flywheel, and the operation mechanism of main clutch is the air assisted mechanism which greatly reduces the operating force.
|
ltem |
|
Unit |
XS143J |
|
Service mass |
|
kg |
14000 |
|
Distributed mass of driving wheel |
|
kg |
7300 |
|
Distributed mass of vibration wheel |
|
kg |
6700 |
|
Static line load |
|
N/cm |
315 |
|
Vibration frequency |
|
Hz |
28/33 |
|
Theoretical amplitude |
|
mm |
1.9/0.95 |
|
Exciting force |
|
kN |
274/190 |
|
Range of speed （Forward） |
I |
km/h |
2.85 |
|
|
II |
km/h |
5.08 |
|
|
III |
km/h |
11.17 |
|
Range of speed （Backward） |
I |
km/h |
2.88 |
|
|
II |
km/h |
5.02 |
|
Wheel base |
|
mm |
3040 |
|
Compaction width |
|
mm |
2130 |
|
Theoretical gradeability |
|
% |
30 |
|
Minimum turn radius |
|
mm |
6800 |
|
Diameter of vibration wheel |
|
mm |
1523 |
|
Minimum ground clearance |
|
mm |
431 |
|
Engine |
|
|
SC4H140.1G2 |
|
Rated speed |
|
r/min |
1800 |
|
Rated power |
|
kW |
103 |
|
Overall dimension |
|
mm |
6150*2300*3200 |
