XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale

  • XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale
  • XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale
  • XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale
  • XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale
  • XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale
  • XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale

Share:
XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale
FOB for Road Mach Reference Price:Get Latest Price
$60000.00-$85000.00 1 / EA (Min. Order)
Model: XD133
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale
XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF
Summary
  • Weight:13000kg
  • Power(W):98kW
  • Model Number:XD133
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Grade Ability:35%
  • Travel Speed:0-12km/h
  • Static Linear Pressure:299N/cm
  • Type:Double Drum Road Roller
  • Certification:CE/ISO9001
Specifications
  • weight:13000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Minimum turning radius:4800/6930mm
  • Exciting force:95/150kN
  • Vibration frequency:55/45Hz
  • Nominal amplitude:0.35/0.8mm
  • Vibration wheel size:1300*2130mm

XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale

XCMG double drum vibration roller 13 ton XD133.



XCMG XD3 Series Intelligent Double Drum Vibratory Road Roller:

XCMG XD3 series intelligent double drum vibratory roller adopts the most advanced intelligent control technology and high-frequency vibration compaction technology in the world, and includes three specifications of 12 tons, 13 tons and 14 tons. The basic models are XD123, XD133, XD143, etc. XD3 series products adopt the 67Hz high-frequency vibration technology developed exclusively, which can achieve effective compaction of thin pavement and bridge decks, and high-speed operation on modified rubber pavements. The compaction is higher and more uniform, and the construction efficiency is increased by 46%.



Highlights of XCMG XD133 Double Drum Vibratory Road Roller:

1. The front and rear frame adopts a frameless structure, which improves the welt compaction performance of the whole machine.

2. The vibrating wheel has a long service life, and the pressure equalization technology is adopted to control the amplitude difference between the left and right vibrating wheels within 3%, effectively ensuring the smoothness of the road.

3. The standard configuration of the power system is Deutz's engine with a rated power of 98kW.

4. Full hydraulic transmission and full electro-hydraulic control technology are all controlled by electrical switches, which is easy to operate.

5. The large-capacity water tank meets the needs of long-term work and reduces the number of water additions. The nozzle adopts a three-stage filter system to prevent the nozzle from clogging.



Market Share of XCMG Road rollers:

XCMG road rollers have maintained the top sales volume in China for 30 consecutive years.

XCMG's large-tonnage road rollers has the largest sales volume in the world.

XCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale

Parameter
Unit
XD133
Weight distribution
Working weight
kg
13000
Front wheel distribution weight
6500
Rear wheel distribution weight
6500
Maneuverability
Speed range
km/h
0-6 / 0-12
Theoretical gradeability
%
35
Minimum turning radius (in/out)
mm
4800/6930
Largest amount of crab
mm
±160
Swing angle
°
±8°
Steering angle
°
±35°
Compaction performance
Static linear load
N/cm
299/299
Nominal amplitude
mm
0.35/0.80
Vibration frequency
Hz
55/45
Exciting force (high frequency/low frequency)
kN
95/150
Engine
rated power
kw
98
rated speed
r/min
2300

XCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale



uMore xcmg double drum rollers



XCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for saleXCMG double drum vibration roller 13 ton XD133 with pdf catalog for sale

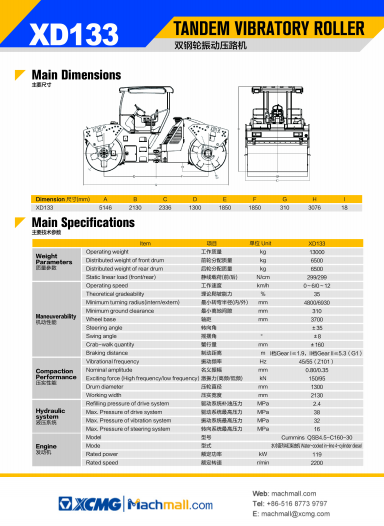

Product Catalog
Send your message to this supplier
Email:
to:
XCMG E-commerce Inc.
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
back to top
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
