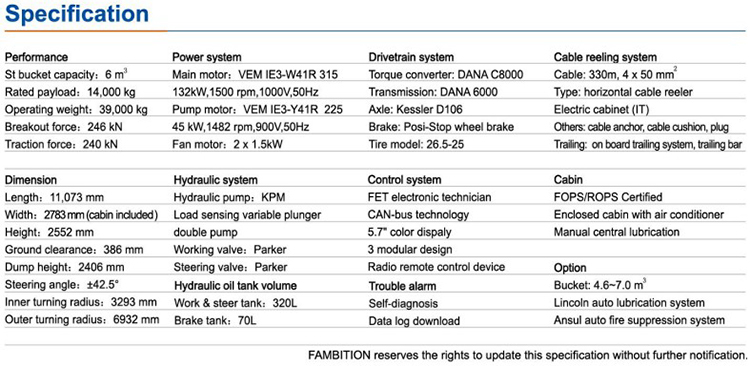

- Optional bucket:4.6-7.0m³

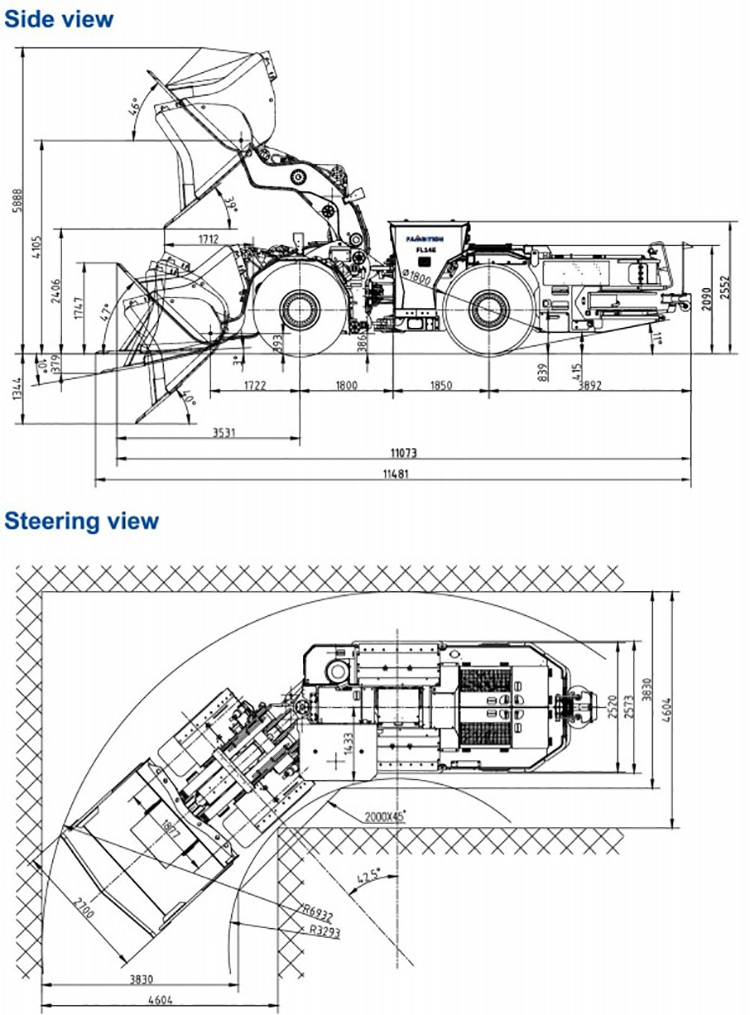

- Dump height:2406mm
- Brake tank:70L
- steering angle:±42.5°

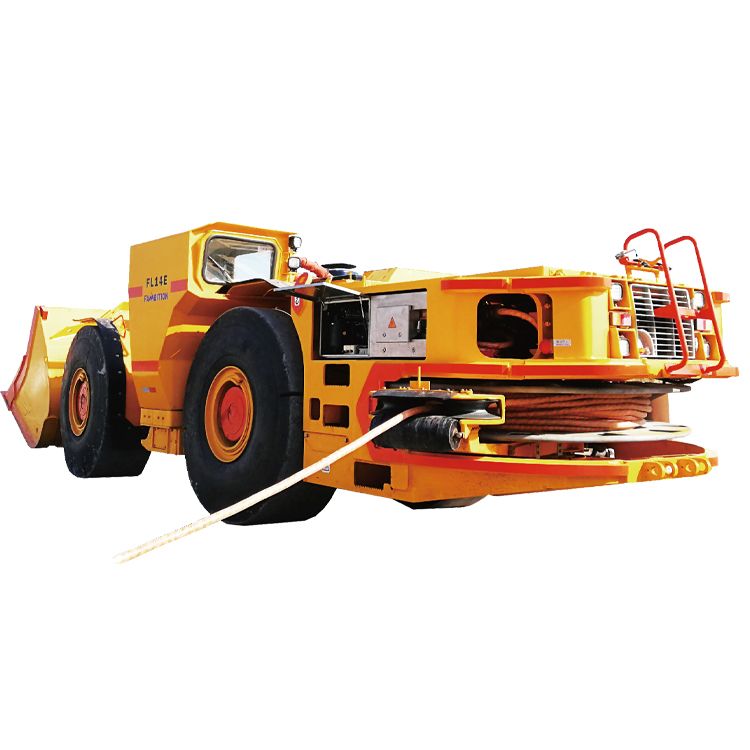

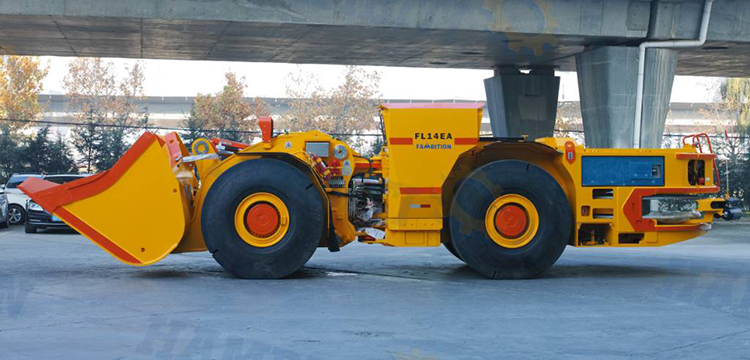

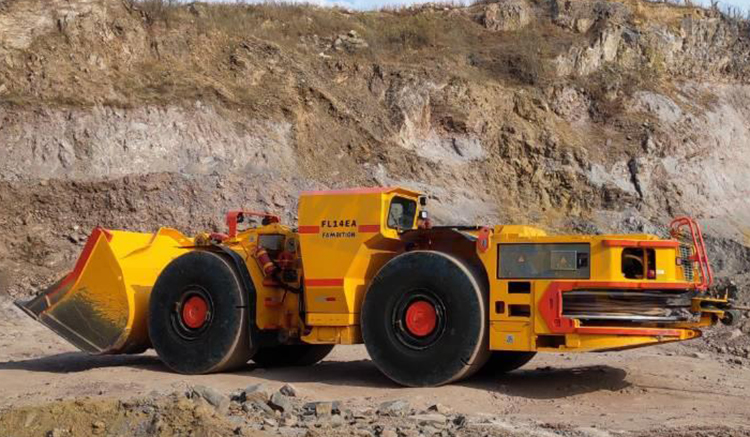

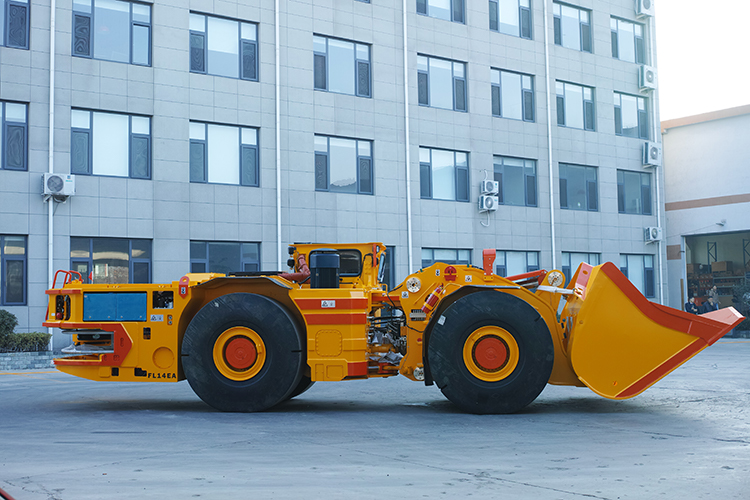

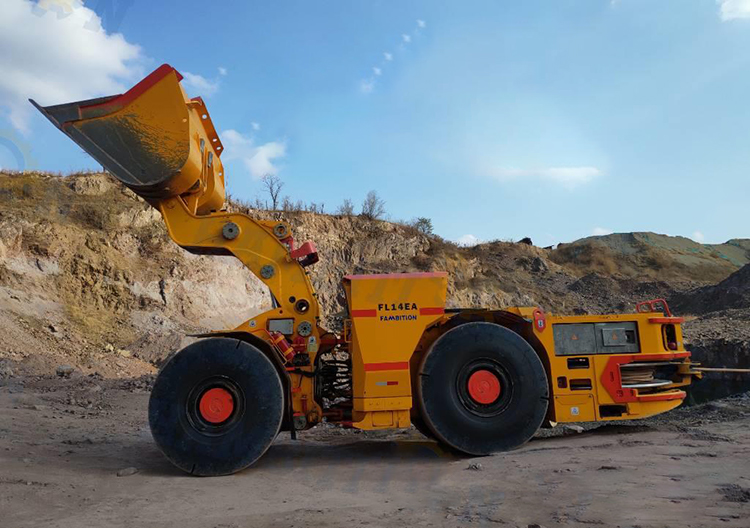

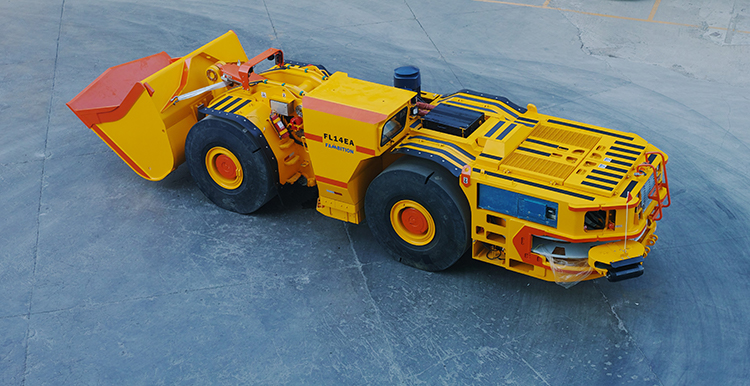

Fambition FL14E underground scooptram loader for mining.
Fambition FL14E underground scooptram loader for mining is an electric LHD designed for large scale underground metal mines production payload 14 mt.
FL14E is an optimized load-haul solution to large scale mining.
FL14E has a horizontal cable reeling system that enables the loader to pass power supply box without turning and can travel flexibly. The electric cabinet could protect personnel and equipment from all electricity danger. Trailing system gives an easier transfer between different stopes.
FL14E has an EHC variable hydraulic system and constant tension sensing cable-reel control system. The real time operating parameters and state can showed on board, including self-diagnostics. Standard stadia remote control system, auto lubrication system and Ansul auto fire suppression system are optional for the loader.
